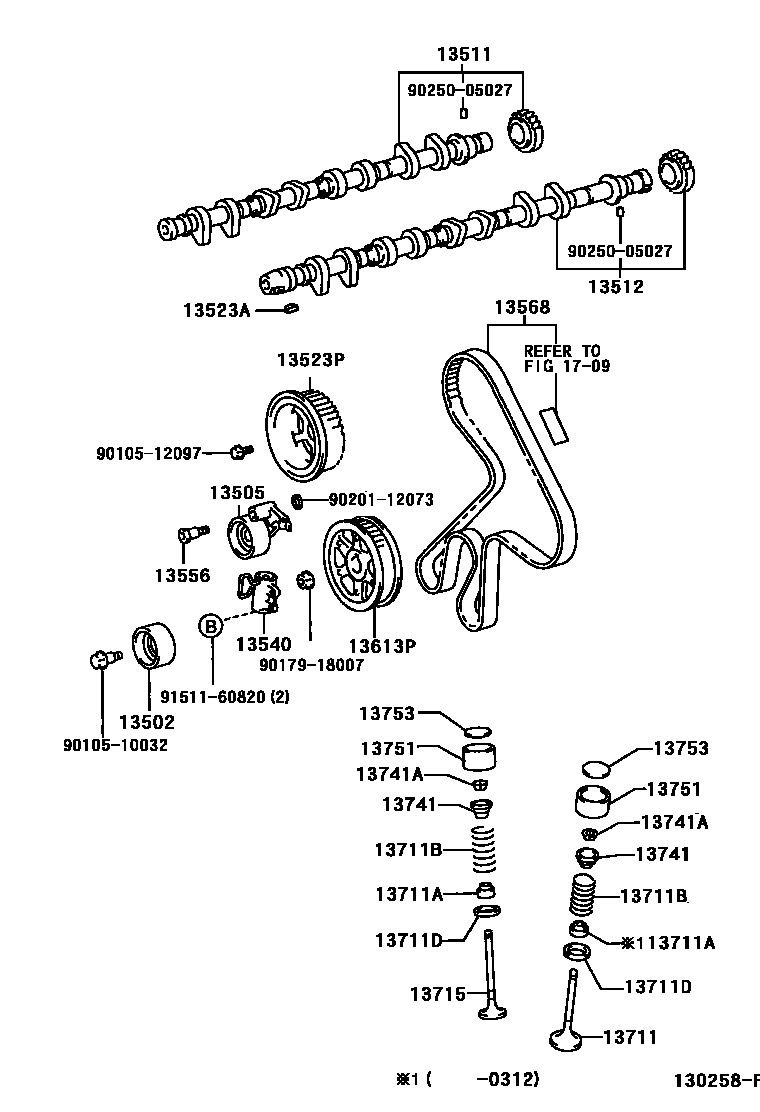

CAMSHAFT & VALVE
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
13613PPULLEY, INJECTION PUMP DRIVE
13711VALVE, INTAKE
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
NO.2
NO.1
13711BSPRING, COMPRESSION(FOR INNER)
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.06
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.70
T=5.72
T=5.74
13753SHIM, VALVE ADJUSTING
T=2.500
T=2.550
T=2.600
T=2.650
T=2.700
T=2.750
T=2.800
T=2.850
T=2.900
T=2.950
T=3.000
T=3.050
T=3.100
T=3.150
T=3.200
T=3.250
T=3.300
1709
9010510032
main90105-10032
9010512097
main90105-12097
9017918007
main90179-18007
9020112073
main90201-12073
9025005027
main90250-05027
9151160820
main91511-60820
27 parts on this diagram · 2 diagrams in section
