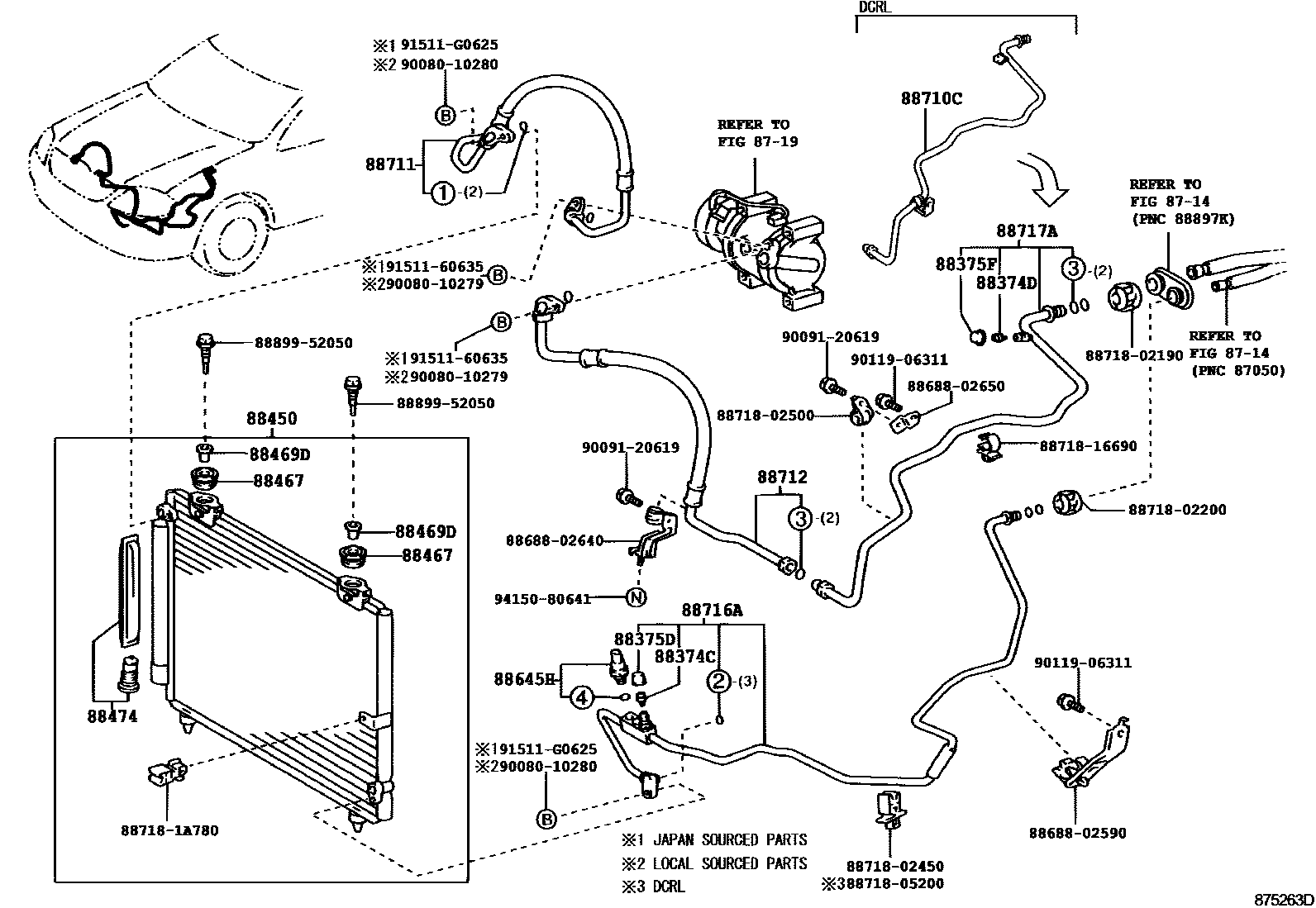

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1DEALER OPTION 0003 1DEALER OPTION 0004 1MAKER OPTION 0005 1DEALER OPTION 0006 1DEALER OPTION 0007 1MAKER OPTION 0008 1MAKER OPTION 0009 1DEALER OPTION 0010 1DEALER OPTION 0011 1MAKER OPTION 0012 1MAKER OPTION 0013 1MAKER OPTION 0014 1MAKER OPTION 0015 1DEALER OPTION 0016 1DEALER OPTION 0017 1DEALER OPTION 0018 1DEALER OPTION 0019 1O-RING

8714

8719

88374CVALVE, SERVICE, NO.2

main88374-30010iCDE120,ZZE12#..UKP..LHD..(DCR,HTWC,TWC)200111-200301

88374DVALVE, SERVICE NO.3

main88374-30010iCDE120..UKP..RHD200111-200405

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iCDE120,NDE120,ZZE12#..UKP200111

88375FCAP, SERVICE VALVE, NO.3

main88375-30290iCDE120..UKP..RHD200301-200405

88450CONDENSER ASSY, W/RECEIVER

main88450-02140iCDE120,ZZE12#..UKP..RHD200111-200405

main88450-02150iCDE120,ZZE12#..UKP..LHD200111-200405

main88450-02240iCDE120,NDE120,ZZE12#..UKP200405

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12180iCDE120,ZZE12#..UKP¥0200111-200511

88469DCOLLAR, CONDENSER BRACKET, NO.1

main88469-52010iCDE120,ZZE12#..UKP¥0200111-200511

88474DRYER, COOLER

main88474-17010iCDE120,ZZE12#..UKP200111-200405

main88474-47010iCDE120,NDE120,ZZE12#..UKP200405

88645HSWITCH, PRESSURE NO.1

main88645-60030iCDE120,ZZE12#..UKP..RHD200111-200405

88710TUBE ASSY, AIR CONDITIONER

main88710-02480iCDE120,ZZE12#..UKP..LHD200301-200405

main88710-02610iCDE120,NDE120,ZZE12#..UKP..RHD200405

main88710-02620iCDE120,NDE120,ZZE12#..UKP..LHD200405

88710CTUBE ASSY, AIR CONDITIONER

main88710-02540iCDE120..UKP..RHD..DCRL200304-200405

main88710-02630iNDE120..UKP..RHD200408

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-02090iZZE12#..UKP200111-200301

main88703-02090iZZE120,121..UKP200301-200405

DEALER OPTION

main88703-02100iCDE120..UKP200111-200301

main88703-02100iCDE120..UKP..LHD..DCRL;CDE120..UKP..(DCR,HDCR)200301-200405

DEALER OPTION

main88703-02170iZZE12#..UKP200301-200405

MAKER OPTION

main88703-02180iCDE120..UKP200301-200405

MAKER OPTION

main88703-02190iNDE120..UKP200408

main88703-02240iZZE12#..UKP200405

main88703-02250iCDE120..UKP200405

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-02360iCDE120..UKP..RHD200405

main88704-02390iZZE12#..UKP..RHD200405

main88704-02400iNDE120..UKP..RHD200408

main88704-02420iNDE120..UKP..LHD200408

main88704-02531iZZE12#..UKP..LHD..(SOL,TSP)200405-200410

main88704-02561iCDE120..UKP..LHD..SOL200405-200410

main88712-02180iZZE12#..UKP..RHD200111-200405

main88712-02190iCDE120..UKP..RHD..(DCR,HDCR)200111-200405

main88712-02200iZZE12#..UKP..LHD200111-200405

main88712-02210iCDE120..UKP..LHD200111-200405

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-02580iCDE120,ZZE120,121..UKP..RHD200301-200405

DEALER OPTION

main88710-02600iCDE120..UKP..RHD..DCRL200304-200405

DEALER OPTION

main88710-02730iCDE120,NDE120,ZZE120,121..UKP..RHD..TERRA200405

main88716-02280iCDE120,ZZE12#..UKP..RHD200111-200301

MAKER OPTION

main88716-02300iCDE120,ZZE12#..UKP..LHD200111-200301

MAKER OPTION

main88716-02330iCDE120,ZZE120,121..UKP..LHD200111-200301

DEALER OPTION

main88716-02370iCDE120,ZZE120,121..UKP..RHD200111-200301

DEALER OPTION

main88716-02470iCDE120..UKP..RHD..DCRL200304-200405

MAKER OPTION

main88716-02480iCDE120,ZZE12#..UKP..RHD..(DCR,HTWC,TWC)200301-200405

MAKER OPTION

main88716-02710iCDE120,NDE120,ZZE12#..UKP..LHD200405

88717PIPE, COOLER REFRIGERANT SUCTION, NO.1

main88707-05040iCDE120..UKP..RHD..TERRA200405

main88717-02140iCDE120..UKP..RHD200111-200405

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88710-02740iNDE120..UKP..RHD200408

main88717-02130iCDE120..UKP..RHD200111-200301

MAKER OPTION

main88717-02170iCDE120..UKP..RHD..(DCR,HDCR)200301-200405

main88717-05230iCDE120..UKP..RHD..TERRA200405

8868802590BRACKET, COOLER DIAPHRAGM

main88688-02590

8868802640BRACKET, COOLER DIAPHRAGM

main88688-02640

8868802650BRACKET, COOLER DIAPHRAGM

main88688-02650

8871802190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02190¥1,160

8871802200PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02200¥780

8871802450PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02450¥260

8871802500PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-02500

8871805200PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-05200

8871816690PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-16690

887181A780PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A780

8889952050COVER, EVAPORATOR

main88899-52050

9008010279

main90080-10279

9008010280

main90080-10280¥60

9009120619

main90091-20619¥0

9011906311

main90119-06311¥100

9151160635

main91511-60635¥120

91511G0625

main91511-G0625¥0

9415080641

main94150-80641¥110

36 parts on this diagram · 19 diagrams in section
