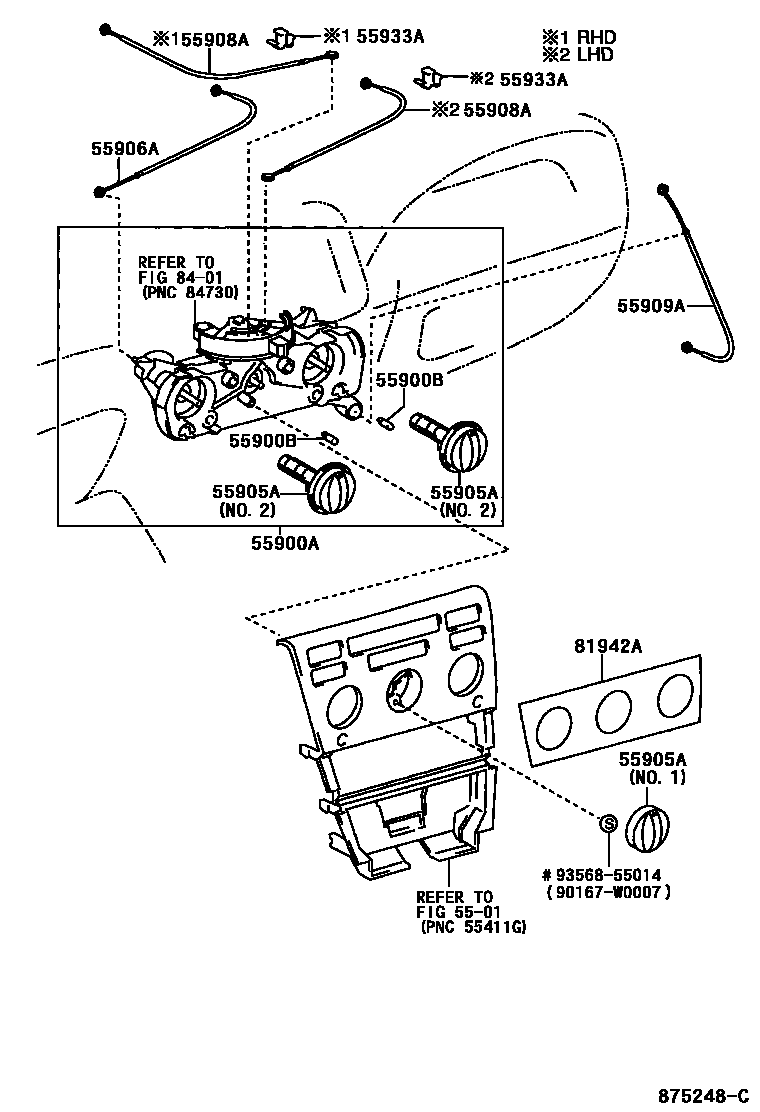

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0003 1CONTROL PANEL--PUSH TYPE 0004 1AIR DUCT 0005 1AIR DUCT 0006 1SENSOR 0007 1SENSOR

5501

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-02140iCDE120,ZZE120,121..UKP..TERRA200405-200408

sub55900-02141

main55900-02141iCDE120,NDE120,ZZE120,121..UKP..TERRA200408

main55900-02180iCDE120,ZZE120,121..UKP200111-200404

sub55900-02181

55900BBULB, AIR CONDITIONER CONTROL

main90010-05135iCDE120,ZZE120,121..UKP..SOL¥540200111-200405

14V 0.91W

main90010-05137iCDE120,NDE120,ZZE120,121..UKP..(SOL,TSP)¥540200111-200405

14V 1.12W,T=4.8

main90010-05138iCDE120,ZZE12#..UKP..(SOL,TSP)¥540200111-200405

14V 1.12W,T=4.2

main90010-05139iCDE120,ZZE120,121..UKP..SOL¥540200111-200405

14V 1.4W

main90010-05148iZZE123..UKP200405

14V 1.12W,T=4.8

main90010-05149iZZE123..UKP¥540200405

14V 1.12W,T=4.2

main90010-05150iZZE123..UKP200405

14V 1.4W

main90069-98005iCDE120,ZZE120,121..UKP..TERRA¥140200111-200407

sub90981-WB011

main90981-WB011iCDE120,NDE120,ZZE120,121..UKP..TERRA200408

55905AKNOB, HEATER CONTROL

main55905-02160iCDE120,ZZE120,121..UKP200111-200405

NO.1

main55905-02270iCDE120,NDE120,ZZE120,121..UKP..TERRA200111-200404

NO.2

main55905-0F030iCDE120,NDE120,ZZE120,121..UKP..TERRA200405

NO.1

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-02050iCDE120..RHD..3D;ZZE121..RHD..3D..SOL;CDE120..RHD..5D..(DCR,HDCR)200111-200405

main55906-02060iCDE120..LHD..(DCR,HDCR);ZZE121..LHD..3D..4FC..TERRA200111-200405

main55906-02110iCDE120,NDE120,ZZE120,121..UKP..RHD..TERRA200405

main55906-02120iCDE120,NDE120,ZZE120,121..UKP..LHD..TERRA200405

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-02050iZZE120..RHD;ZZE121..RHD..TERRA;ZZE121..RHD..5D..SOL;CDE120..RHD..5D..DCRL200111-200405

main55908-02060iCDE120..LHD..(DCR,HDCR);ZZE121..LHD..3D..4FC..TERRA200111-200405

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-02050iZZE120;ZZE121..5D..SOL;CDE120..5D..DCRL;ZZE121..RHD..TERRA;ZZE121..LHD..3D..SOL;CDE120..LHD..3D..DCRL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA200111-200405

main55909-02080iCDE120,NDE120,ZZE120,121..UKP..TERRA200405

55933ACLAMP, HEATER CONTROL CABLE

main55933-0D010iZZE121..LHD..SOL;ZZE121..LHD..5F..TERRA;ZZE121..LHD..5D..4FC..TERRA;CDE120,ZZE120..LHD..(DCRL,HTWC)200111-200405

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-02190iCDE120,ZZE120,121..UKP200111-200405

main81942-12640iCDE120,ZZE120,121..UKP..SOL¥1,360200111-200504

W(AUTO AIR CONDITIONER)

sub81942-12810¥1,390

8401

90167W0007

main90167-W0007¥110

9356855014

main93568-55014¥70

12 parts on this diagram · 7 diagrams in section
