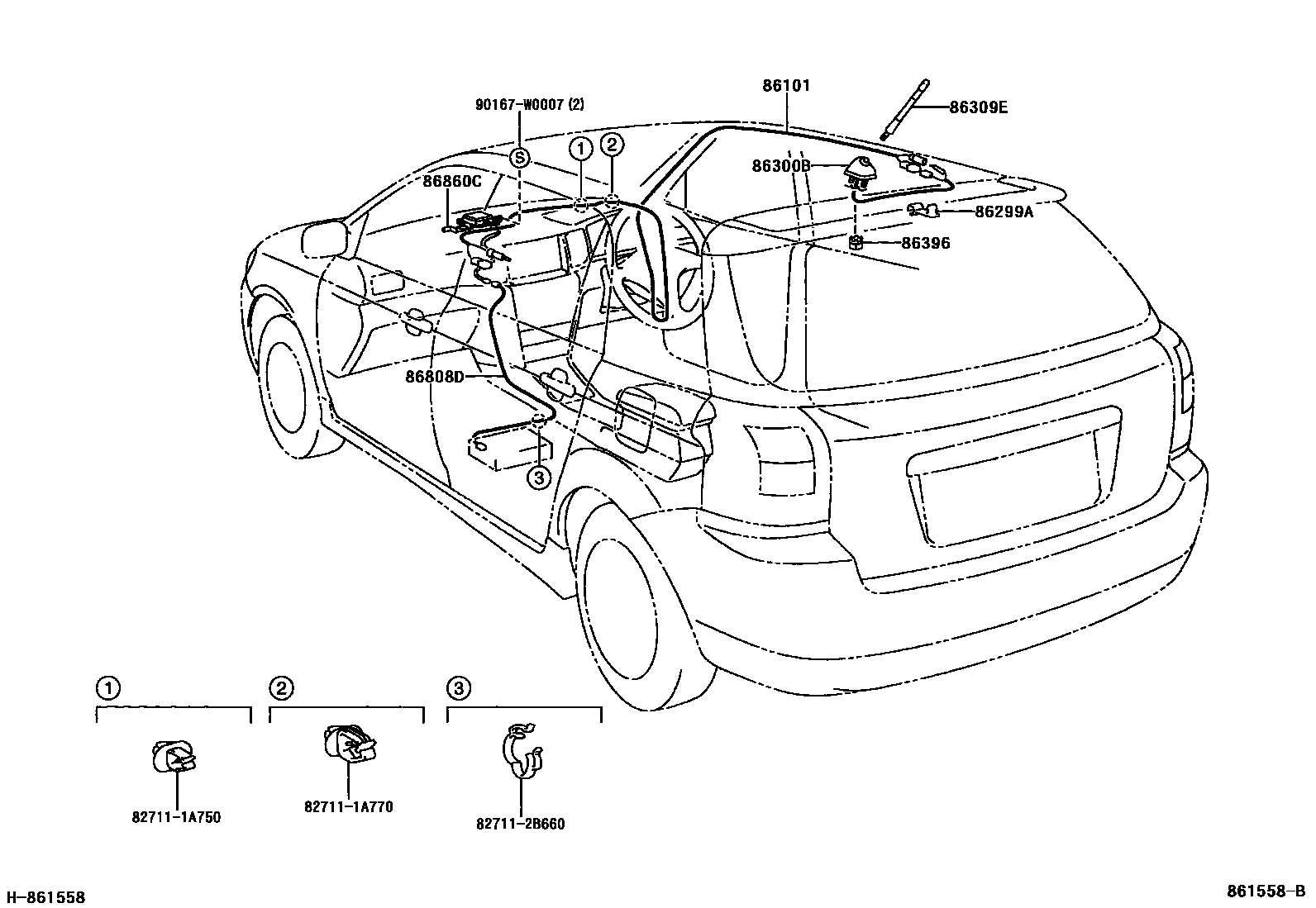

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-02060iCDE120,ZZE12#..UKP200111-200405

main86101-12340iCDE120,ZZE121,123..UKP200111-200508

W(MAP NAVIGATION SYSTEM)

86299ACLIP, RADIO TO ANTENNA WIRE

main86299-12010iCDE120,NDE120,ZZE12#..UKP200111-200405

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-02070iCDE120,ZZE12#..UKP200111-200504

sub86300-02071

main86300-02071iCDE120,NDE120,ZZE12#..UKP200505

main86300-12750iCDE120,ZZE121,123..UKP200111-200508

W(MAP NAVIGATION SYSTEM)

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-02040iCDE120,NDE120,ZZE12#..UKP200111-200405

main86309-13010iCDE120,ZZE121,123..UKP200111-200508

W(MAP NAVIGATION SYSTEM)

86396NUT, ANTENNA

main86396-02020iCDE120,NDE120,ZZE12#..UKP200111-200405

main86396-12030iCDE120,ZZE121,123..UKP200111-200508

W(MAP NAVIGATION SYSTEM)

86808DCORD SUB-ASSY, NAVIGATION ANTENNA

main86808-13010iCDE120,ZZE121,123..UKP200111-200405

W(MAP NAVIGATION SYSTEM)

main86808-13020iCDE120,ZZE12#..UKP200111-200510

W(TURN BY TURN NAVIGATION SYSTEM)

86860CANTENNA ASSY, NAVIGATION

main86860-12030iCDE120,NDE120,ZZE12#..UKP..(SOL,TSP)200405

W(MAP NAVIGATION SYSTEM)

main86860-13030iCDE120,ZZE12#..UKP200111-200405

sub86860-12050

main86860-13030iNDE120,ZZE123..UKP..TSP;CDE120,ZZE120,121..UKP..LHD..SOL200405-200510

W(TURN BY TURN NAVIGATION SYSTEM)

sub86860-12050

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

90167W0007

main90167-W0007

11 parts on this diagram · 1 diagram in section
