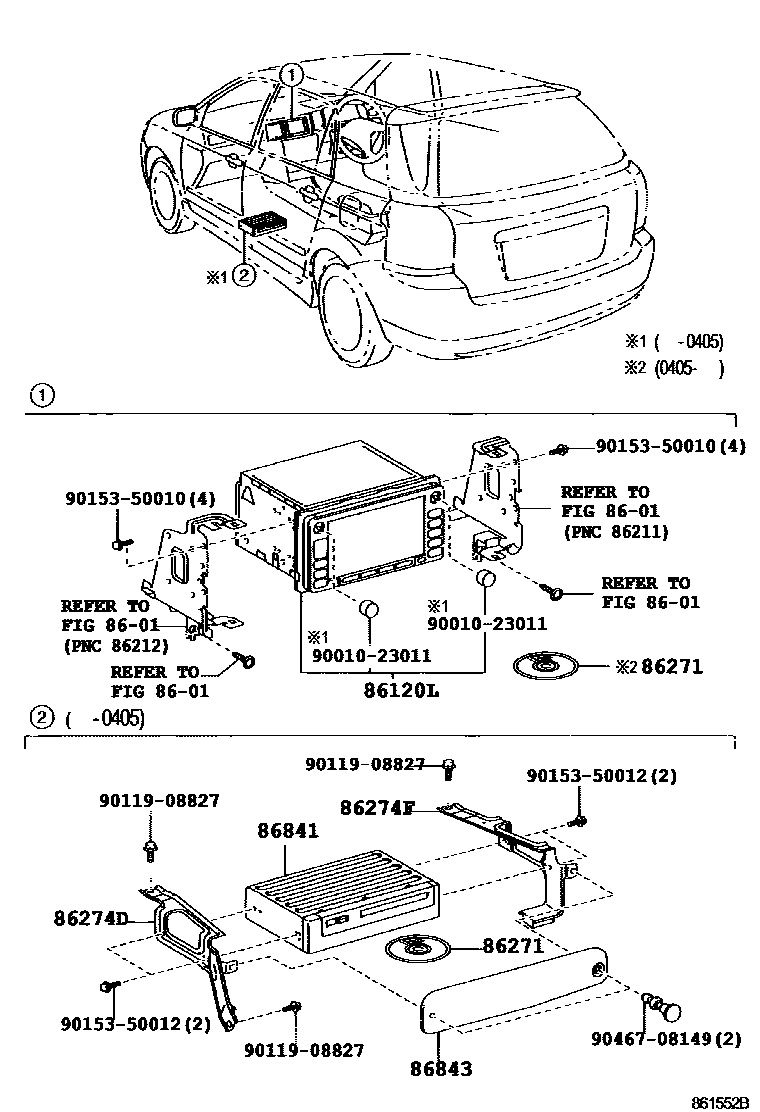

NAVIGATION & FRONT MONITOR DISPLAY

8601

86120LRECEIVER ASSY, NAVIGATION

main86120-1A200iCDE120,NDE120,ZZE12#..UKP..(SOL,TSP)200405-200608

AISHIN AW

main86120-33420iCDE120,ZZE121,123..UKP200111-200301

FUJITSU TEN,ID=19001

sub86120-33421

main86120-33421iCDE120,ZZE121,123..UKP200301-200405

FUJITSU TEN,ID=19003

86271DISC, DISC PLAYER

main86271-24120iCDE120,ZZE121,123..UKP200111-200212

sub86271-24121

main86271-24121iCDE120,ZZE121,123200212-200309

sub86271-24122

main86271-24122iCDE120,ZZE121,123200309-200401

sub86271-24123

main86271-24123iCDE120,ZZE121,123..UKP200401-200405

sub86271-24124

main86271-53030iCDE120,NDE120,ZZE12#..UKP..(SOL,TSP)200507-200608

sub86271-53031

main86271-53031iCDE120,NDE120,ZZE12#..UKP..(SOL,TSP)200609

main86271-64011iCDE120,ZZE12#..UKP..(SOL,TSP)200405-200408

sub86271-64012

main86271-64012iCDE120,NDE120,ZZE12#..UKP..(SOL,TSP)200408-200507

sub86271-53030

86274DBRACKET, DISC PLAYER

main86274-13030iCDE120,ZZE12#..UKP200111-200405

86274FBRACKET, DISC PLAYER, NO.2

main86274-13040iCDE120,ZZE12#..UKP200111-200405

86841COMPUTER, NAVIGATION

main86841-13020iCDE120,ZZE121,123..UKP200111-200405

86843COVER, NAVIGATION COMPUTER

main86843-32010iCDE120,ZZE12#..UKP200111-200405

9001023011

main90010-23011

9011908827

main90119-08827

9015350010

main90153-50010

9015350012

main90153-50012

9046708149

main90467-08149

12 parts on this diagram · 1 diagram in section
