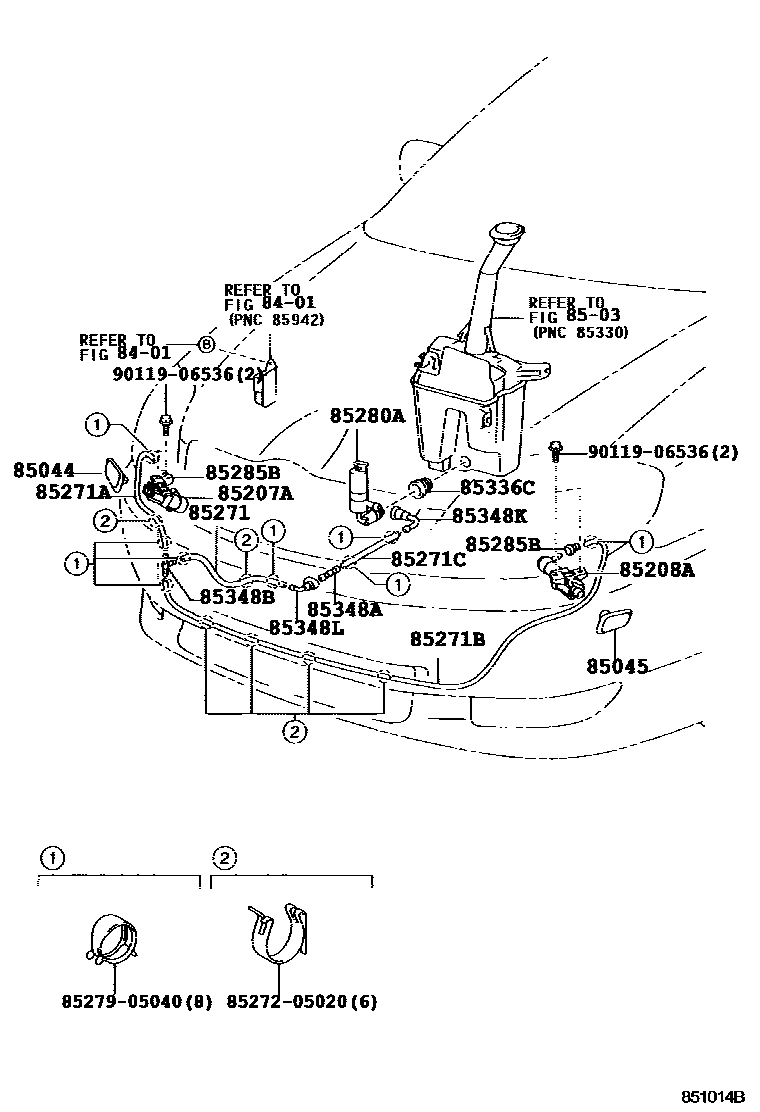

HEADLAMP CLEANER
8401
8503
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
LESS COLOR
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
LESS COLOR
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
L=1950
85271BHOSE, HEADLAMP CLEANER, NO.3
85271CHOSE, HEADLAMP CLEANER, NO.4
sub85271-0W030
85285BJOINT, HEADLAMP CLEANER NOZZLE NO.1
85336CPACKING, HEADLAMP CLEANER MOTOR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
8527205020CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-05020
8527905040RELAY ASSY, HEADLAMP CLEANER WASHER
main85279-05040
9011906536
main90119-06536
20 parts on this diagram · 3 diagrams in section
