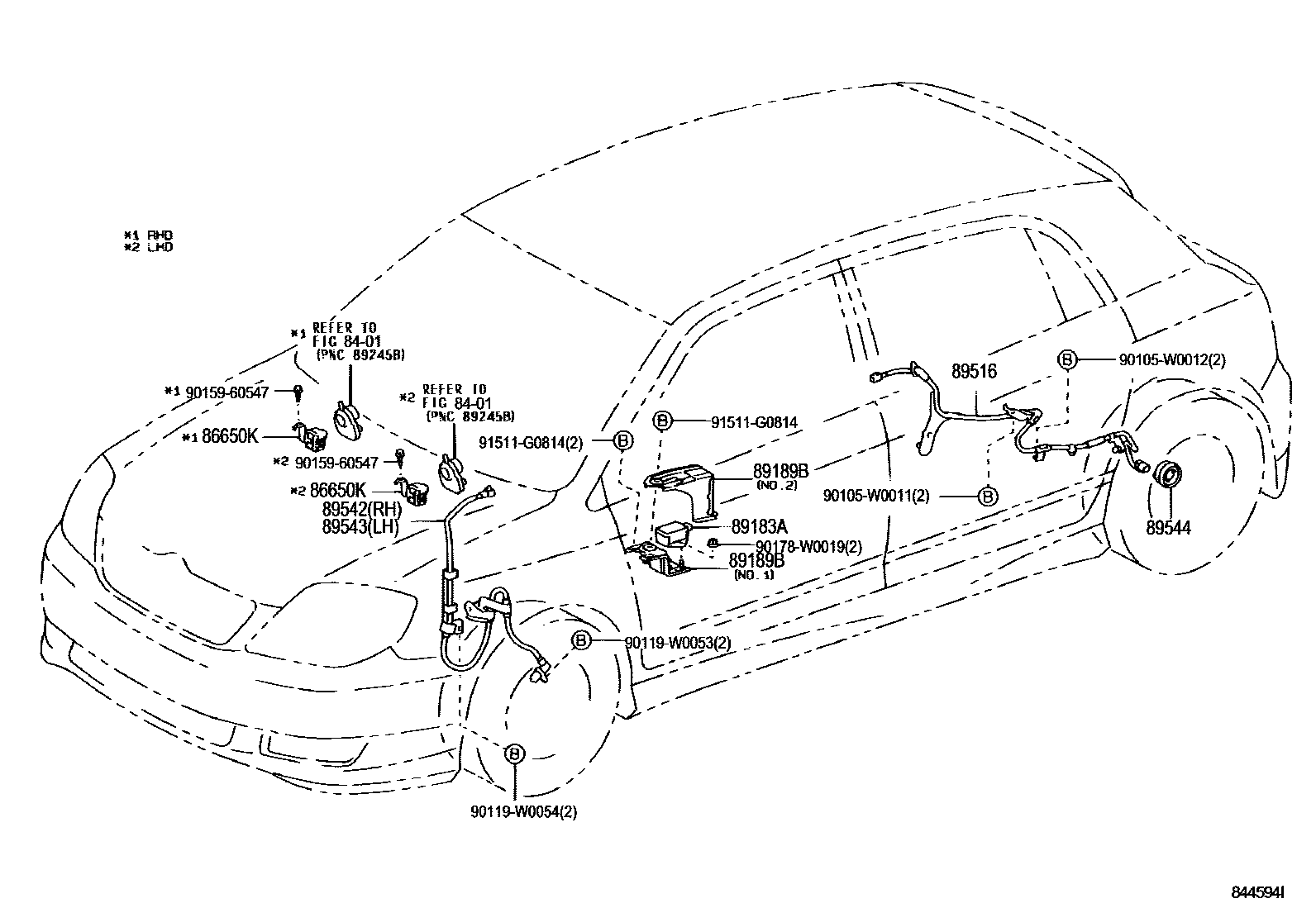

ABS & VSC

0001 1 0002 1

8401

86650KBUZZER ASSY, SKID CONTROL

main86650-13010iCDE120,NDE120,ZZE120,121..UKP..RHD200111-200510

89183ASENSOR, YAWRATE

main89183-02010iZZE121,123..UKP200111-200301

sub89183-05020

main89183-02020iCDE120,NDE120,ZZE120,121..UKP..RHD200405-200510

main89183-05020iZZE121,123..UKP200301-200405

sub89183-02020

89189BBRACKET, YAWRATE SENSOR

main89189-12070iCDE120,NDE120,ZZE120,121..UKP..RHD200405-200510

NO.2

main89189-13010iZZE121,123..UKP200111-200405

NO.1

main89189-13020iZZE121,123..UKP200111-200405

NO.2

main89189-20040iZZE123..UKP;CDE120,NDE120,ZZE120,121..UKP..LHD200405-200510

NO.1

89516WIRE, SKID CONTROL SENSOR

main89516-02010iCDE120,ZZE12#..UKP200111-200405

RH

main89516-02020iCDE120,ZZE12#..UKP200111-200405

LH

89542SENSOR, SPEED, FRONT RH

main89542-02040iCDE120,NDE120,ZZE12#..UKP200405

main89542-02040iCDE120,ZZE12#..UKP200111-200405

BOSCH

main89542-12070iCDE120,ZZE12#..UKP200111-200405

DENSO

89543SENSOR, SPEED, FRONT LH

main89543-02040iCDE120,ZZE12#..UKP200111-200405

BOSCH

main89543-02040iCDE120,NDE120,ZZE12#..UKP200405

main89543-12070iCDE120,ZZE12#..UKP200111-200405

DENSO

89544SENSOR, SKID CONTROL

main89544-02010iCDE120,ZZE12#..UKP200111-200702

90105W0011

main90105-W0011

90105W0012

main90105-W0012

90119W0053

main90119-W0053

90119W0054

main90119-W0054

9015960547

main90159-60547

90178W0019

main90178-W0019

91511G0814

main91511-G0814

15 parts on this diagram · 2 diagrams in section
