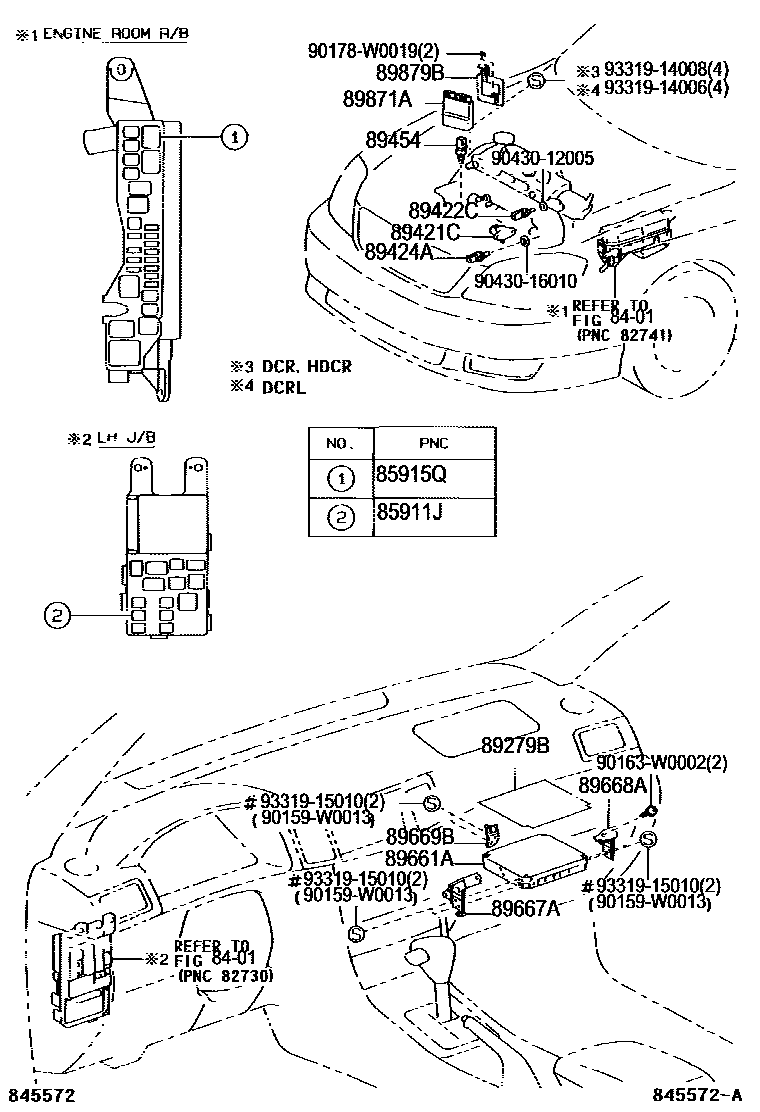

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8401

85911JRELAY ASSY, CIRCUIT OPENING (FOR ECD)

main90080-87019iCDE120..UKP200111-200405

sub90080-87021

85915QRELAY, COMPUTER (FOR DIESEL)

main90080-87019iCDE120..UKP200111-200405

sub90080-87021

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-12150iCDE120..UKP200111-200405

main89279-12160iCDE120..UKP200405

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89420-12210iNDE120..UKP200408-200702

main89421-20210iCDE120..UKP..(DCR,DCRL)200111-200702

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iNDE120..UKP200408

main89422-35010iCDE120..UKP200111-200405

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-60010iCDE120..UKP200111-200405

89454SENSOR, FUEL TEMPERATURE

main89454-20010iCDE120..UKP200509-200702

main89454-60010iCDE120..UKP..HDCR200111-200508

89661ACOMPUTER, ENGINE CONTROL

main89601-02010iNDE120..UKP..5FS200408

sub89601-02011

main89601-02020iNDE120..UKP..5F200408

sub89601-02021

main89661-02A60iCDE120..UKP200405-200503

main89661-02A61iCDE120..UKP200504-200611

sub89661-02A62

main89661-02A62iCDE120..UKP200612

main89661-0Z050iCDE120..UKP..DCR200305-200405

PART NUMBER LABEL=89661-0Z050

main89661-0Z060iCDE120..UKP..DCRL200304-200405

PART NUMBER LABEL=89661-0Z060

main89666-02110iCDE120..DCR200111-200305

main89666-02120iCDE120..UKP..HDCR200111-200304

main89666-02310iCDE120..UKP..DCR200305-200405

PART NUMBER LABEL=89666-02310

sub89666-02311

main89666-02320iCDE120..UKP..DCRL200304-200405

PART NUMBER LABEL=89666-02320

sub89666-02321

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-02090iCDE120,NDE120..UKP..LHD200405

main89667-02100iCDE120,NDE120..UKP..RHD200405

main89667-12190iCDE120..UKP..LHD200111-200405

main89667-13150iCDE120..UKP..RHD200111-200405

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-02040iCDE120,NDE120..UKP..LHD200405

main89668-02050iCDE120,NDE120..UKP..RHD200405

main89668-13060iCDE120..UKP..RHD200111-200405

main89668-13090iCDE120..UKP..LHD200111-200405

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-02020iCDE120,NDE120..UKP..LHD200405

main89669-02030iCDE120,NDE120..UKP..RHD200405

main89669-12030iCDE120..UKP200111-200405

89871ADRIVER, INJECTOR

main89871-20030iCDE120..UKP..(DCR,HDCR)200111-200405

main89871-20050iCDE120..UKP..DCRL200304-200405

89879BBRACKET, INJECTOR DRIVER

main89879-13010iCDE120..UKP..(DCR,HDCR)200111-200405

main89879-20130iCDE120..UKP..DCRL200304-200405

90159W0013

main90159-W0013

90163W0002

main90163-W0002

90178W0019

main90178-W0019

9043012005

main90430-12005

9043016010

main90430-16010

9331914006

main93319-14006

9331914008

main93319-14008

9331915010

main93319-15010

22 parts on this diagram · 6 diagrams in section
