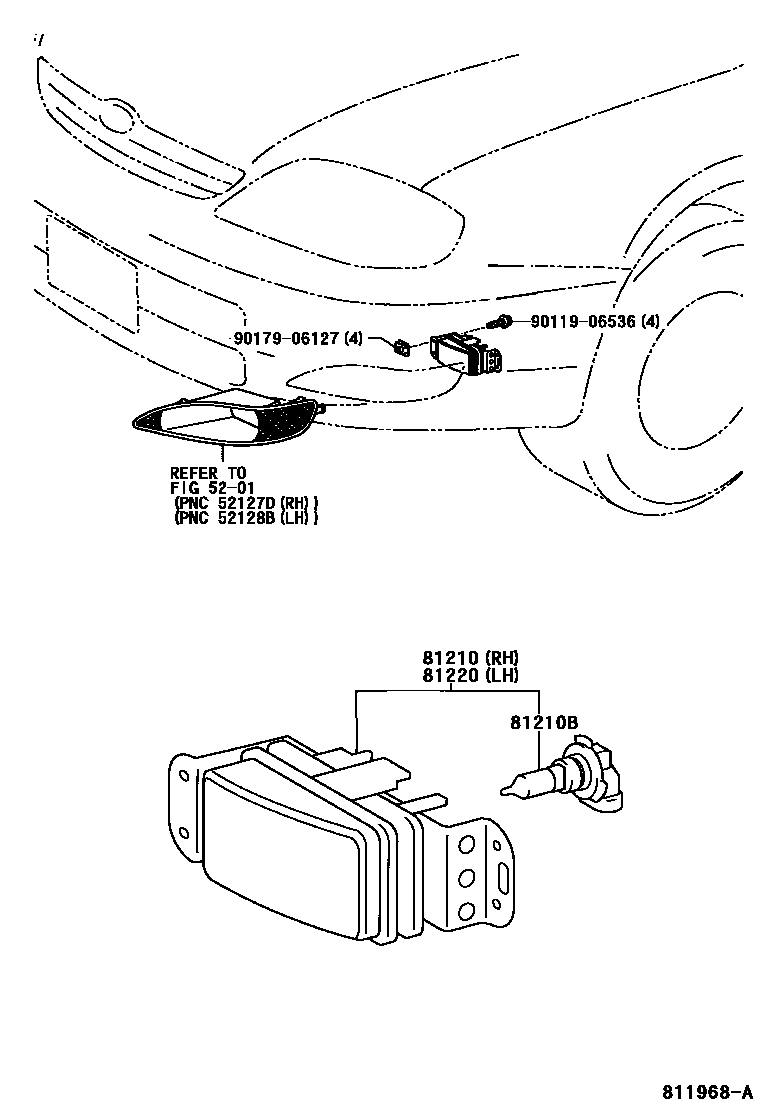

FOG LAMP

0001 1 0002 1

5201

81210LAMP ASSY, FOG

main81210-02050iCDE120,ZZE12#..UKP..(DCR,HTWC,TWC)200111-200209

sub81210-02051

main81210-02051iCDE120,ZZE12#..UKP..(DCR,HTWC,TWC)200209-200405

main81210-02090iCDE120,NDE120,ZZE12#..UKP200405-200702

81210BBULB, FOG LAMP

main90080-81100iCDE120,ZZE12#..UKP..(DCR,HTWC,TWC)200204-200405

main90080-81101iCDE120,ZZE12#..UKP..(DCR,HTWC,TWC)200111-200204

sub90080-81100

main90981-13075iCDE120,NDE120,ZZE12#..UKP200511-200702

12V 55W,HALOGEN,PHILIPS

main90981-13081iCDE120,NDE120,ZZE12#..UKP200511-200702

12V 55W,HALOGEN,OSRAM

main90981-WD011iCDE120,NDE120,ZZE12#..UKP200405-200511

12V 55W,OSRAM

sub90981-13075

main90981-WD012iCDE120,NDE120,ZZE12#..UKP200405-200511

12V 55W,PHILIPS

sub90981-13081

81220LAMP ASSY, FOG, LH

main81220-02050iCDE120,ZZE12#..UKP..(DCR,HTWC,TWC)200111-200209

sub81220-02051

main81220-02051iCDE120,ZZE12#..UKP..(DCR,HTWC,TWC)200209-200405

main81220-02090iCDE120,NDE120,ZZE12#..UKP200405-200702

9011906536

main90119-06536

9017906127

main90179-06127

6 parts on this diagram · 2 diagrams in section
