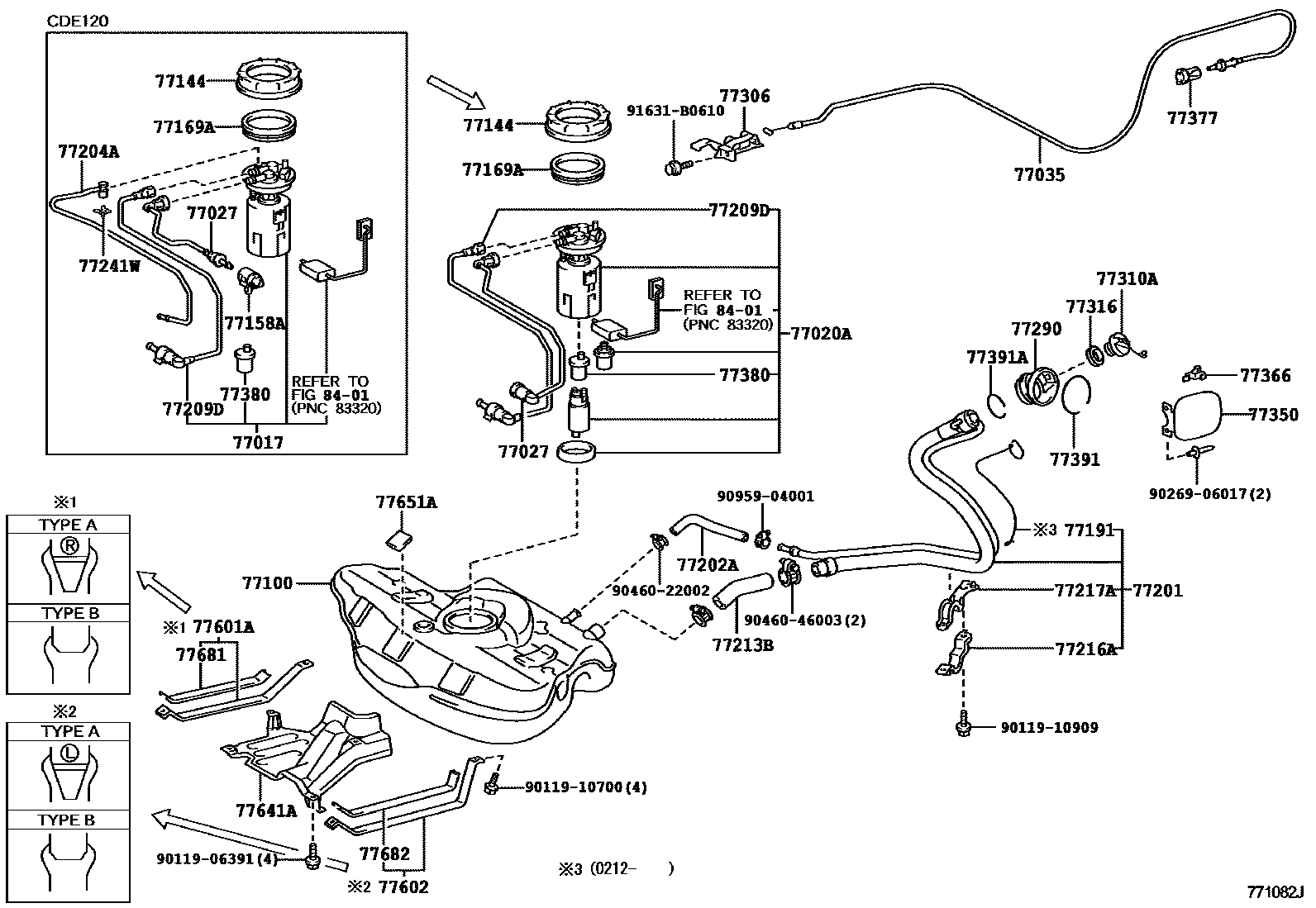

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL TUBE 0004 1FUEL TANK 0005 1FUEL TUBE 0006 1FUEL TUBE

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77010-02040iCDE120,NDE120..UKP200111-200405

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-02070iZZE120,121..UKP200111-200405

sub77020-02071

main77020-02080iZZE123..UKP;ZZE120,121..UKP..LHD¥74,300200111-200701

INFERIOR GASOLINE SPEC

sub77020-02081

main77020-02081iZZE123..UKP;ZZE120,121..UKP..LHD200702

INFERIOR GASOLINE SPEC

sub77020-02082

77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2

main77027-02010iZZE12#..UKP200111-200405

main77027-02020iCDE120..UKP200111-200405

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02080iCDE120,NDE120,ZZE12#..UKP..RHD200111-200606

sub77035-02150

main77035-02090iCDE120,NDE120,ZZE12#..UKP..LHD200111-200606

sub77035-02160

main77035-02150iCDE120,NDE120,ZZE12#..UKP..RHD200607

main77035-02160iCDE120,NDE120,ZZE12#..UKP..LHD200607

77100TANK ASSY, FUEL

main77001-02120iCDE120,ZZE12#..UKP200111-200405

77144RETAINER, FUEL PUMP GAUGE

main77144-02030iCDE120,NDE120,ZZE12#..UKP¥3,590200111-200405

77158ASUPPORT, TANK SUCTION TUBE

main77158-12030iCDE120,NDE120..UKP¥760200111-200405

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02030iCDE120,ZZE12#..UKP¥650200111-200405

77191WIRE, FUEL TANK EARTH

main77191-02020iZZE12#..UKP200212-200405

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-02120iZZE12#..UKP200111-200405

main77201-02130iCDE120,NDE120..UKP200111-200405

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77259-02040iCDE120..UKP200111-200405

L=160

main77259-02050iZZE12#..UKP¥1,470200111-200405

77204ATUBE, FUEL TANK RETURN

main77204-02040iCDE120..UKP200111-200604

main77204-05041iCDE120,NDE120..UKP¥2,100200604

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02050iCDE120,ZZE12#..UKP¥1,870200111-200405

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-02070iZZE12#..UKP¥1,800200111-200405

main77213-02080iCDE120..UKP200111-200405

sub77213-02070¥1,800

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-02060iCDE120,ZZE12#..UKP¥1,480200111-200405

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-02030iCDE120,ZZE12#..UKP¥1,480200111-200405

77241WCLIP, TUBE JOINT

main77241-32060iCDE120..UKP¥80200111-200405

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-02030iCDE120,ZZE12#..UKP200111-200405

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-13020iCDE120,ZZE12#..UKP..RHD¥710200111-200702

main77306-13030iCDE120,NDE120,ZZE12#..UKP..LHD¥1,140200111-200702

77310ACAP ASSY, FUEL TANK

main77300-28010iZZE12#..UKP¥1,740200111-200405

main77300-60010iCDE120..UKP¥2,780200111-200405

77316GASKET, FUEL TANK CAP

main77316-16010iCDE120,ZZE12#..UKP¥660200111-200405

77350LID ASSY, FUEL FILLER OPENING

main77350-13080iCDE120,ZZE12#..UKP¥3,590200111-200405

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iCDE120,ZZE12#..UKP¥250200111-200511

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-02020iCDE120,ZZE12#..UKP200111-200405

77380VALVE ASSY, FUEL CUT OFF

main77380-12020iCDE120,ZZE12#..UKP¥1,030200111-200405

77391RING, FUEL INLET BOX

main77391-12040iCDE120,ZZE12#..UKP¥220200111-200405

77391ARING, FUEL INLET BOX

main77391-12020iCDE120,ZZE12#..UKP¥180200111-200405

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-02050iCDE120,ZZE12#..UKP200111-200208

sub77601-02060¥2,910

main77601-02060iCDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC)¥2,910200202-200405

TYPE B:REFER TO ILLUSTRATION

main77601-02060iCDE120..UKP..DCRL¥2,910200304-200405

77602CASE SUB-ASSY, FUEL TANK, UPPER

main77602-02050iCDE120,ZZE12#..UKP200111-200208

sub77602-02070¥2,910

main77602-02070iCDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC)¥2,910200202-200405

TYPE B:REFER TO ILLUSTRATION

main77602-02070iCDE120..UKP..DCRL¥2,910200304-200405

77641APROTECTOR, FUEL TANK, NO.1

main77641-02010iCDE120,ZZE12#..UKP¥3,330200111-200405

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iCDE120,ZZE12#..UKP..(DCR,HDCR,HTWC,TWC)¥230200111-200603

77681SEAT, FUEL TANK BAND, RH

main77681-02040iCDE120,ZZE12#..UKP¥1,010200111-200405

sub77681-05020¥810

77682SEAT, FUEL TANK BAND, LH

main77681-02020iCDE120..UKP..DCRL¥1,210200111-200405

8401

9011906391

main90119-06391¥100

9011910700

main90119-10700¥190

9011910909

main90119-10909¥100

9026906017

main90269-06017¥140

9046022002

main90460-22002¥530

9046046003

main90460-46003¥310

9095904001

main90959-04001¥240

91631B0610

main91631-B0610¥110

42 parts on this diagram · 6 diagrams in section
