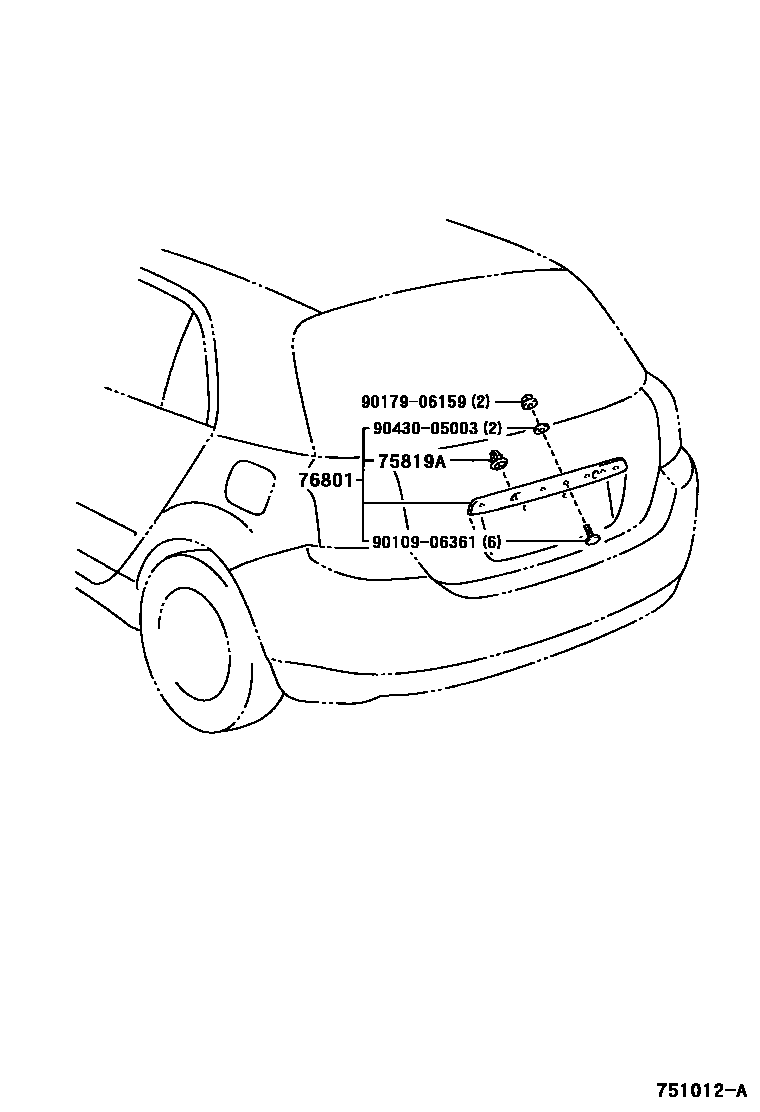

REAR MOULDING

75819ACLIP, BACK DOOR MOULDING

main75819-12040iCDE120,ZZE12#..UKP¥230200111-200405

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-02100-A0iCDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC)200111-200702

SUPER WHITE 2,040

sub76801-02903

main76801-02100-B0iCDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC)200111-200702

GRAY M.M.,1C3

sub76801-02903

main76801-02100-B1iZZE123..UKP200111-200405

GRAY ME.,1D2

sub76801-02903

main76801-02100-B2iCDE120..UKP..HDCR200111-200405

SILVER ME.,199

sub76801-02903

main76801-02100-B3iCDE120,NDE120,ZZE12#..UKP200405-200702

SILVER ME.,1C0

sub76801-02903

main76801-02100-B4iCDE120,NDE120,ZZE12#..UKP..(SOL,TSP)200405-200702

DK.GRAY M.M.,1E9

sub76801-02903

main76801-02100-B5iCDE120,NDE120,ZZE12#..UKP200405-200702

DK.GRAY M.M.,1F6

sub76801-02903

main76801-02100-C0iCDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)200111-200702

BLACK MC.,209

sub76801-02903

main76801-02100-D0iCDE120,NDE120,ZZE12#..UKP200111-200702

SUPER RED II,3E5

sub76801-02903

main76801-02100-G0iCDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)200111-200405

DARK GREEN MC.,6R4

sub76801-02903

main76801-02100-G1iCDE120,NDE120,ZZE120,121..UKP200405-200702

DK.GREEN M.M.,6S3

sub76801-02903

main76801-02100-J0iCDE120..UKP..HDCR200111-200702

DK.BLUE M.M.,8P4

sub76801-02903

main76801-02100-J1iCDE120,ZZE120,121..UKP..(DCR,DCRL,HTWC)200111-200405

GRAYISH BLUE M.M.,8Q3

sub76801-02903

main76801-02100-J2iCDE120..UKP..HDCR200111-200405

DK.BLUE,8Q4

sub76801-02903

main76801-02100-J3iCDE120,NDE120,ZZE120,121..UKP200405-200702

LT.BLUE M.M.,8S1

sub76801-02903

main76801-02100-J4iCDE120,NDE120,ZZE12#..UKP200510-200702

BLUE ME.,8P1

sub76801-02903

9010906361

main90109-06361¥60

9017906159

main90179-06159¥70

9043005003

main90430-05003¥60

5 parts on this diagram · 1 diagram in section
