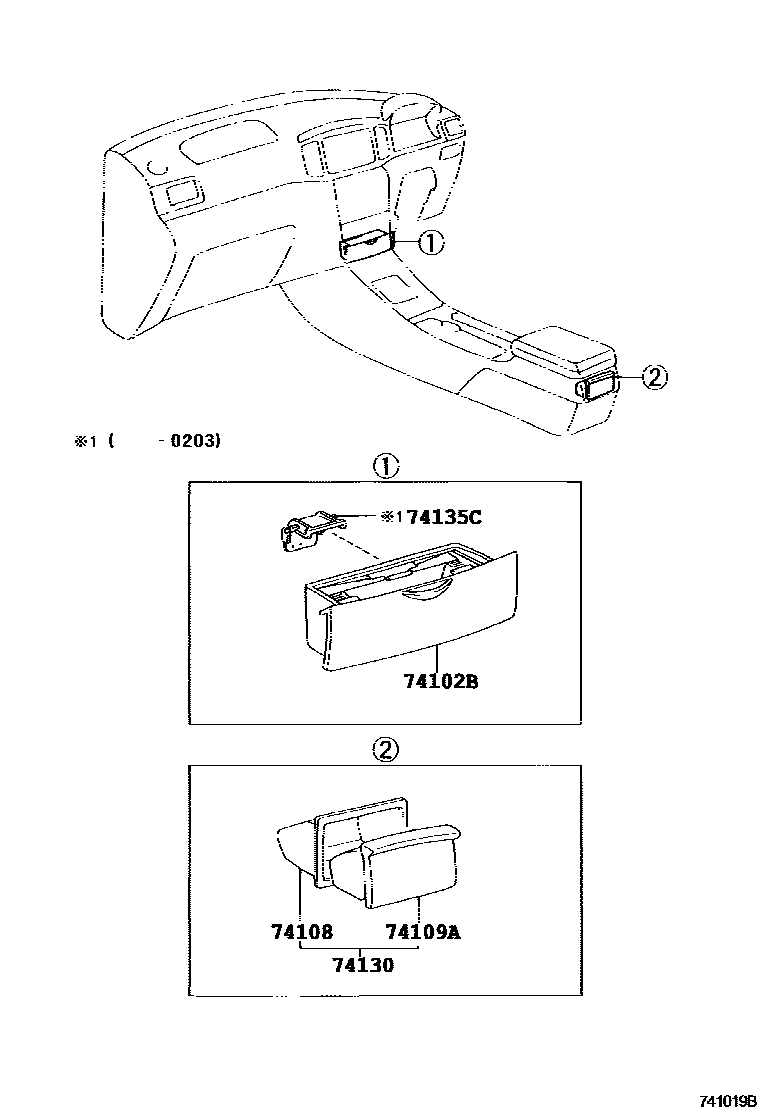

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-02100-B0iCDE120,NDE120,ZZE120,121..UKP..TERRA200405-200702

TRIM = TYPE A-*104,DARK GRAY,TRIM1#

main74102-02100-B0iCDE120,ZZE120,121..UKP..TERRA200111-200405

DARK GRAY,TRIM1#,8#

main74102-02110-A0iCDE120,ZZE120,121..UKP..SOL200111-200405

IVORY,TRIM0#

main74102-02110-A0iCDE120,NDE120,ZZE120,121..UKP..(SOL,TSP)200405-200702

TRIM = TYPE B-*104,IVORY,TRIM00

main74102-02110-B0iCDE120,ZZE12#..UKP..(SOL,TSP)200111-200405

GRAPHIC CARBON,TRIM1#

main74102-02110-B0iCDE120,NDE120,ZZE120,121..UKP..(SOL,TSP)200405-200702

TRIM = TYPE B-*104,GRAPHIC CARBON,TRIM00,1#

main74102-02110-B2iZZE123..UKP200405-200702

TRIM = TYPE B-*104,DARK GRAY ME.22GY34,TRIM1#

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-02010iCDE120,NDE120,ZZE12#..UKP200111-200405

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-02040-A0iCDE120,ZZE120,121..UKP..SOL..(DCR,DCRL,HTWC)200111-200702

IVORY,TRIM0#

main74109-02040-B0iCDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)200111-200702

DK.GRAY,TRIM1#

main74109-02040-J0iCDE120,ZZE120,121..UKP..TERRA200111-200405

DK.BLUE,TRIM8#

74130RECEPTACLE ASSY, REAR ASH

main74130-02020-A0iCDE120..UKP..HDCR200111-200702

IVORY,TRIM0#

main74130-02020-B0iCDE120,NDE120,ZZE12#..UKP200111-200702

DK.GRAY,TRIM1#

main74130-02020-J0iCDE120,ZZE120,121..UKP..TERRA200111-200405

DK.BLUE,TRIM8#

74135CRETAINER, ASH RECEPTACLE

main74123-02020iCDE120,ZZE120,121..UKP200111-200203

5 parts on this diagram · 1 diagram in section
