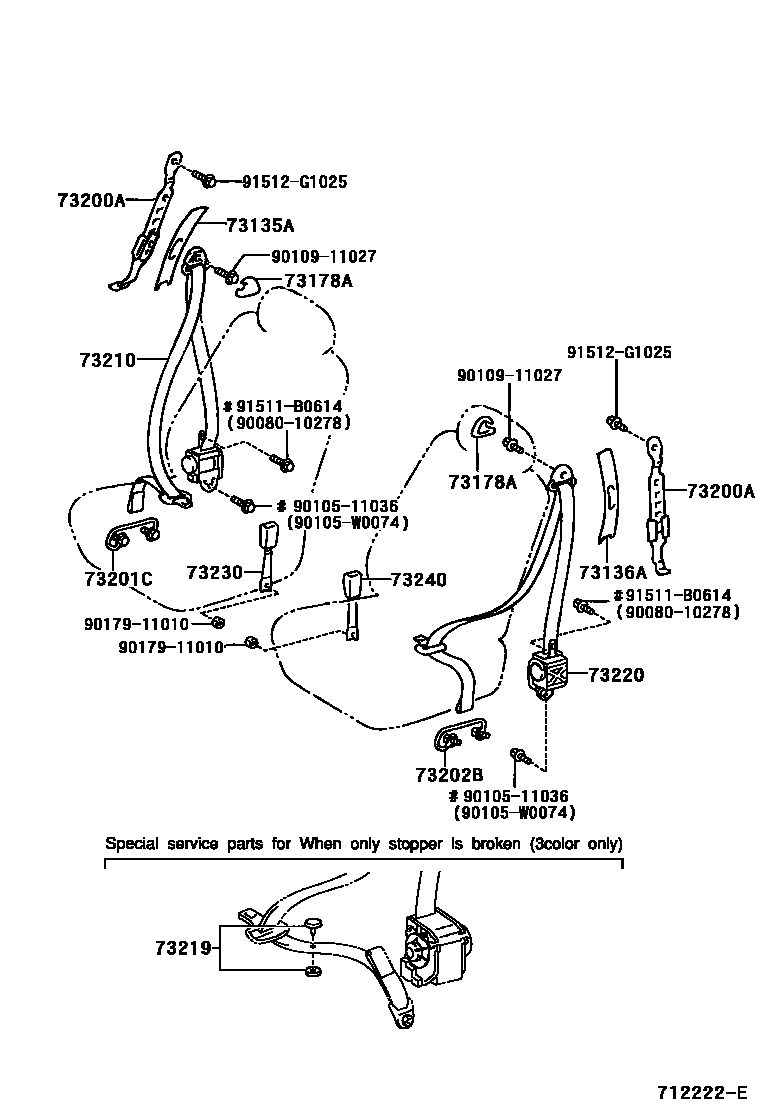

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1 0003 1 0004 1 0005 1

73135ACOVER, SHOULDER BELT ANCHOR, RH

main73237-02010-A0iCDE120,ZZE120,121..UKP..SOL200111-200702

IVORY,TRIM0#

main73237-02010-B2iCDE120,ZZE12#..UKP..(SOL,TSP)200111-200405

LT.GRAY,TRIM1#,8#

main73237-02010-B2iCDE120,ZZE12#..UKP..(SOL,TSP)200111-200702

LT.GRAY,TRIM1#

main73237-02020-A0iCDE120,ZZE120,121..UKP..SOL200301-200702

W(SRS CURTAIN SHILD AIR BAG),IVORY,TRIM0#

main73237-02020-B0iCDE120,ZZE120,121..UKP..TERRA200301-200702

W(SRS CURTAIN SHILD AIR BAG),LT.GRAY,TRIM1#

main73237-02020-B0iCDE120,ZZE120,121..UKP..TERRA200301-200405

W(SRS CURTAIN SHILD AIR BAG),LT.GRAY,TRIM1#,8#

73136ACOVER, SHOULDER BELT ANCHOR, LH

main73237-02010-A0iCDE120,ZZE120,121..UKP..SOL200111-200702

IVORY,TRIM0#

main73237-02010-B2iCDE120,ZZE120,121..UKP..TERRA200111-200405

LT.GRAY,TRIM1#,8#

main73237-02010-B2iCDE120,ZZE120,121..UKP..TERRA200111-200702

LT.GRAY,TRIM1#

main73237-02020-A0iCDE120,ZZE120,121..UKP..SOL200301-200702

W(SRS CURTAIN SHILD AIR BAG),IVORY,TRIM0#

main73237-02020-B0iCDE120,ZZE12#..UKP..(SOL,TSP)200301-200405

W(SRS CURTAIN SHILD AIR BAG),LT.GRAY,TRIM1#,8#

main73237-02020-B0iCDE120,ZZE120,121..UKP..TERRA200301-200702

W(SRS CURTAIN SHILD AIR BAG),LT.GRAY,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-A1iCDE120,ZZE120,121..UKP..SOL200111-200702

IVORY,TRIM0#

sub73178-33020¥570

main73178-33020-B3iCDE120,ZZE12#..UKP..(SOL,TSP)200111-200702

LT.GRAY,TRIM1#

sub73178-33020¥570

main73178-33020-B3iCDE120,ZZE120,121..UKP..TERRA200111-200405

LT.GRAY,TRIM1#,8#

sub73178-33020¥570

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02080-A0iCDE120,NDE120,ZZE120,121..UKP..(SOL,TSP)200204-200702

IVORY,TRIM0#

main73200-02080-B0iCDE120,ZZE12#..UKP..(SOL,TSP)200204-200405

LT.GRAY,TRIM1#,8#

main73200-02080-B0iCDE120,ZZE12#..UKP..(SOL,TSP)200204-200702

LT.GRAY,TRIM1#

73201CBAR SUB-ASSY, FRONT SEAT BELT, OUTER RH

main73201-02010iCDE120,ZZE12#..UKP..3D200111-200411

sub73201-02011

main73201-02011iCDE120,NDE120,ZZE12#..UKP..3D200412

73202BBAR SUB-ASSY, FRONT SEAT BELT, OUTER LH

main73202-02010iCDE120,ZZE12#..UKP..3D200111-200411

sub73202-02011

main73202-02011iCDE120,NDE120,ZZE12#..UKP..3D200412

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02120-A0iCDE120,ZZE120,121..UKP..5D..SOL200111-200301

IVORY,TRIM0#

main73210-02120-C0iCDE120,ZZE120,121..UKP..5D..TERRA200111-200301

BLACK,TRIM1#,8#

main73210-02120-C0iCDE120,ZZE120,121..UKP..5D..TERRA200111-200301

BLACK,TRIM1#

main73210-02121-A0iCDE120,ZZE120,121..UKP..5D..SOL200301-200405

IVORY,TRIM0#

main73210-02121-C1iCDE120,ZZE12#..UKP..5D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200301-200405

BLACK,TRIM1#

main73210-02121-C1iCDE120,ZZE12#..UKP..5D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200301-200405

BLACK,TRIM1#,8#

main73210-02130-A0iCDE120,ZZE120,121..UKP..3D..SOL200111-200301

IVORY,TRIM0#

main73210-02130-C0iCDE120,ZZE120,121..UKP..3D..TERRA200111-200301

BLACK,TRIM1#,8#

main73210-02130-C0iCDE120,ZZE120,121..UKP..3D..TERRA200111-200301

BLACK,TRIM1#

main73210-02131-A0iCDE120,ZZE120,121..UKP..3D..SOL200301-200405

IVORY,TRIM0#

main73210-02131-C1iCDE120,ZZE12#..UKP..3D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200301-200405

BLACK,TRIM1#,8#

main73210-02131-C1iCDE120,ZZE120,121..UKP..3D..TERRA200301-200405

BLACK,TRIM1#

main73210-02270-A0iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200405-200411

IVORY,TRIM0#

sub73210-02271

main73210-02270-C0iCDE120,NDE120,ZZE12#..UKP..5D200405-200411

BLACK,TRIM1#

sub73210-02271

main73210-02271-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..(SOL,TSP)200412-200702

IVORY,TRIM0#

main73210-02271-C0iCDE120,NDE120,ZZE12#..UKP..5D200412-200702

BLACK,TRIM1#

main73210-02290-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200411

IVORY,TRIM0#

sub73210-02291

main73210-02290-C0iCDE120,NDE120,ZZE12#..UKP..3D200405-200411

BLACK,TRIM1#

sub73210-02291

main73210-02291-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200412-200702

IVORY,TRIM0#

main73210-02291-C0iCDE120,NDE120,ZZE12#..UKP..3D200412-200702

BLACK,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-33010iCDE120,NDE120,ZZE12#..UKP¥100200204-200405

BLACK

main73219-33020iCDE120,NDE120,ZZE12#..UKP¥100200204-200405

GRAY

main73219-33030iCDE120,ZZE12#..UKP¥100200204-200405

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-02130-A0iCDE120,ZZE120,121..UKP..3D..SOL200111-200301

IVORY,TRIM0#

main73210-02130-C0iCDE120,ZZE120,121..UKP..3D..TERRA200111-200301

BLACK,TRIM1#

main73210-02130-C0iCDE120,ZZE12#..UKP..3D..(SOL,TSP)200111-200301

BLACK,TRIM1#,8#

main73210-02131-A0iCDE120,ZZE120,121..UKP..3D..SOL200301-200405

IVORY,TRIM0#

main73210-02131-C1iCDE120,ZZE12#..UKP..3D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200301-200405

BLACK,TRIM1#

main73210-02131-C1iCDE120,ZZE12#..UKP..3D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200301-200405

BLACK,TRIM1#,8#

main73210-02290-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200411

IVORY,TRIM0#

sub73210-02291

main73210-02290-C0iCDE120,NDE120,ZZE12#..UKP..3D200405-200411

BLACK,TRIM1#

sub73210-02291

main73210-02291-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200412-200702

IVORY,TRIM0#

main73210-02291-C0iCDE120,NDE120,ZZE12#..UKP..3D200412-200702

BLACK,TRIM1#

main73220-02110-A0iCDE120,ZZE120,121..UKP..5D..SOL200111-200301

IVORY,TRIM0#

main73220-02110-C0iCDE120,ZZE120,121..UKP..5D..TERRA200111-200301

BLACK,TRIM1#,8#

main73220-02110-C0iCDE120,ZZE12#..UKP..5D..(SOL,TSP)200111-200301

BLACK,TRIM1#

main73220-02111-A0iCDE120,ZZE120,121..UKP..5D..SOL200301-200405

IVORY,TRIM0#

main73220-02111-C1iCDE120,ZZE120,121..UKP..5D..TERRA200301-200405

BLACK,TRIM1#

main73220-02111-C1iCDE120,ZZE12#..UKP..5D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200301-200405

BLACK,TRIM1#,8#

main73220-02260-A0iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200405-200411

IVORY,TRIM0#

sub73220-02261

main73220-02260-C0iCDE120,NDE120,ZZE12#..UKP..5D200405-200411

BLACK,TRIM1#

sub73220-02261

main73220-02261-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..(SOL,TSP)200412-200702

IVORY,TRIM0#

main73220-02261-C0iCDE120,NDE120,ZZE12#..UKP..5D200412-200702

BLACK,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02120-A0iCDE120,ZZE120,121..UKP..SOL200111-200405

IVORY,TRIM0#

main73230-02120-B0iCDE120,ZZE120,121..UKP..TERRA200111-200405

DK.GRAY,TRIM1#

main73230-02120-B0iCDE120,ZZE120,121..UKP..TERRA200111-200405

DK.GRAY,TRIM1#,8#

main73230-02300-A0iCDE120,ZZE120,121..UKP..RHD..SOL200405-200411

IVORY,TRIM0#

sub73230-02301

main73230-02300-B0iCDE120,NDE120,ZZE12#..UKP..RHD200405-200411

DK.GRAY,TRIM1#

sub73230-02301

main73230-02301-B0iZZE123..UKP..RHD200412-200702

DK.GRAY,TRIM1#

main73230-05050-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..(SOL,TSP)200405-200411

IVORY,TRIM0#

sub73230-05051¥5,800

main73230-05050-B0iCDE120,NDE120,ZZE12#..UKP..LHD200405-200411

DK.GRAY,TRIM1#

sub73230-05051¥5,800

main73230-05051-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..(SOL,TSP)200412-200702

IVORY,TRIM0#

main73230-05051-B0iZZE123..UKP..LHD200412-200702

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02120-A0iCDE120,ZZE120,121..UKP..SOL200111-200405

IVORY,TRIM0#

main73230-02120-B0iCDE120,ZZE120,121..UKP..TERRA200111-200405

DK.GRAY,TRIM1#,8#

main73230-02120-B0iCDE120,ZZE120,121..UKP..TERRA200111-200405

DK.GRAY,TRIM1#

main73230-02300-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..(SOL,TSP)200405-200411

IVORY,TRIM0#

sub73230-02301

main73230-02300-B0iCDE120,NDE120,ZZE12#..UKP..LHD200405-200411

DK.GRAY,TRIM1#

sub73230-02301

main73230-02301-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..(SOL,TSP)200412-200702

IVORY,TRIM0#

main73230-02301-B0iCDE120,NDE120,ZZE120,121..UKP..LHD200412-200702

DK.GRAY,TRIM1#

main73230-05050-A0iCDE120,ZZE120,121..UKP..RHD..SOL200405-200411

IVORY,TRIM0#

sub73230-05051¥5,800

main73230-05050-B0iCDE120,NDE120,ZZE12#..UKP..RHD200405-200411

DK.GRAY,TRIM1#

sub73230-05051¥5,800

main73230-05051-B0iCDE120,NDE120,ZZE120,121..UKP..RHD200412-200702

DK.GRAY,TRIM1#

9008010278

main90080-10278¥110

9010511036

main90105-11036¥110

90105W0074

main90105-W0074

9010911027

main90109-11027¥180

9017911010

main90179-11010¥110

91511B0614

main91511-B0614¥90

91512G1025

main91512-G1025¥100

18 parts on this diagram · 5 diagrams in section
