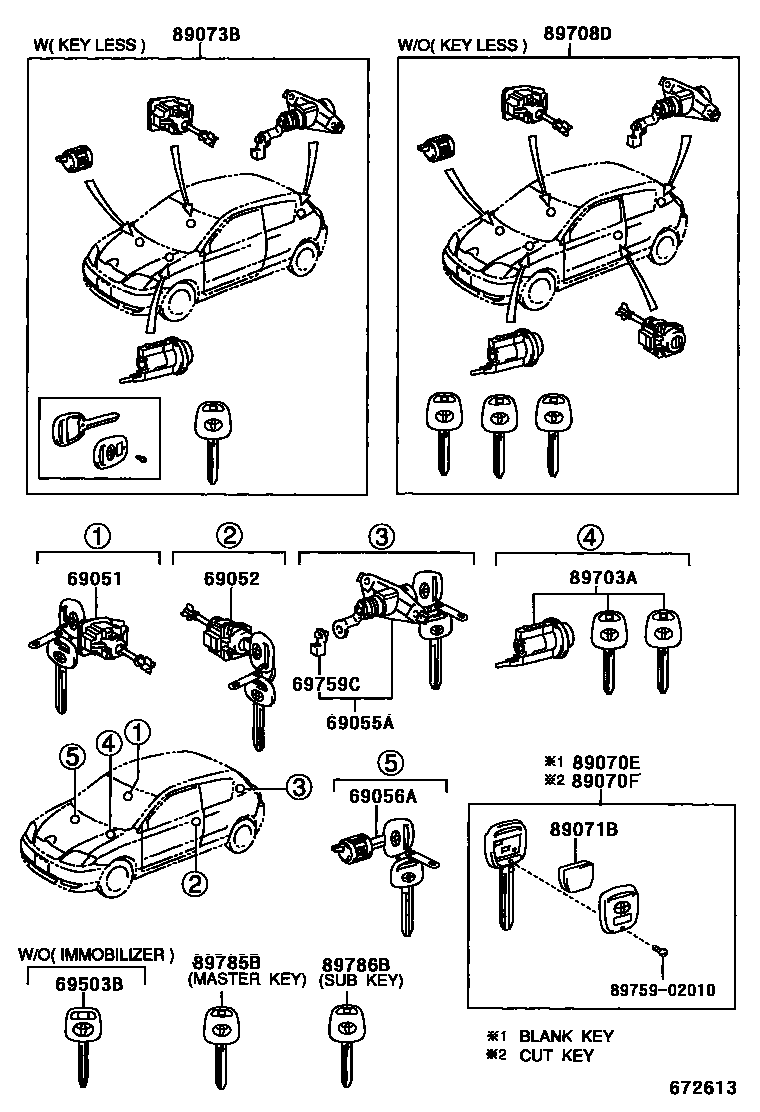

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503BKEY, CUT
MASTER KEY(VALEO)
69759CSNAP, BACK DOOR LOCK CYLINDER
89070ETRANSMITTER ASSY, DOOR CONTROL
89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89073BCYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)
89703ACYLINDER & KEY SET, IGNITION W/TRANSPONDER
W(WIRELESS DOOR LOCK)
89708DCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER
89785BTRANSMITTER, TRANSPONDER KEY MASTER
BLANK KEY
main89785-05030iZZE123..UKP..LHD;ZZE121..UKP..LHD..5D..SOL;CDE120,NDE120,ZZE120,121..UKP..TERRA200111-200405
CUT KEY
89786BTRANSMITTER, TRANSPONDER KEY SUB
BLANK KEY
CUT KEY
8975902010SCREW, DOOR CONTROL TRANSMITTER
main89759-02010
15 parts on this diagram · 2 diagrams in section
