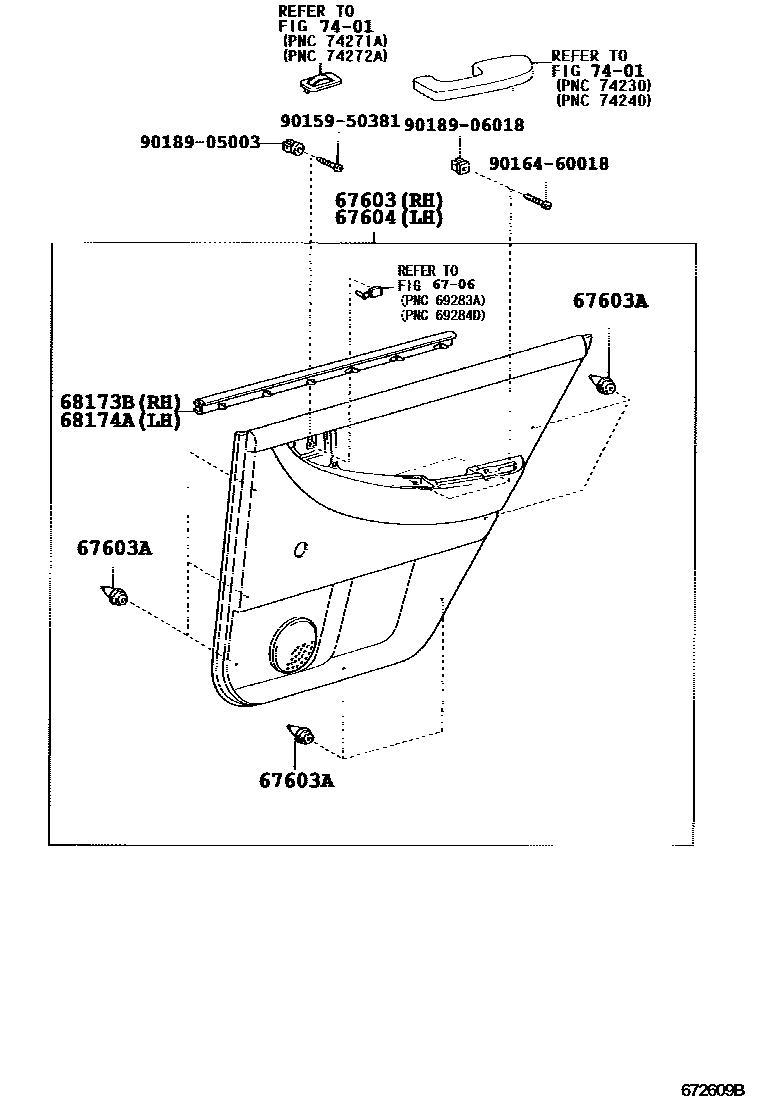

REAR DOOR PANEL & GLASS

0001 1 0002 1

6706

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-02700-B0iZZE123..UKP..5D200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67630-02700-B0iZZE123..UKP..5D200405-200702

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM1#

main67630-02710-A0iCDE120,ZZE120,121..UKP..5D..SOL..(DCR,DCRL,HTWC)200111-200405

DOOR TRIM=TYPE A-*104,IVORY,TRIM0#

main67630-02710-B0iCDE120..UKP..5D..HDCR200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67630-02720-B1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67630-02720-J1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8#

main67630-02730-B0iCDE120,ZZE12#..UKP..5D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200307

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67630-02731-B1iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#

main67630-02731-B1iCDE120,ZZE12#..UKP..5D..(SOL,TSP)200307-200405

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67630-02A50-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE D-*104,IVORY,TRIM0#

main67630-02A50-B3iCDE120,NDE120,ZZE120,121..UKP..5D..TERRA200405-200702

DOOR TRIM=TYPE B OR TYPE D-*104,DK.GRAY,TRIM1#

main67630-02A60-B1iCDE120,NDE120,ZZE120,121..UKP..5D..TERRA200405-200607

DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

main67630-02A70-B1iCDE120,NDE120,ZZE120,121..UKP..5D..TERRA200405-200607

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67630-02A80-B1iCDE120,NDE120,ZZE120,121..UKP..5D..TERRA200405-200510

DOOR TRIM=TYPE B-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

main67630-02M70-B0iCDE120,NDE120,ZZE120,121..UKP..5D..TERRA200607-200702

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main90467-10161iCDE120..UKP..5D..HDCR200111-200306

main90467-10161iCDE120,ZZE12#..UKP..5D200306-200405

(J)

main90467-W0005iCDE120,NDE120,ZZE12#..UKP..5D200405

main90467-W0005iCDE120,ZZE12#..UKP..5D200306-200405

(L)

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-02700-B0iZZE123..UKP..5D200405-200702

DOOR TRIM=TYPE C-*104,DK.GRAY,TRIM1#

main67640-02700-B0iZZE123..UKP..5D200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67640-02710-A0iCDE120..UKP..5D..HDCR200111-200405

DOOR TRIM=TYPE A-*104,IVORY,TRIM0#

main67640-02710-B0iCDE120,ZZE120,121..UKP..5D..SOL..(DCR,DCRL,HTWC)200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67640-02720-B1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67640-02720-J1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DOOR TRIM=TYPE A-*104,DK.BLUE,TRIM8#

main67640-02730-B0iCDE120..UKP..5D..HDCR200111-200307

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67640-02731-B1iCDE120,ZZE12#..UKP..5D..(SOL,TSP)200307-200405

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main67640-02731-B1iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#

main67640-02A50-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE D-*104,IVORY,TRIM0#

main67640-02A50-B3iCDE120,NDE120,ZZE120,121..UKP..5D..TERRA200405-200702

DOOR TRIM=TYPE B OR TYPE D-*104,DK.GRAY,TRIM1#

main67640-02A60-B1iCDE120,NDE120,ZZE120,121..UKP..5D..TERRA200405-200607

DOOR TRIM=TYPE A-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

main67640-02A70-B1iCDE120,NDE120,ZZE120,121..UKP..5D..TERRA200405-200607

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main67640-02A80-B1iCDE120,NDE120,ZZE120,121..UKP..5D..TERRA200405-200510

DOOR TRIM=TYPE B-*104 & W/O(POWER WINDOW),DK.GRAY,TRIM1#

main67640-02M70-B0iCDE120,NDE120,ZZE120,121..UKP..5D..TERRA200607-200702

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-12270iCDE120,ZZE12#..UKP..5D200111-200301

main68173-12290iCDE120,ZZE12#..UKP..5D200301-200405

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-12130iCDE120,ZZE12#..UKP..5D200111-200301

main68174-12150iCDE120,ZZE12#..UKP..5D200301-200405

7401

9015950381

main90159-50381

9016460018

main90164-60018

9018905003

main90189-05003

9018906018

main90189-06018

11 parts on this diagram · 2 diagrams in section
