FRONT DOOR WINDOW REGULATOR & HINGE

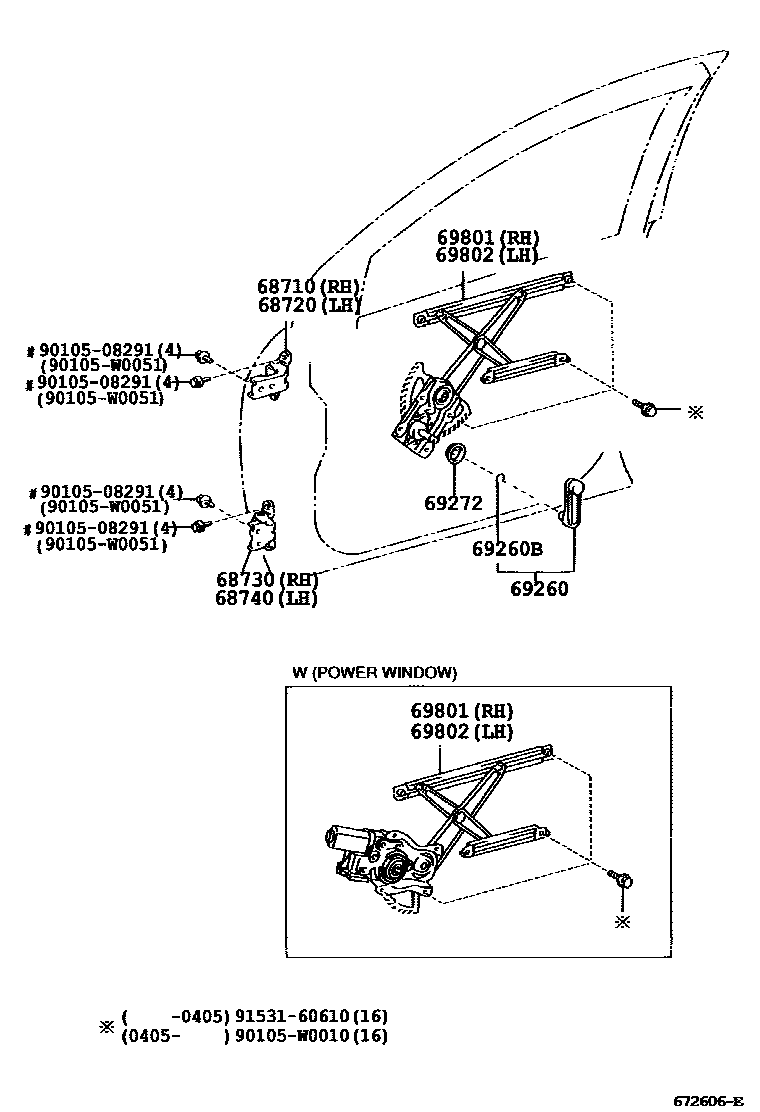

Parts diagram
68710HINGE ASSY, FRONT DOOR, UPPER RH
main68710-02040i200405-200702
sub68710-12151
main68710-02040i200111-200405
FRAME NO.=EXXXXXX
sub68710-12151
main68710-02050i200301-200405
FRAME NO.=RXXXXXX
68720HINGE ASSY, FRONT DOOR, UPPER LH
main68720-02040i200111-200405
FRAME NO.=EXXXXXX
sub68720-12151
main68720-02040i200405-200702
sub68720-12151
main68720-02050i200301-200405
FRAME NO.=RXXXXXX
68730HINGE ASSY, FRONT DOOR, LOWER RH
main68730-02040i200301-200405
FRAME NO.=RXXXXXX
main68730-0D010i200111-200405
FRAME NO.=EXXXXXX
sub68730-52010
main68730-0D010i200405-200702
sub68730-52010
68740HINGE ASSY, FRONT DOOR, LOWER LH
main68740-02040i200301-200405
FRAME NO.=RXXXXXX
main68740-0D010i200405-200702
sub68740-52010
main68740-0D010i200111-200405
FRAME NO.=EXXXXXX
sub68740-52010
69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
main69260-02020-B2i200111-200702
DK.GRAY,TRIM1#
sub69260-02020
sub69260-02021
main69260-02020-J0i200111-200405
DK.BLUE,TRIM8#
sub69260-02020
sub69260-02021
69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
main90080-52100i200111-200405
69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
main69268-02021i200111-200208
main69268-02022i200208-200405
69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
main69810-02120i200111-200405
main69810-02130i200111-200405
W(POWER WINDOW)
69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
main69820-02120i200111-200405
main69820-02130i200111-200405
W(POWER WINDOW)
9010508291
main90105-08291
90105W0010
main90105-W0010
90105W0051
main90105-W0051
9153160610
main91531-60610

13 parts on this diagram · 1 diagram in section
