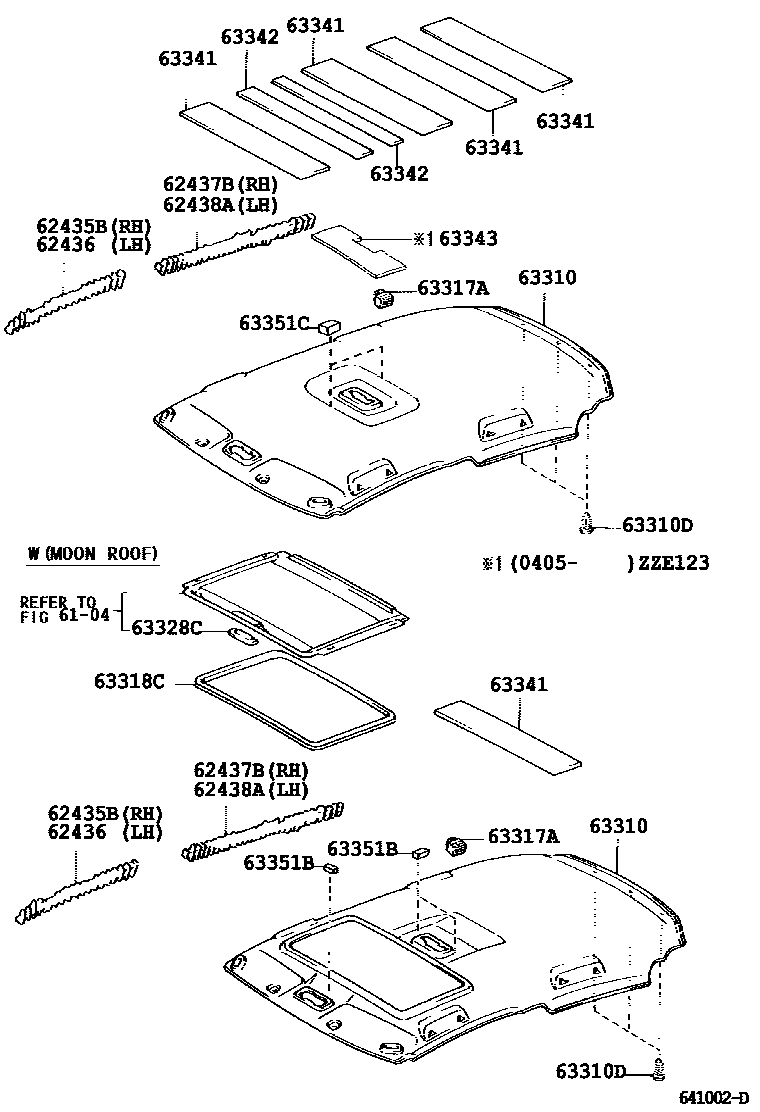

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

6104

62435BPAD, ROOF SIDE RAIL, FRONT RH

main62435-02020iCDE120,ZZE12#..UKP200111-200405

62437BPAD, ROOF SIDE RAIL, REAR RH

main62437-02010iCDE120,ZZE12#..UKP200111-200405

62438APAD, ROOF SIDE RAIL, REAR LH

main62438-02010iCDE120,NDE120,ZZE12#..UKP200111-200405

63310HEADLINING ASSY, ROOF

main63310-02290-A1iCDE120,ZZE120,121..UKP..5D..SOL200111-200301

IVORY,TRIM0#

sub63310-02490

main63310-02290-B1iCDE120,ZZE12#..UKP..5D..(SOL,TSP)200111-200301

LT.GRAY,TRIM1#

sub63310-02490

main63310-02290-B1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200301

LT.GRAY,TRIM1#,8#

sub63310-02490

main63310-02300-A1iCDE120,ZZE120,121..UKP..5D..SOL200111-200301

W(MOON ROOF),IVORY,TRIM0#

sub63310-13670

main63310-02300-B1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200301

W(MOON ROOF),LT.GRAY,TRIM1#

sub63310-13670

main63310-02300-B1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200301

W(MOON ROOF),LT.GRAY,TRIM1#,8#

sub63310-13670

main63310-02310-A1iCDE120..UKP..3D..HDCR200111-200309

IVORY,TRIM0#

sub63310-02312

main63310-02310-B1iCDE120,ZZE12#..UKP..3D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200309

LT.GRAY,TRIM1#

sub63310-02312

main63310-02310-B1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200309

LT.GRAY,TRIM1#,8#

sub63310-02312

main63310-02312-A1iCDE120,ZZE120,121..UKP..3D..SOL200309-200401

IVORY,TRIM0#

sub63310-02730

main63310-02312-B1iCDE120,ZZE12#..UKP..3D..(SOL,TSP)200309-200401

LT.GRAY,TRIM1#

sub63310-02730

main63310-02312-B1iCDE120,ZZE12#..UKP..3D..(SOL,TSP)200309-200401

LT.GRAY,TRIM1#,8#

sub63310-02730

main63310-02320-A1iCDE120..UKP..3D..HDCR200111-200309

W(MOON ROOF),IVORY,TRIM0#

sub63310-02322

main63310-02320-B1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200309

W(MOON ROOF),LT.GRAY,TRIM1#,8#

sub63310-02322

main63310-02320-B1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200309

W(MOON ROOF),LT.GRAY,TRIM1#

sub63310-02322

main63310-02322-A1iCDE120,ZZE120,121..UKP..3D..SOL200309-200401

W(MOON ROOF),IVORY,TRIM0#

sub63310-02740

main63310-02322-B1iCDE120,ZZE12#..UKP..3D..(SOL,TSP)200309-200401

W(MOON ROOF),LT.GRAY,TRIM1#

sub63310-02740

main63310-02322-B1iCDE120,ZZE120,121..UKP..3D..TERRA200309-200401

W(MOON ROOF),LT.GRAY,TRIM1#,8#

sub63310-02740

main63310-02490-A0iCDE120,ZZE120,121..UKP..5D..SOL..(DCR,DCRL,HTWC)200301-200309

IVORY,TRIM0#

sub63310-02491

main63310-02490-B0iCDE120,ZZE120,121..UKP..5D..TERRA200301-200309

LT.GRAY,TRIM1#

sub63310-02491

main63310-02490-B0iCDE120,ZZE120,121..UKP..5D..TERRA200301-200309

LT.GRAY,TRIM1#,8#

sub63310-02491

main63310-02491-A0iCDE120,ZZE120,121..UKP..5D..SOL200309-200401

IVORY,TRIM0#

sub63310-02750

main63310-02491-B0iCDE120,ZZE120,121..UKP..5D..TERRA200309-200401

LT.GRAY,TRIM1#,8#

sub63310-02750

main63310-02491-B0iCDE120,ZZE12#..UKP..5D..(SOL,TSP)200309-200401

LT.GRAY,TRIM1#

sub63310-02750

main63310-02500-A0iCDE120,ZZE120,121..UKP..5D..SOL..(DCR,DCRL,HTWC)200301-200309

W(MOON ROOF),IVORY,TRIM0#

sub63310-02501

main63310-02500-B0iCDE120,ZZE120,121..UKP..5D..TERRA200301-200309

W(MOON ROOF),LT.GRAY,TRIM1#

sub63310-02501

main63310-02500-B0iCDE120,ZZE120,121..UKP..5D..TERRA200301-200309

W(MOON ROOF),LT.GRAY,TRIM1#,8#

sub63310-02501

main63310-02501-A0iCDE120,ZZE120,121..UKP..5D..SOL200309-200401

W(MOON ROOF),IVORY,TRIM0#

sub63310-02760

main63310-02501-B0iCDE120,ZZE120,121..UKP..5D..TERRA200309-200401

W(MOON ROOF),LT.GRAY,TRIM1#

sub63310-02760

main63310-02501-B0iCDE120,ZZE120,121..UKP..5D..TERRA200309-200401

W(MOON ROOF),LT.GRAY,TRIM1#,8#

sub63310-02760

main63310-02560-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

IVORY,TRIM0#

main63310-02560-B0iCDE120,NDE120,ZZE12#..UKP..3D200405-200702

LT.GRAY,TRIM1#

main63310-02570-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

W(MOON ROOF),IVORY,TRIM0#

main63310-02570-B0iCDE120,NDE120,ZZE12#..UKP..3D200405-200702

W(MOON ROOF),LT.GRAY,TRIM1#

main63310-02580-A0iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200405-200702

IVORY,TRIM0#

main63310-02580-B0iCDE120,NDE120,ZZE12#..UKP..5D200405-200702

LT.GRAY,TRIM1#

main63310-02590-A0iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200405-200702

W(MOON ROOF),IVORY,TRIM0#

main63310-02590-B0iCDE120,NDE120,ZZE12#..UKP..5D200405-200702

W(MOON ROOF),LT.GRAY,TRIM1#

main63310-02730-A0iCDE120,ZZE120,121..UKP..3D..SOL200401-200405

IVORY,TRIM0#

main63310-02730-B0iCDE120,ZZE12#..UKP..3D..(SOL,TSP)200401-200405

LT.GRAY,TRIM1#

main63310-02730-B0iCDE120,ZZE120,121..UKP..3D..TERRA200401-200405

LT.GRAY,TRIM1#,8#

main63310-02740-A0iCDE120,ZZE120,121..UKP..3D..SOL200401-200405

W(MOON ROOF),IVORY,TRIM0#

main63310-02740-B0iCDE120,ZZE12#..UKP..3D..(SOL,TSP)200401-200405

W(MOON ROOF),LT.GRAY,TRIM1#

main63310-02740-B0iCDE120,ZZE12#..UKP..3D..(SOL,TSP)200401-200405

W(MOON ROOF),LT.GRAY,TRIM1#,8#

main63310-02750-A0iCDE120,ZZE120,121..UKP..5D..SOL200401-200405

IVORY,TRIM0#

main63310-02750-B0iCDE120,ZZE12#..UKP..5D..(SOL,TSP)200401-200405

LT.GRAY,TRIM1#,8#

main63310-02750-B0iCDE120,ZZE12#..UKP..5D..(SOL,TSP)200401-200405

LT.GRAY,TRIM1#

main63310-02760-A0iCDE120,ZZE120,121..UKP..5D..SOL200401-200405

W(MOON ROOF),IVORY,TRIM0#

main63310-02760-B0iCDE120,ZZE12#..UKP..5D..(SOL,TSP)200401-200405

W(MOON ROOF),LT.GRAY,TRIM1#,8#

main63310-02760-B0iCDE120,ZZE12#..UKP..5D..(SOL,TSP)200401-200405

W(MOON ROOF),LT.GRAY,TRIM1#

63310DCLIP, ROOF HEADLINING

main90467-05164-A0iCDE120,ZZE120,121..UKP..SOL..(DCR,DCRL,HTWC)200111-200306

IVORY,TRIM0#

sub90467-05164

main90467-05164-A0iCDE120,ZZE120,121..UKP..SOL200306-200702

IVORY,TRIM0#,(J)

sub90467-05164

main90467-05164-B0iCDE120,NDE120,ZZE12#..UKP..3D200306-200702

LT.GRAY,TRIM1#,(J)

sub90467-05164

main90467-05164-B0iCDE120..UKP..HDCR200111-200306

LT.GRAY,TRIM1#

sub90467-05164

main90467-05164-B0iCDE120,ZZE120,121..UKP..TERRA200111-200306

LT.GRAY,TRIM1#,8#

sub90467-05164

main90467-05164-B0iCDE120,ZZE120,121..UKP..TERRA200306-200405

LT.GRAY,TRIM1#,8#,(J)

sub90467-05164

main90467-W0006-A0iCDE120,ZZE120,121..UKP..SOL200306-200702

IVORY,TRIM0#,(L)

sub90467-W0006

main90467-W0006-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

IVORY,TRIM0#

sub90467-W0006

main90467-W0006-B0iCDE120,ZZE120,121..UKP..TERRA200306-200405

LT.GRAY,TRIM1#,8#,(L)

sub90467-W0006

main90467-W0006-B0iCDE120,ZZE120,121..UKP..TERRA200306-200702

LT.GRAY,TRIM1#,(L)

sub90467-W0006

main90467-W0006-B0iCDE120,NDE120,ZZE12#..UKP..5D200405-200702

LT.GRAY,TRIM1#

sub90467-W0006

63317ARETAINER, ROOF HEADLINING

main63317-13020iCDE120,NDE120,ZZE12#..UKP..3D200111-200405

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-02030-A0iCDE120,ZZE120,121..UKP..SOL..(DCR,DCRL,HTWC)200111-200309

L=2188.5,IVORY,TRIM0#

sub63318-02031

main63318-02030-B1iCDE120,ZZE12#..UKP..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200309

L=2188.5,LT.GRAY,TRIM1#,8#

sub63318-02031

main63318-02030-B1iCDE120,ZZE12#..UKP..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200309

L=2188.5,LT.GRAY,TRIM1#

sub63318-02031

main63318-02031-A0iCDE120,NDE120,ZZE120,121..UKP..(SOL,TSP)200309-200702

L=2188.5,IVORY,TRIM0#

sub63318-52010

main63318-02031-B1iCDE120,ZZE120,121..UKP..TERRA200309-200702

L=2188.5,LT.GRAY,TRIM1#

sub63318-52010

main63318-02031-B1iCDE120,ZZE12#..UKP..(SOL,TSP)200309-200405

L=2188.5,LT.GRAY,TRIM1#,8#

sub63318-52010

63328CKNOB, SUNSHADE TRIM

main63328-02020-A0iCDE120,ZZE120,121..UKP..SOL200111-200301

IVORY,TRIM0#

main63328-02020-B1iCDE120..UKP..HDCR200111-200405

LT.GRAY,TRIM1#

main63328-02020-B1iCDE120,ZZE120,121..UKP..TERRA200111-200405

LT.GRAY,TRIM1#,8#

63341PAD, ROOF SILENCER, NO.1

main63341-02050iCDE120,ZZE12#..UKP200111-200405

W(MOON ROOF)

63342PAD, ROOF SILENCER, NO.2

main63342-02090iCDE120,ZZE12#..UKP200111-200405

63343PAD, ROOF SILENCER, NO.3

main63343-02080iZZE123..UKP200405

63351BPAD, ROOF HEADLINING

main63351-02100iCDE120,ZZE12#..UKP200111-200405

63351CPAD, ROOF HEADLINING

main63351-02080iCDE120,ZZE12#..UKP200111-200405

14 parts on this diagram · 2 diagrams in section
