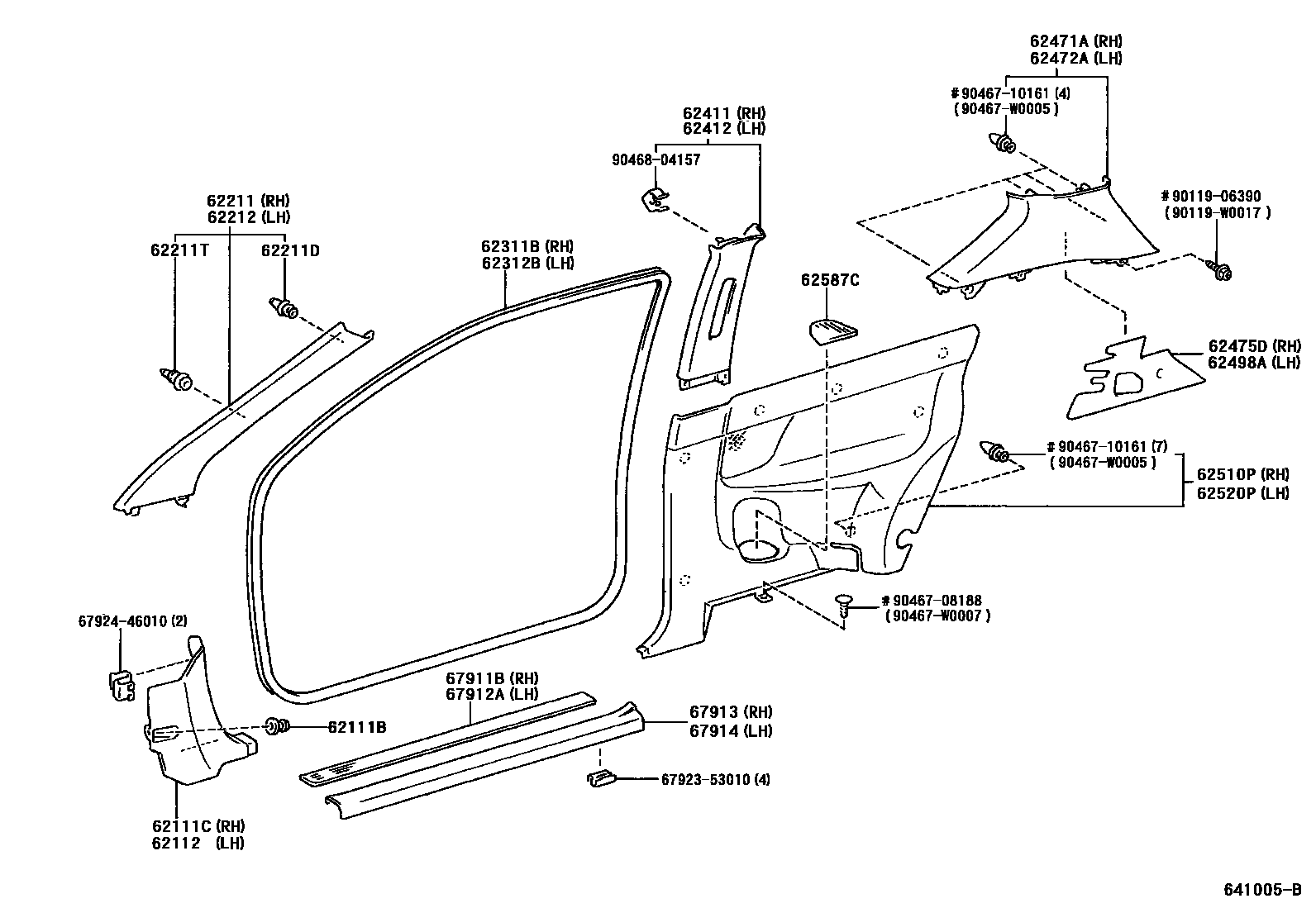

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1W(CURTAIN SHIELD AIR BAG) 0003 1 0004 1W(CURTAIN SHIELD AIR BAG)

62111BCLIP(FOR COWL SIDE TRIM)

main90467-06191iCDE120,ZZE12#..UKP¥130200111-200405

62111CBOARD, COWL SIDE TRIM, RH

main62111-02080-A0iCDE120,ZZE120,121..UKP..SOL..(DCR,DCRL,HTWC)200111-200702

IVORY,TRIM0#

main62111-02080-B0iCDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)200111-200702

DK.GRAY,TRIM1#

main62111-02080-B0iZZE121..UKP..LHD..4FC..TERRA200405-200702

DK.GRAY,TRIM15

main62111-02080-J0iCDE120,ZZE120,121..UKP..TERRA200111-200405

DK.BLUE,TRIM8#

62112BOARD, COWL SIDE TRIM, LH

main62112-02080-A0iCDE120..UKP..HDCR200111-200702

IVORY,TRIM0#

main62112-02080-B0iCDE120..UKP..HDCR200111-200702

DK.GRAY,TRIM1#

main62112-02080-B0iZZE121..UKP..RHD;ZZE121..UKP..LHD..3D;ZZE121..UKP..LHD..5D..SOL;CDE120,NDE120,ZZE120,123..UKP;ZZE121..UKP..LHD..5D..5F..TERRA200405-200702

DK.GRAY,TRIM15

main62112-02080-J0iCDE120,ZZE120,121..UKP..TERRA200111-200405

DK.BLUE,TRIM8#

62211GARNISH, FRONT PILLAR, RH

main62211-02060-A0iZZE120,121..UKP..SOL200111-200702

IVORY,TRIM0#

main62211-02060-B0iZZE12#..UKP..(SOL,TSP)200111-200405

LT.GRAY,TRIM1#,8#

main62211-02060-B0iZZE12#..UKP200111-200702

LT.GRAY,TRIM1#

main62211-02090-A0iCDE120..UKP..SOL..(DCR,DCRL)200111-200702

IVORY,TRIM0#

main62211-02090-B0iCDE120..UKP..TERRA200111-200702

LT.GRAY,TRIM1#

main62211-02090-B0iCDE120..UKP..TERRA200111-200405

LT.GRAY,TRIM1#,8#

main62211-02120-A1iZZE120,121..UKP..SOL200301-200702

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62211-02120-B1iZZE120,121..UKP..TERRA200301-200405

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM15

main62211-02120-B1iZZE12#..UKP..(SOL,TSP)200301-200405

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM15,80

main62211-02120-B1iZZE12#..UKP200405-200702

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62211-02130-A1iCDE120..UKP..HDCR200301-200702

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62211-02130-B1iCDE120..UKP..TERRA200301-200702

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62211-02130-B1iCDE120..UKP..TERRA200301-200405

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8#

62211DCLIP(FOR FRONT BODY PILLAR GARNISH)

main90467-10161iCDE120,ZZE12#..UKP¥90200111-200306

main90467-10161iCDE120,ZZE12#..UKP¥90200306-200405

(J)

main90467-W0005iCDE120,NDE120,ZZE12#..UKP¥80200306-200405

(L)

62211TCLIP(FOR FRONT PILLAR GARNISH)

main62217-13010iCDE120,NDE120,ZZE12#..UKP¥80200111-200405

62212GARNISH, FRONT PILLAR, LH

main62212-02060-A0iZZE120,121..UKP..SOL200111-200702

IVORY,TRIM0#

main62212-02060-B0iZZE120,121..UKP..TERRA200111-200405

LT.GRAY,TRIM1#,8#

main62212-02060-B0iZZE12#..UKP..(SOL,TSP)200111-200702

LT.GRAY,TRIM1#

main62212-02090-A0iCDE120,NDE120..UKP..(SOL,TSP)200111-200702

IVORY,TRIM0#

main62212-02090-B0iCDE120..UKP..SOL..(DCR,DCRL)200111-200405

LT.GRAY,TRIM1#,8#

main62212-02090-B0iCDE120..UKP..SOL..(DCR,DCRL)200111-200702

LT.GRAY,TRIM1#

main62212-02120-A1iZZE120,121..UKP..SOL200301-200702

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62212-02120-B1iZZE12#..UKP..(SOL,TSP)200301-200405

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM15,80

main62212-02120-B1iZZE12#..UKP..(SOL,TSP)200301-200405

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM15

main62212-02120-B1iZZE12#..UKP200405-200702

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62212-02130-A1iCDE120..UKP..HDCR200301-200702

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62212-02130-B1iCDE120..UKP..SOL..(DCR,DCRL)200301-200405

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8#

main62212-02130-B1iCDE120..UKP..SOL..(DCR,DCRL)200301-200702

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-02030-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

IVORY,TRIM0#

main62311-02030-A0iCDE120,ZZE120,121..UKP..3D..SOL..(DCR,HDCR,HTWC)200111-200405

IVORY,TRIM0#,(L)

main62311-02030-B0iCDE120,NDE120,ZZE12#..UKP..3D200405-200702

DK.GRAY,TRIM1#

main62311-02030-B0iCDE120,ZZE12#..UKP..3D..(DCR,HDCR,HTWC,TWC)200111-200405

DK.GRAY,TRIM1#,(L)

main62311-02030-J0iCDE120,ZZE120,121..UKP..3D..TERRA..(DCR,HTWC)200111-200405

DK.BLUE,TRIM8#,(L)

main62311-02031-A0iCDE120,ZZE120,121..UKP..3D..SOL200306-200308

IVORY,TRIM0#

sub62311-02032

main62311-02031-B0iCDE120,ZZE12#..UKP..3D200306-200308

DK.GRAY,TRIM1#

sub62311-02032

main62311-02031-J0iCDE120,ZZE120,121..UKP..3D..TERRA200306-200308

DK.BLUE,TRIM8#

sub62311-02032

main62311-02040-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..(SOL,TSP)200405-200702

IVORY,TRIM0#

sub62311-12141¥9,300

main62311-02040-A0iCDE120,ZZE120,121..UKP..5D..SOL200111-200405

IVORY,TRIM0#,(L)

sub62311-12141¥9,300

main62311-02040-B0iCDE120,NDE120,ZZE12#..UKP..5D200405-200702

DK.GRAY,TRIM1#

sub62311-12141¥9,300

main62311-02040-B0iCDE120,ZZE12#..UKP..5D200111-200405

DK.GRAY,TRIM1#,(L)

sub62311-12141¥9,300

main62311-02040-J0iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DK.BLUE,TRIM8#,(L)

sub62311-12141¥9,300

main62311-12120-A0iCDE120,ZZE120,121..UKP..5D..SOL200111-200304

IVORY,TRIM0#,(J)

sub62311-02041

main62311-12120-B0iCDE120,ZZE12#..UKP..5D200111-200304

DK.GRAY,TRIM1#,(J)

sub62311-02041

main62311-12120-J0iCDE120,ZZE120,121..UKP..5D..TERRA200111-200304

DK.BLUE,TRIM8#,(J)

sub62311-02041

main62311-13030iCDE120,ZZE12#..UKP..3D¥10,900200111-200304

(J)

main62311-13031-A0iCDE120,ZZE120,121..UKP..3D..SOL200304-200306

IVORY,TRIM0#,(J)

main62311-13031-B0iCDE120,ZZE12#..UKP..3D200304-200306

DK.GRAY,TRIM1#,(J)

main62311-13031-J0iCDE120,ZZE120,121..UKP..3D..TERRA200304-200306

DK.BLUE,TRIM8#,(J)

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-02030-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

IVORY,TRIM0#

sub62312-13031¥11,100

main62312-02030-A0iCDE120,ZZE120,121..UKP..3D..SOL..(DCR,HDCR,HTWC)200111-200405

IVORY,TRIM0#,(L)

sub62312-13031¥11,100

main62312-02030-B0iCDE120,NDE120,ZZE12#..UKP..3D200405-200702

DK.GRAY,TRIM1#

sub62312-13031¥11,100

main62312-02030-B0iCDE120,ZZE12#..UKP..3D..(DCR,HDCR,HTWC,TWC)200111-200405

DK.GRAY,TRIM1#,(L)

sub62312-13031¥11,100

main62312-02030-J0iCDE120,ZZE120,121..UKP..3D..TERRA..(DCR,HTWC)200111-200405

DK.BLUE,TRIM8#,(L)

sub62312-13031¥11,100

main62312-02040-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..(SOL,TSP)200405-200702

IVORY,TRIM0#

sub62312-12141¥5,800

main62312-02040-A0iCDE120,ZZE120,121..UKP..5D..SOL200111-200405

IVORY,TRIM0#,(L)

sub62312-12141¥5,800

main62312-02040-B0iCDE120,NDE120,ZZE12#..UKP..5D200405-200702

DK.GRAY,TRIM1#

sub62312-12141¥5,800

main62312-02040-B0iCDE120,ZZE12#..UKP..5D200111-200405

DK.GRAY,TRIM1#,(L)

sub62312-12141¥5,800

main62312-02040-J0iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DK.BLUE,TRIM8#,(L)

sub62312-12141¥5,800

main62312-12120-A0iCDE120,ZZE120,121..UKP..5D..SOL200111-200304

IVORY,TRIM0#,(J)

sub62312-02041

main62312-12120-B0iCDE120,ZZE12#..UKP..5D200111-200304

DK.GRAY,TRIM1#,(J)

sub62312-02041

main62312-12120-J0iCDE120,ZZE120,121..UKP..5D..TERRA200111-200304

DK.BLUE,TRIM8#,(J)

sub62312-02041

main62312-13030-A0iCDE120,ZZE120,121..UKP..3D..SOL200111-200304

IVORY,TRIM0#,(J)

sub62312-13031¥11,100

main62312-13030-B0iCDE120,ZZE12#..UKP..3D200111-200304

DK.GRAY,TRIM1#,(J)

sub62312-13031¥11,100

main62312-13030-J0iCDE120,ZZE120,121..UKP..3D..TERRA200111-200304

DK.BLUE,TRIM8#,(J)

sub62312-13031¥11,100

main62312-13031-A0iCDE120,ZZE120,121..UKP..3D..SOL200304-200306

IVORY,TRIM0#,(J)

sub62312-02032

main62312-13031-B0iCDE120,ZZE12#..UKP..3D200304-200306

DK.GRAY,TRIM1#,(J)

sub62312-02032

main62312-13031-J0iCDE120,ZZE120,121..UKP..3D..TERRA200304-200306

DK.BLUE,TRIM8#,(J)

sub62312-02032

62411GARNISH, CENTER PILLAR, RH

main62410-02030-A0iCDE120..UKP..5D..HDCR200301-200405

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62410-02030-B0iCDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC)200301-200702

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62410-02050-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200301-200702

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

sub62410-02050

main62410-02050-B0iCDE120,NDE120,ZZE12#..UKP..3D200405-200702

W(SRS CURTAIN SHIELD AIR BAG),GRAY,TRIM1#

sub62410-02050

main62410-02050-B0iCDE120..UKP..3D..HDCR200301-200304

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

sub62410-02050

main62410-02050-B0iCDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC)200301-200405

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8#

sub62410-02050

main62411-02060-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200111-200702

IVORY,TRIM0#

main62411-02060-B0iCDE120,ZZE120,121..UKP..3D..TERRA200111-200702

LT.GRAY,TRIM1#

main62411-02060-B0iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

LT.GRAY,TRIM1#,8#

main62411-02070-A0iCDE120,ZZE120,121..UKP..5D..SOL..(DCR,DCRL,HTWC)200111-200702

IVORY,TRIM0#

main62411-02070-B0iCDE120,ZZE12#..UKP..5D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200702

LT.GRAY,TRIM1#

main62411-02070-B0iCDE120,ZZE12#..UKP..5D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200405

LT.GRAY,TRIM1#,8#

62412GARNISH, CENTER PILLAR, LH

main62412-02050-A0iCDE120,ZZE120,121..UKP..3D..SOL..(DCR,DCRL,HTWC)200111-200702

IVORY,TRIM0#

main62412-02050-B0iCDE120,NDE120,ZZE12#..UKP..3D200111-200702

LT.GRAY,TRIM1#

main62412-02050-B0iCDE120,ZZE12#..UKP..3D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200405

LT.GRAY,TRIM1#,8#

main62412-02060-A0iCDE120,ZZE120,121..UKP..5D..SOL..(DCR,DCRL,HTWC)200111-200702

IVORY,TRIM0#

main62412-02060-B0iCDE120,NDE120,ZZE12#..UKP..5D200111-200702

LT.GRAY,TRIM1#

main62412-02060-B0iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

LT.GRAY,TRIM1#,8#

main62420-02030-A0iCDE120..UKP..5D..HDCR200301-200405

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62420-02030-B0iCDE120..UKP..5D..HDCR200301-200702

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62420-02050-A0iCDE120,ZZE120,121..UKP..3D..SOL..(DCR,DCRL,HTWC)200301-200702

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62420-02050-B0iCDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC)200301-200405

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8#

main62420-02050-B0iCDE120..UKP..3D..HDCR200301-200304

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62420-02050-B0iCDE120,NDE120,ZZE12#..UKP..3D200405-200702

W(SRS CURTAIN SHIELD AIR BAG),GRAY,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-02020-A1iCDE120..UKP..3D..HDCR200111-200702

IVORY,TRIM0#

main62470-02020-B1iCDE120,NDE120,ZZE12#..UKP..3D200111-200702

LT.GRAY,TRIM1#

main62470-02020-B1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

LT.GRAY,TRIM1#,8#

main62470-02050-A0iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200405-200702

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62470-02050-B0iCDE120,NDE120,ZZE12#..UKP..5D200405-200702

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62470-02080-A1iCDE120,ZZE120,121..UKP..3D..SOL..(DCR,DCRL,HTWC)200301-200702

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62470-02080-B1iCDE120,ZZE120,121..UKP..3D..TERRA200301-200702

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62470-02080-B1iCDE120,ZZE120,121..UKP..3D..TERRA200301-200405

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8#

main62471-02130-A1iCDE120..UKP..5D..HDCR200111-200702

IVORY,TRIM0#

main62471-02130-B1iCDE120,ZZE12#..UKP..5D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200405

LT.GRAY,TRIM1#,8#

main62471-02130-B1iCDE120,ZZE120,121..UKP..5D..TERRA200111-200702

LT.GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-02130-A1iCDE120,ZZE120,121..UKP..5D..SOL..(DCR,DCRL,HTWC)200111-200702

IVORY,TRIM0#

main62472-02130-B1iCDE120..UKP..5D..HDCR200111-200702

LT.GRAY,TRIM1#

main62472-02130-B1iCDE120,ZZE12#..UKP..5D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200405

LT.GRAY,TRIM1#,8#

main62480-02020-A1iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200111-200702

IVORY,TRIM0#

main62480-02020-B1iCDE120..UKP..3D..HDCR200111-200702

LT.GRAY,TRIM1#

main62480-02020-B1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

LT.GRAY,TRIM1#,8#

main62480-02040-A0iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200405-200702

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62480-02040-B0iCDE120,NDE120,ZZE12#..UKP..5D200405-200702

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

main62480-02070-A1iCDE120,ZZE120,121..UKP..3D..SOL..(DCR,DCRL,HTWC)200301-200702

W(SRS CURTAIN SHIELD AIR BAG),IVORY,TRIM0#

main62480-02070-B1iCDE120,ZZE12#..UKP..3D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200301-200405

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#,8#

main62480-02070-B1iCDE120,ZZE12#..UKP..3D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200301-200702

W(SRS CURTAIN SHIELD AIR BAG),LT.GRAY,TRIM1#

62475DPAD, ROOF SIDE INNER GARNISH, RH

main62475-02030iCDE120,ZZE12#..UKP..3D200111-200405

main62475-02040iCDE120,ZZE12#..UKP..5D200111-200405

62498APAD, ROOF SIDE INNER GARNISH, LH

main62475-02030iCDE120,ZZE12#..UKP..3D200111-200405

main62475-02040iCDE120,ZZE12#..UKP..5D200111-200405

62510PPANEL ASSY, QUARTER TRIM, FRONT RH

main62510-02050-B1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DK.GRAY,TRIM1#

main62510-02050-J1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DK.BLUE,TRIM8#

main62510-02060-B0iZZE123..UKP..3D200405-200702

DK.GRAY,TRIM1#

main62510-02060-B0iZZE123..UKP..3D200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main62510-02070-A0iCDE120..UKP..3D..HDCR200111-200405

IVORY,TRIM0#

main62510-02070-B0iCDE120..UKP..3D..HDCR200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main62510-02080-B0iCDE120,NDE120,ZZE120,121..UKP..3D..TERRA200405-200607

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main62510-02090-B0iCDE120,ZZE12#..UKP..3D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200307

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main62510-02091-B1iCDE120,ZZE12#..UKP..3D..(SOL,TSP)200307-200405

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main62510-02091-B1iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#

main62510-02100-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

IVORY,TRIM0#

main62510-02100-B0iCDE120,NDE120,ZZE120,121..UKP..3D..TERRA200405-200702

DOOR TRIM=TYPE B OR TYPE D-*104,DK.GRAY,TRIM1#

62520PPANEL ASSY, QUARTER TRIM, FRONT LH

main62520-02050-B1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DK.GRAY,TRIM1#

main62520-02050-J1iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DK.BLUE,TRIM8#

main62520-02060-B0iZZE123..UKP..3D200405-200702

DK.GRAY,TRIM1#

main62520-02060-B0iZZE123..UKP..3D200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main62520-02070-A0iCDE120..UKP..3D..HDCR200111-200405

IVORY,TRIM0#

main62520-02070-B0iCDE120,ZZE120,121..UKP..3D..SOL..(DCR,DCRL,HTWC)200111-200405

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main62520-02080-B0iCDE120,NDE120,ZZE120,121..UKP..3D..TERRA200405-200607

DOOR TRIM=TYPE A-*104,DK.GRAY,TRIM1#

main62520-02090-B0iCDE120,ZZE12#..UKP..3D..(SOL,TSP)..(DCR,DCRL,HTWC,TWC)200111-200307

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main62520-02091-B1iCDE120,ZZE12#..UKP..3D..(SOL,TSP)200307-200405

DOOR TRIM=TYPE B-*104,DK.GRAY,TRIM1#

main62520-02091-B1iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

DOOR TRIM=TYPE E-*104,DK.GRAY,TRIM1#

main62520-02100-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200405-200702

IVORY,TRIM0#

main62520-02100-B0iCDE120,NDE120,ZZE120,121..UKP..3D..TERRA200405-200702

DOOR TRIM=TYPE B OR TYPE D-*104,DK.GRAY,TRIM1#

62587CPLATE, QUARTER TRIM POCKET

main62587-02010-A0iCDE120..UKP..3D..HDCR200111-200702

IVORY,TRIM0#

main62587-02010-B0iCDE120,ZZE12#..UKP..3D..(DCR,DCRL,HTWC,TWC)200111-200702

DK.GRAY,TRIM1#

main62587-02010-J0iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DK.BLUE,TRIM8#

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-02020iCDE120,ZZE12#..UKP..3D¥3,040200111-200405

main67911-02030iCDE120,ZZE12#..UKP..5D200111-200405

main67911-12060iZZE123..UKP..3D¥3,040200405

main67911-12070iZZE123..UKP..5D¥2,190200405

main67911-12090iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200510

W(ORNAMENT)

main67911-12100iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200507

W(ORNAMENT)

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67912-02020iCDE120,ZZE12#..UKP..3D¥3,040200111-200405

main67912-02030iCDE120,NDE120,ZZE120,121..UKP..5D200111-200405

main67912-12030iZZE123..UKP..3D¥3,040200405

main67912-12040iZZE123..UKP..5D¥2,190200405

main67912-12060iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200510

W(ORNAMENT)

main67912-12070iCDE120,NDE120,ZZE120,121..UKP..5D..(SOL,TSP)200507

W(ORNAMENT)

67913PLATE, FRONT DOOR SCUFF, RH

main67913-02070-A0iCDE120,NDE120,ZZE120,121..UKP..3D..(SOL,TSP)200111-200702

IVORY,TRIM0#

main67913-02070-B0iZZE123..UKP..3D200111-200702

DK.GRAY,TRIM1#

main67913-02070-B0iZZE123..UKP..3D200405-200511

DK.GRAY,TRIM15

main67913-02070-B1iCDE120,NDE120,ZZE120,121..UKP..3D200405-200510

LT.GRAY,TRIM1#

main67913-02070-B1iZZE123..UKP..3D200405-200511

LT.GRAY,TRIM15

main67913-02070-J0iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DK.BLUE,TRIM8#

main67913-02080-A0iCDE120,NDE120,ZZE120,121..UKP..LHD..5D..(SOL,TSP)200111-200702

IVORY,TRIM0#

main67913-02080-B0iCDE120,NDE120,ZZE12#..UKP..5D200111-200702

DK.GRAY,TRIM1#

main67913-02080-J0iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DK.BLUE,TRIM8#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-02070-A0iCDE120..UKP..3D..HDCR200111-200702

IVORY,TRIM0#

main67914-02070-B0iZZE123..UKP..3D200111-200702

DK.GRAY,TRIM1#

main67914-02070-B0iZZE123..UKP..3D200405-200511

DK.GRAY,TRIM15

main67914-02070-B1iCDE120,NDE120,ZZE120,121..UKP..3D200405-200510

LT.GRAY,TRIM1#

main67914-02070-B1iZZE123..UKP..3D200405-200511

LT.GRAY,TRIM15

main67914-02070-J0iCDE120,ZZE120,121..UKP..3D..TERRA200111-200405

DK.BLUE,TRIM8#

main67914-02080-A0iCDE120..UKP..5D..HDCR200111-200702

IVORY,TRIM0#

main67914-02080-B0iCDE120,ZZE12#..UKP..5D..(DCR,DCRL,HTWC,TWC)200111-200702

DK.GRAY,TRIM1#

main67914-02080-J0iCDE120,ZZE120,121..UKP..5D..TERRA200111-200405

DK.BLUE,TRIM8#

6792353010CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-53010¥360

6792446010CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-46010¥240

9011906390

main90119-06390¥70

90119W0017

main90119-W0017¥90

9046708188

main90467-08188¥80

9046710161

main90467-10161¥90

90467W0005

main90467-W0005¥80

90467W0007

main90467-W0007¥80

9046804157

main90468-04157¥80

31 parts on this diagram · 4 diagrams in section
