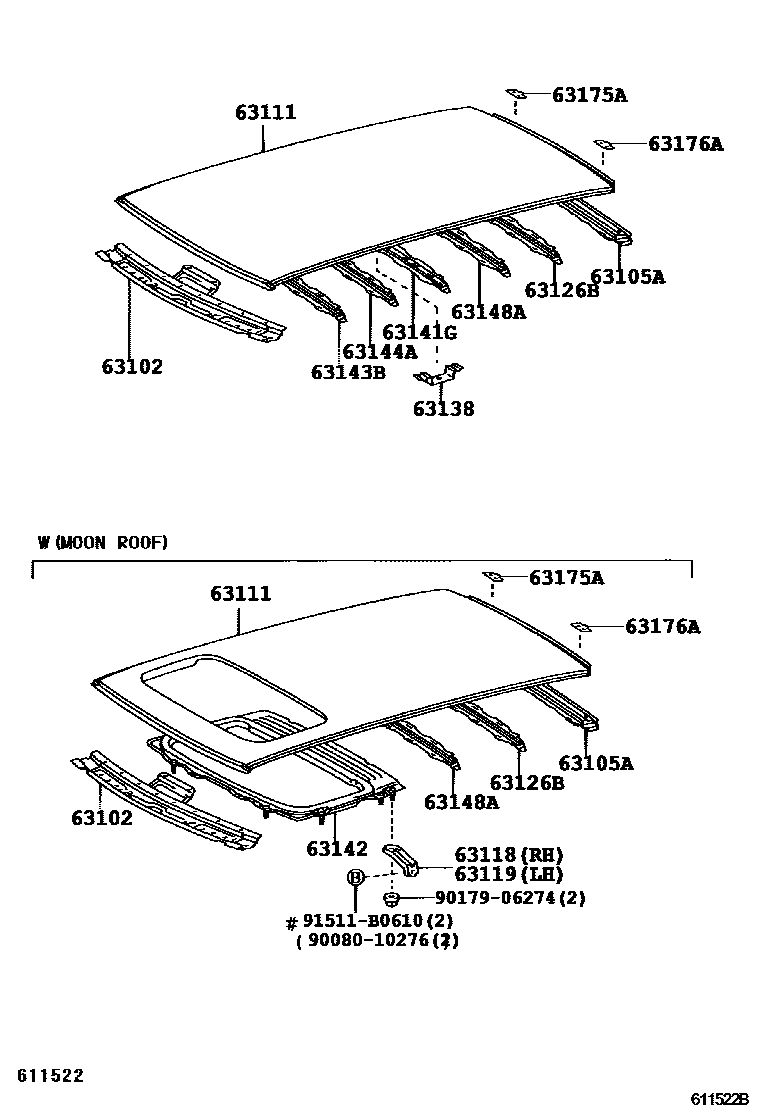

ROOF PANEL & BACK WINDOW GLASS
63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT
W(MOON ROOF)
63105AFRAME SUB-ASSY, BACK DOOR OPENING
63111PANEL, ROOF
W(MOON ROOF)
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63126BREINFORCEMENT, ROOF PANEL, REAR NO.2
(L)
(J)
63138BRACKET, DOME LAMP, NO.2
63141GREINFORCEMENT, ROOF PANEL, NO.1
(L)
(J)
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
(L)
(J)
63144AREINFORCEMENT, ROOF PANEL, NO.4
(L)
(J)
63148AREINFORCEMENT, ROOF PANEL, NO.7
(L)
(J)
63175AREINFORCEMENT, BACK DOOR HINGE FEMALE, RH
63176AREINFORCEMENT, BACK DOOR HINGE FEMALE, LH
9008010276
main90080-10276
9017906274
main90179-06274
91511B0610
main91511-B0610
17 parts on this diagram · 3 diagrams in section
