QUARTER WINDOW

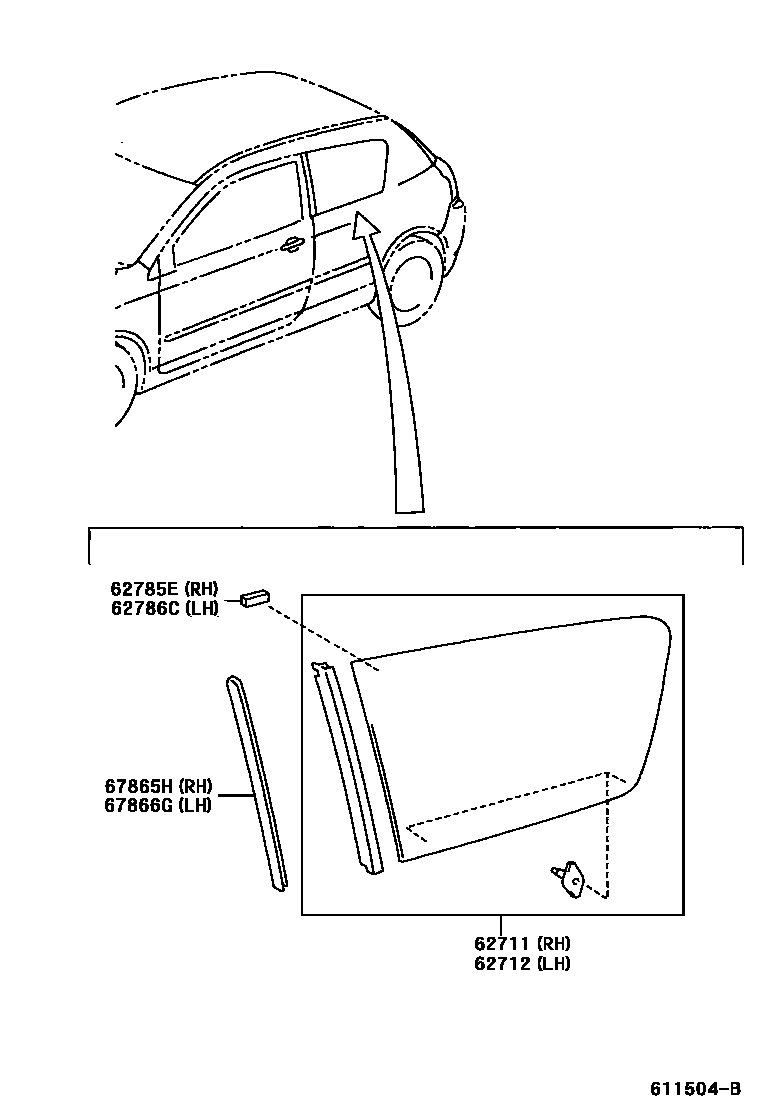

Parts diagram

62711GLASS, QUARTER WINDOW, RH

main62710-02030i200111-200405

*TEM,T=3.1,GREEN

62712GLASS, QUARTER WINDOW, LH

main62720-02030i200111-200405

*TEM,T=3.1,GREEN

62785ESPACER, QUARTER WINDOW GLASS, RH

main62785-16030i200111-200405

62786CSPACER, QUARTER WINDOW GLASS, LH

main62785-16030i200111-200405

67865HWEATHERSTRIP, CENTER PILLAR UPPER END, RH

main67865-02010i200111-200405

67866GWEATHERSTRIP, CENTER PILLAR UPPER END, LH

main67866-02010i200111-200405

6 parts on this diagram · 1 diagram in section
