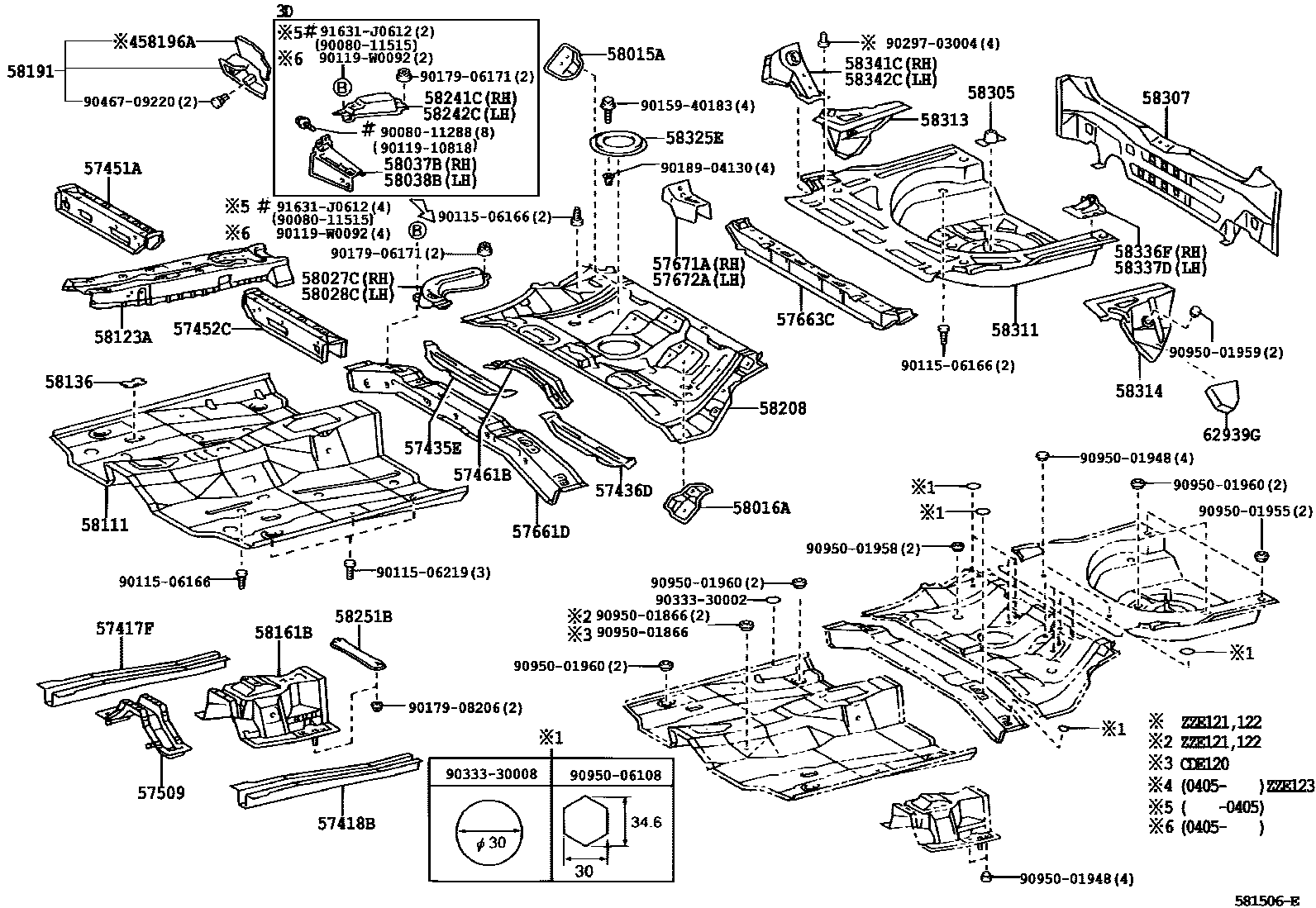

FLOOR PAN & LOWER BACK PANEL

57417FREINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-02050iCDE120,NDE120,ZZE12#..UKP200111-200405

57418BREINFORCEMENT, FRONT FLOOR UNDER, LH

main57417-02050iCDE120,ZZE12#..UKP200111-200405

57435EMEMBER, CENTER FLOOR SIDE, RH

main57435-02010iCDE120,ZZE12#..UKP200111-200405

57436DMEMBER, CENTER FLOOR SIDE, LH

main57436-02010iCDE120,ZZE12#..UKP200111-200405

57451AMEMBER, FRONT FLOOR CROSS, RH

main57451-02050iCDE120,ZZE12#..UKP200111-200601

main57451-02051iCDE120,NDE120,ZZE12#..UKP200601

57452CMEMBER, FRONT FLOOR CROSS, LH

main57452-02020iCDE120,ZZE12#..UKP200111-200405

57461BMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57461-02040iCDE120,NDE120,ZZE12#..UKP200111-200405

57509REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER

main57509-02010iCDE120,ZZE12#..UKP200111-200405

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57407-02040iCDE120,NDE120,ZZE12#..UKP..5D200111-200405

main57407-02050iCDE120,ZZE12#..UKP..3D200111-200405

57663CMEMBER, REAR FLOOR CROSS, CENTER

main57663-02010iCDE120,ZZE12#..UKP200111-200405

57671ASTAY, REAR FLOOR SIDE MEMBER, RH

main57671-02010iCDE120,NDE120,ZZE12#..UKP200111-200405

57672ASTAY, REAR FLOOR SIDE MEMBER, LH

main57672-02010iCDE120,NDE120,ZZE12#..UKP200111-200405

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02051iCDE120,ZZE12#..UKP200301-200405

(L)

main58015-02051iCDE120,NDE120,ZZE12#..UKP200405

main58015-13060iCDE120,ZZE12#..UKP200111-200307

(J)

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02081iCDE120,ZZE12#..UKP200301-200405

(L)

main58016-02081iCDE120,NDE120,ZZE12#..UKP200405

main58016-13030iCDE120,ZZE12#..UKP200111-200307

(J)

58027CPANEL SUB-ASSY, CENTER FLOOR SIDE, RH

main58027-02020iCDE120,ZZE12#..UKP..5D200111-200405

58028CPANEL SUB-ASSY, CENTER FLOOR SIDE, LH

main58028-02010iCDE120,NDE120,ZZE12#..UKP..5D200111-200405

58037BREINFORCE, CENTER PILLAR TO FLOOR, RH

main58037-02010iCDE120,ZZE12#..UKP..3D200111-200405

58038BREINFORCE, CENTER PILLAR TO FLOOR, LH

main58038-02010iCDE120,ZZE12#..UKP..3D200111-200405

58111PAN, FRONT FLOOR

main58111-02901iCDE120,ZZE12#..UKP200111-200505

main58111-02914iCDE120,NDE120,ZZE12#..UKP200506

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-02030iCDE120,ZZE12#..UKP200111-200405

58136COVER, FRONT FLOOR HOLE

main58136-02020iCDE120,NDE120,ZZE12#..UKP200405

main58136-02020iCDE120,ZZE12#..UKP200301-200405

(L)

main58136-33010iCDE120,ZZE12#..UKP200111-200405

(J)

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main57805-02010iCDE120,NDE120,ZZE12#..UKP..RHD200111-200405

main57805-02020iCDE120,NDE120,ZZE12#..UKP..LHD200111-200405

58191FOOTREST, FRONT FLOOR

main58190-02010iZZE123..UKP..RHD200405

main58190-02020iZZE123..UKP..LHD200405

main58191-02030iCDE120,ZZE12#..UKP..RHD200111-200405

main58192-02030iCDE120,NDE120,ZZE120,121..UKP..LHD200111-200405

58196ATRIM, FOOTREST

main58196-02010iZZE123..UKP..RHD200405

main58196-02020iZZE123..UKP..LHD200405

58208PAN, CENTER FLOOR

main58211-02100iCDE120,ZZE12#..UKP200111-200405

58241CPANEL, FLOOR SIDE, RH

main58241-02020iCDE120,ZZE12#..UKP..3D200111-200405

58242CPANEL, FLOOR SIDE, LH

main58242-02020iCDE120,ZZE12#..UKP..3D200111-200405

58251BBRACE, FLOOR PANEL, FRONT

main58251-12030iCDE120,ZZE12#..UKP200111-200405

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iCDE120,NDE120,ZZE12#..UKP200111-200405

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-02100iCDE120..UKP..HDCR200111-200702

58311PAN, REAR FLOOR

main58311-02070iCDE120,ZZE12#..UKP200111-200405

sub58311-02071

main58311-02071iCDE120,NDE120,ZZE12#..UKP200405

58313PANEL, REAR FLOOR SIDE, RH

main58313-02020iCDE120,ZZE12#..UKP200111-200405

58314PANEL, REAR FLOOR SIDE, LH

main58314-02020iCDE120,ZZE12#..UKP200111-200405

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-13020iCDE120,ZZE12#..UKP200111-200405

58336FREINFORCEMENT, REAR FLOOR PAN, RH

main58336-02060iCDE120,ZZE12#..UKP200111-200405

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-02010iCDE120,ZZE12#..UKP200111-200405

58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH

main58341-02020iCDE120,ZZE12#..UKP200111-200405

58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH

main58342-02020iCDE120,ZZE12#..UKP200111-200405

62939GSILENCER, QUARTER VENT

main62939-02010iCDE120,ZZE12#..UKP200111-200405

9008011288

main90080-11288

9008011515

main90080-11515

9011506166

main90115-06166

9011506219

main90115-06219

9011910818

main90119-10818

90119W0092

main90119-W0092

9015940183

main90159-40183

9017906171

main90179-06171

9017908206

main90179-08206

9018904130

main90189-04130

9029703004

main90297-03004

9033330002

main90333-30002

9033330008

main90333-30008

9046709220

main90467-09220

9095001866

main90950-01866

9095001948

main90950-01948

9095001955

main90950-01955

9095001958

main90950-01958

9095001959

main90950-01959

9095001960

main90950-01960

9095006108

main90950-06108

91631J0612

main91631-J0612

61 parts on this diagram · 1 diagram in section
