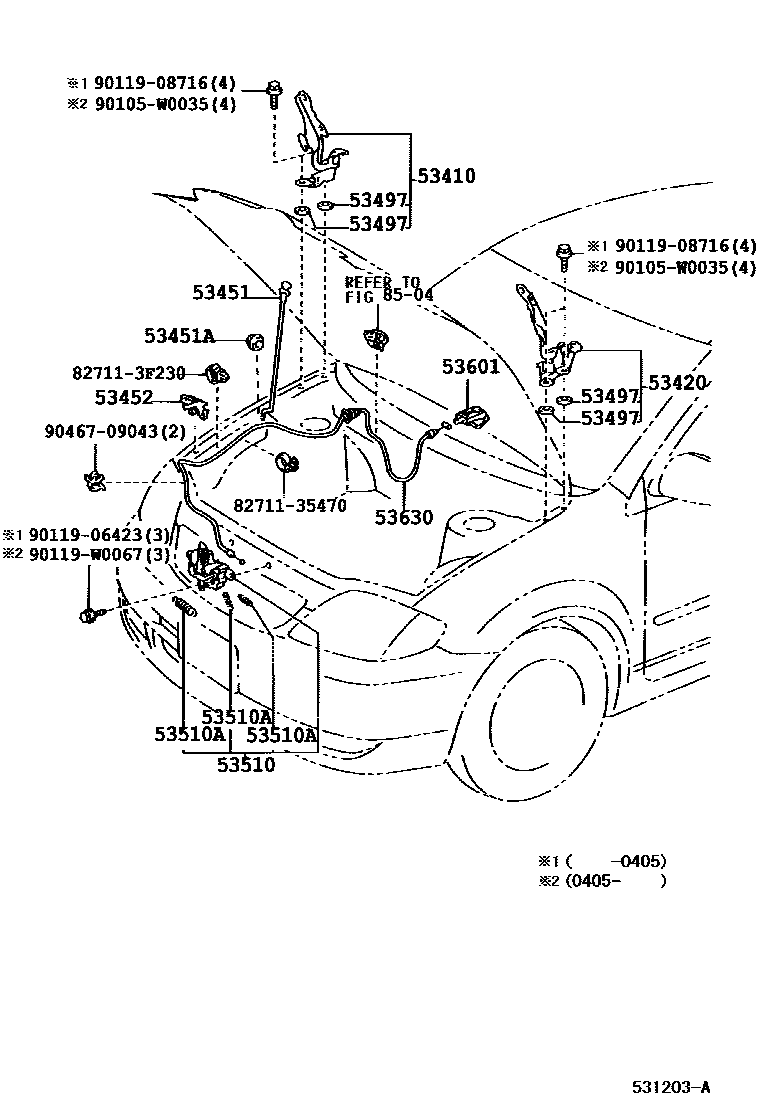

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-02050iCDE120,NDE120,ZZE12#..UKP200111-200702

sub53410-12410

sub53497-12060

53420HINGE ASSY, HOOD, LH

main53420-02050iCDE120..UKP..HDCR200111-200702

sub53420-12330

sub53497-12060

53451ROD, HOOD SUPPORT

main53440-12030iCDE120,NDE120,ZZE12#..UKP200111-200405

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15034iCDE120,ZZE12#..UKP200111-200405

53452HOLDER, HOOD STAY

main53452-02020iCDE120,ZZE12#..UKP200111-200405

53497PAD, HOOD HINGE, NO.1

main53497-05010iCDE120,ZZE12#..UKP200111-200405

T=1.0

53510LOCK ASSY, HOOD

main53510-02140iCDE120,ZZE12#..UKP..LHD200111-200301

sub53510-02200

main53510-02190iCDE120,NDE120,ZZE12#..UKP..RHD200111-200405

sub53510-12860

main53510-02200iCDE120,NDE120,ZZE12#..UKP..LHD200301-200609

sub53510-02201

main53510-02201iCDE120,NDE120,ZZE12#..UKP..LHD200610

53510ASPRING, TENSION(FOR HOOD LOCK)

main90080-50258iCDE120,ZZE12#..UKP200111-200405

WD=1.6,CW=15

main90080-50265iCDE120,ZZE12#..UKP200111-200609

WD=1.2,CW=8.5

sub90506-12063

main90080-50266iCDE120,NDE120,ZZE12#..UKP..RHD200111-200609

WD=0.9,CW=20.75

main90080-50365iCDE120,NDE120,ZZE12#..UKP..LHD200301-200609

WD=1.8,CW=16

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-A0iCDE120..UKP..HDCR200301-200405

IVORY,TRIM0#,(L)

sub53601-05030

main53601-05030-A0iCDE120,NDE120,ZZE120,121..UKP..(SOL,TSP)200405-200702

IVORY,TRIM0#

sub53601-05030

main53601-05030-B0iCDE120..UKP..HDCR200301-200405

DK.GRAY,TRIM1#,(L)

sub53601-05030

main53601-05030-B0iCDE120,NDE120,ZZE12#..UKP200405-200702

DK.GRAY,TRIM1#

sub53601-05030

main53601-05030-J0iCDE120,ZZE120,121..UKP..TERRA200301-200405

DK.BLUE,TRIM8#,(L)

sub53601-05030

main53601-52010-A0iCDE120,ZZE120,121..UKP..SOL200111-200301

IVORY,TRIM0#

sub53601-52010

main53601-52010-A0iCDE120..UKP..HDCR200301-200405

IVORY,TRIM0#,(J)

sub53601-52010

main53601-52010-B3iCDE120..UKP..HDCR200301-200405

DK.GRAY,TRIM1#,(J)

sub53601-52010

main53601-52010-B3iCDE120,ZZE12#..UKP200111-200301

DK.GRAY,TRIM1#

sub53601-52010

main53601-52010-J0iCDE120,ZZE120,121..UKP..TERRA200301-200405

DK.BLUE,TRIM8#,(J)

sub53601-52010

main53601-52010-J0iCDE120,ZZE120,121..UKP..TERRA200111-200301

DK.BLUE,TRIM8#

sub53601-52010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02100iCDE120,NDE120,ZZE12#..UKP200607

main53630-02110iCDE120,ZZE12#..UKP200301-200405

(L)

sub53630-02100

main53630-02110iCDE120,NDE120,ZZE12#..UKP200405-200606

sub53630-02100

main53630-12510iCDE120,ZZE12#..UKP200301-200405

(J)

main53630-12510iCDE120,ZZE12#..UKP200111-200301

8504

8271135470WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35470

827113F230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F230

90105W0035

main90105-W0035

9011906423

main90119-06423

9011908716

main90119-08716

90119W0067

main90119-W0067

9046709043

main90467-09043

18 parts on this diagram · 2 diagrams in section
