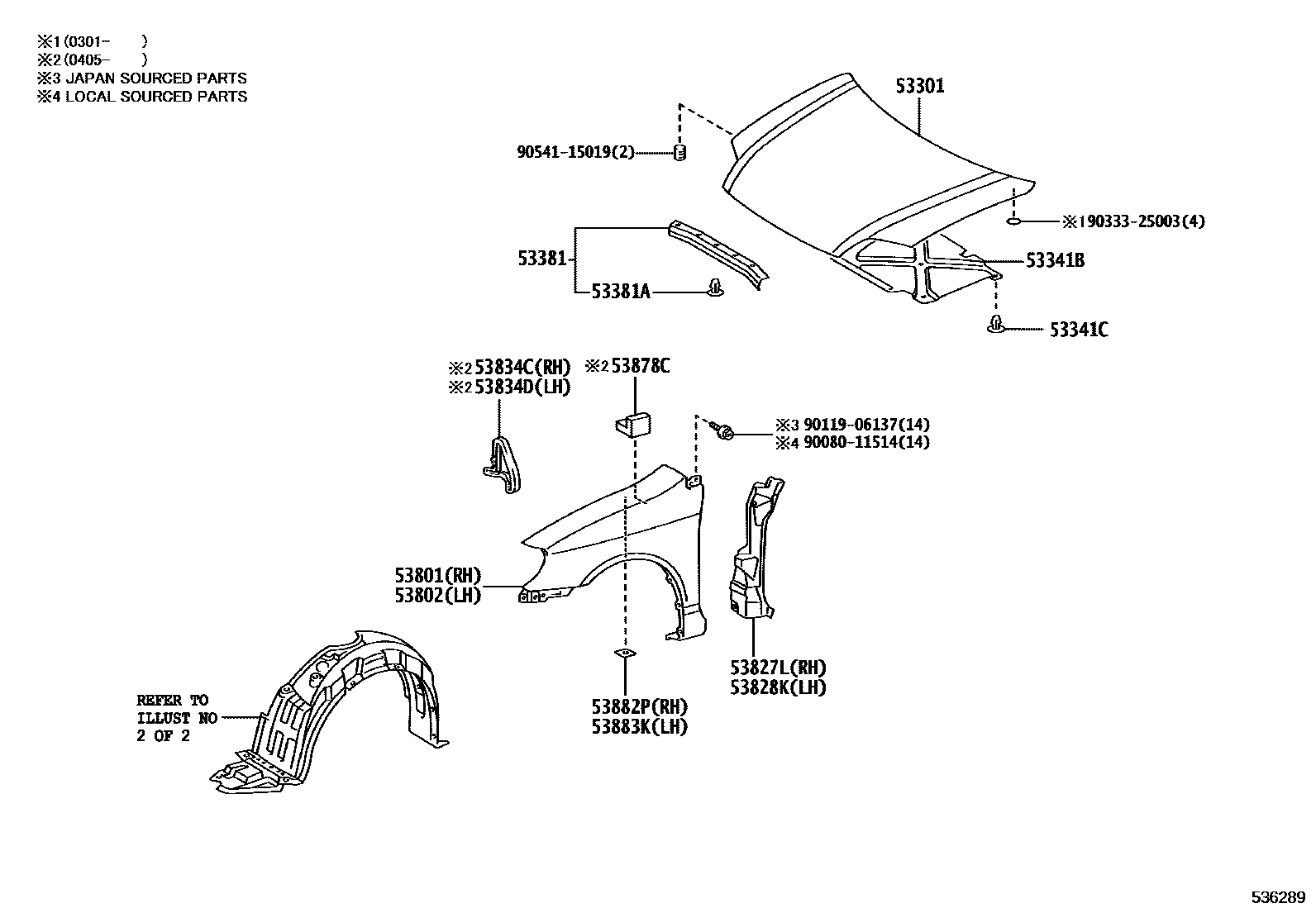

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-02090iCDE120..UKP..HDCR200111-200702

53341BINSULATOR, HOOD

main53341-02050iCDE120,ZZE12#..UKP200111-200405

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iCDE120,ZZE12#..UKP¥120200306-200405

(J)

main90467-09050iCDE120,ZZE12#..UKP¥120200111-200306

main90467-W0003iCDE120,NDE120,ZZE12#..UKP¥130200306-200405

(L)

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-02050iCDE120,NDE120,ZZE12#..UKP200111-200405

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCDE120,ZZE12#..UKP¥100200111-200405

53801FENDER SUB-ASSY, FRONT RH

main53811-02090iCDE120,ZZE12#..UKP..(DCR,DCRL,HTWC,TWC)200111-200702

main53811-02140iNDE120..UKP..RHD;ZZE120,121..UKP..RHD..3D200405-200702

W(SIDE MUDGUARD)

53802FENDER SUB-ASSY, FRONT LH

main53812-02090iCDE120..UKP..HDCR200111-200702

main53812-02140iZZE123..UKP200405-200702

W(SIDE MUDGUARD)

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02020iCDE120,ZZE12#..UKP200111-200405

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02020iCDE120,ZZE12#..UKP200111-200405

53834CPLATE, FRONT FENDER SUPPORT, RH

main53834-02010iCDE120,NDE120,ZZE12#..UKP200405

53834DPLATE, FRONT FENDER SUPPORT, LH

main53834-02010iCDE120,NDE120,ZZE12#..UKP200405

53878CSPACER, FRONT FENDER

main53878-02010iCDE120,NDE120,ZZE12#..UKP200405

53882PSEAL, FRONT FENDER, RH

main53882-16030iCDE120,ZZE12#..UKP¥60200111-200405

53883KSEAL, FRONT FENDER, LH

main53882-16030iCDE120,ZZE12#..UKP¥60200111-200405

9008011514

main90080-11514¥110

9011906137

main90119-06137¥70

9033325003

main90333-25003¥70

9054115019

main90541-15019¥200

18 parts on this diagram · 2 diagrams in section
