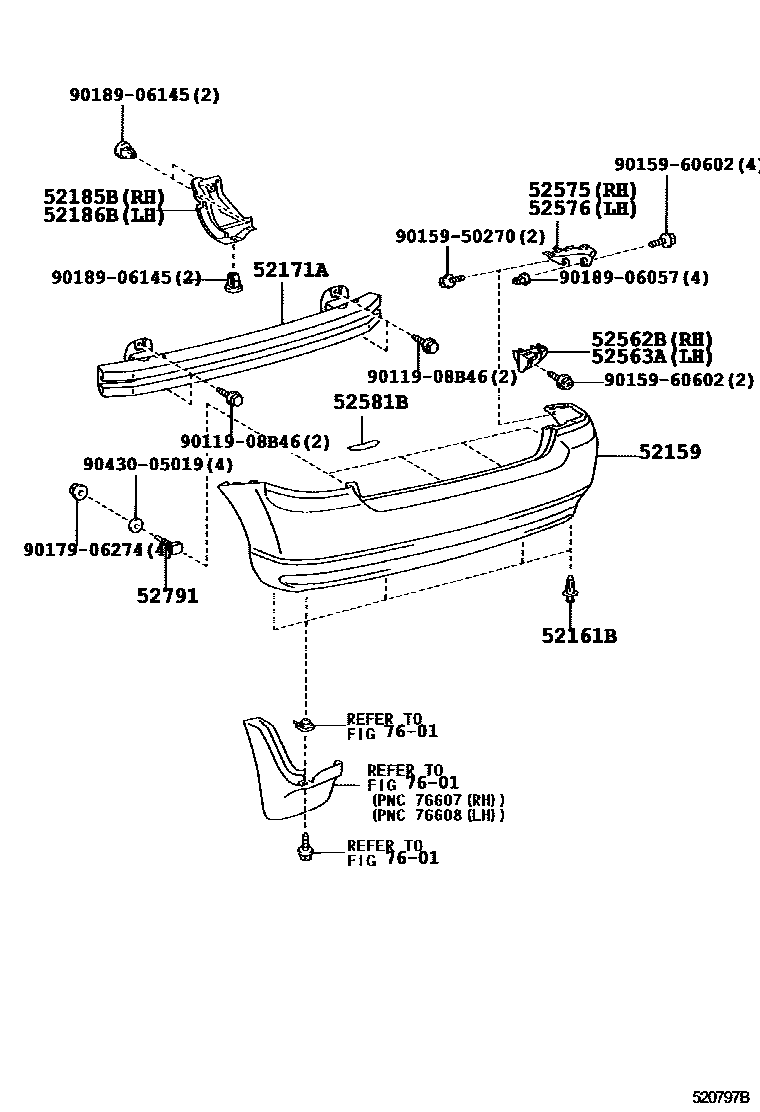

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52159COVER, REAR BUMPER

main52159-02910iCDE120..UKP..HDCR200111-200405

main52159-02923iZZE123..UKP200405-200702

W(BUMPER SPOILER)

main52159-02924iCDE120,NDE120,ZZE120,121..UKP200405-200702

52161BPIECE, REAR BUMPER

main52161-02030iCDE120,ZZE12#..UKP200306-200405

(L)

main52161-16010iCDE120,ZZE12#..UKP200306-200405

(J)

sub52161-0K040

main52161-16010iCDE120,ZZE12#..UKP200111-200306

sub52161-0K040

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52023-02060iCDE120..UKP..HDCR200111-200702

sub52023-12210

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-02040iCDE120,NDE120,ZZE12#..UKP200111-200405

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-02030iCDE120,NDE120,ZZE12#..UKP200111-200405

52562BRETAINER, REAR BUMPER, UPPER RH

main52562-02010iCDE120,ZZE12#..UKP200111-200405

52563ARETAINER, REAR BUMPER, UPPER LH

main52563-02010iCDE120,ZZE12#..UKP200111-200405

52575RETAINER, REAR BUMPER SIDE, RH

main52575-02040iCDE120,ZZE12#..UKP200111-200405

main52575-02060iCDE120,NDE120,ZZE12#..UKP200405

52576RETAINER, REAR BUMPER SIDE, LH

main52576-02040iCDE120,ZZE12#..UKP200111-200405

main52576-02060iCDE120,NDE120,ZZE12#..UKP200405

52581BPROTECTOR, REAR BUMPER

main52581-02020iCDE120,ZZE12#..UKP200111-200405

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040iCDE120,ZZE12#..UKP200111-200405

7601

9011908B46

main90119-08B46

9015950270

main90159-50270

9015960602

main90159-60602

9017906274

main90179-06274

9018906057

main90189-06057

9018906145

main90189-06145

9043005019

main90430-05019

19 parts on this diagram · 2 diagrams in section
