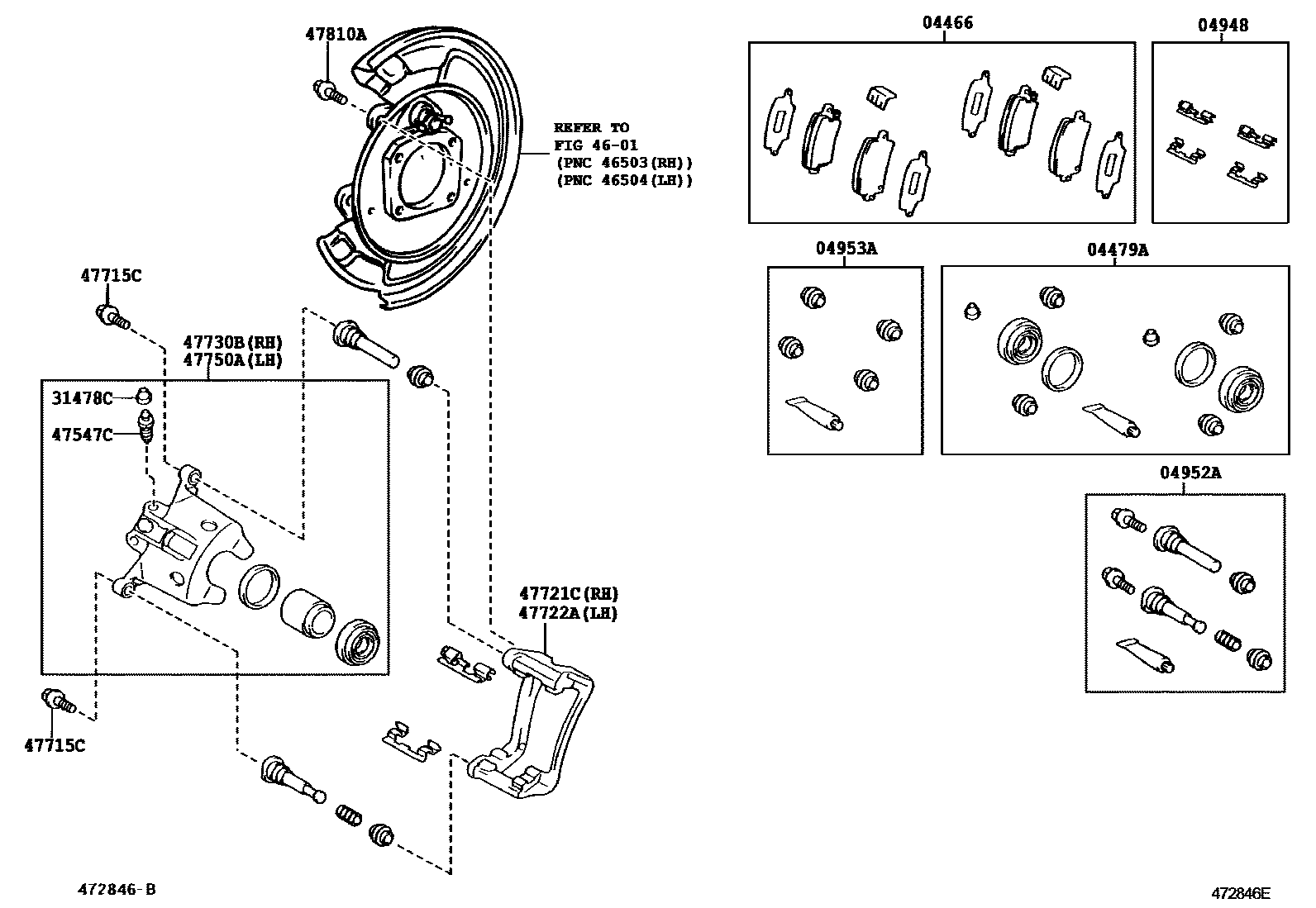

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02070iCDE120,NDE120,ZZE12#..UKP200111-200702

MARK TRW FER 4088F

sub04466-02160

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02090iCDE120,ZZE12#..UKP200111-200405

04948FITTING KIT, DISC BRAKE, REAR

main04948-02030iCDE120,ZZE12#..UKP200111-200405

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04952-02040iCDE120,ZZE12#..UKP200111-200405

sub04956-09020

main04956-09020iCDE120,NDE120,ZZE12#..UKP200405-200702

04953ABOOT KIT, REAR DISC BRAKE CYLINDER SLIDE PIN

main04953-02020iCDE120,NDE120,ZZE12#..UKP200405

main04953-02040iCDE120,ZZE12#..UKP200111-200405

sub04953-02020

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main47548-02010iCDE120,ZZE12#..UKP200111-200405

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-05011iCDE120,ZZE12#..UKP200111-200611

sub47547-05012

main47547-05012iCDE120,NDE120,ZZE12#..UKP200612

main90080-93014iCDE120,NDE120,ZZE12#..UKP200405-200410

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-02090iCDE120,NDE120,ZZE12#..UKP200111-200611

sub47715-02091

main47715-02091iCDE120,NDE120,ZZE12#..UKP200612

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-02110iCDE120,ZZE12#..UKP200111-200611

sub47721-02111

main47721-02111iCDE120,NDE120,ZZE12#..UKP200612

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-02110iCDE120,ZZE12#..UKP200111-200611

sub47722-02111

main47722-02111iCDE120,NDE120,ZZE12#..UKP200612

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-02110iCDE120,ZZE12#..UKP200111-200611

sub47730-02111

main47730-02111iCDE120,NDE120,ZZE12#..UKP200612

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-02110iCDE120,ZZE12#..UKP200111-200611

sub47750-02111

main47750-02111iCDE120,NDE120,ZZE12#..UKP200612

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10263iCDE120,ZZE12#..UKP200111-200405

14 parts on this diagram · 1 diagram in section
