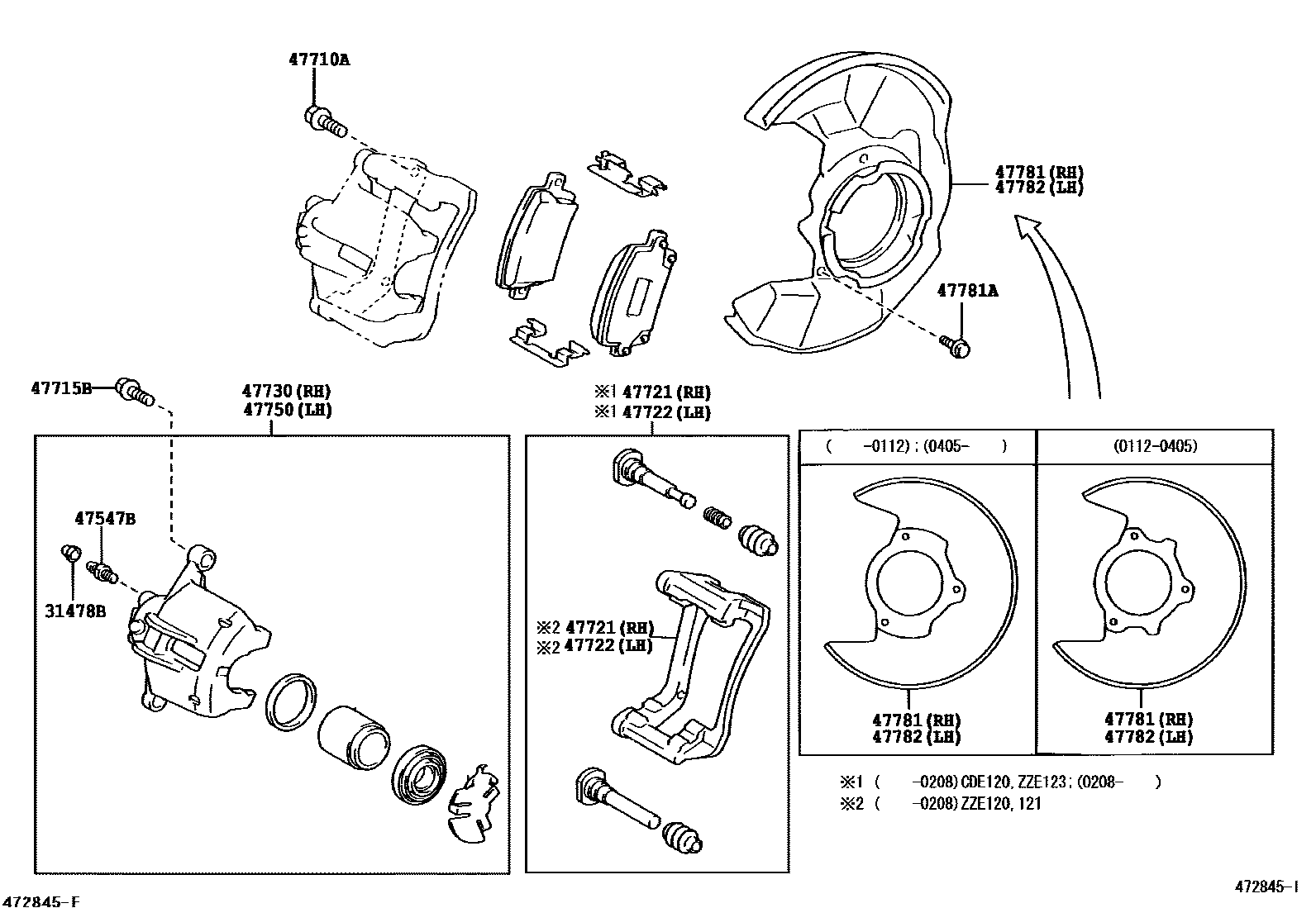

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-02010iCDE120,ZZE12#..UKP200111-200405

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-05011iCDE120,NDE120,ZZE12#..UKP200410-200611

sub47547-05012

main47547-05012iCDE120,NDE120,ZZE12#..UKP200612

main90080-93014iCDE120,ZZE12#..UKP200111-200410

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iCDE120,ZZE12#..UKP200111-200702

*12-1.25PX29.5-23

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main47715-02091iCDE120,NDE120,ZZE12#..UKP200612

main90080-10190iCDE120,ZZE12#..UKP200111-200611

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-02090iZZE120,121..UKP200111-200208

sub47721-09160

main47721-09060iCDE120,NDE120,ZZE123..UKP200111-200612

sub47721-09380

main47721-09160iZZE120,121..UKP200208-200612

sub47721-09400

main47721-09380iCDE120,NDE120,ZZE123..UKP200612

main47721-09400iZZE120,121..UKP200612

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-02170iZZE120,121..UKP200111-200208

sub47721-09170

main47721-09090iCDE120,ZZE123..UKP200111-200612

sub47721-09390

main47721-09170iZZE120,121..UKP200208-200612

sub47721-09410

main47721-09390iCDE120,NDE120,ZZE123..UKP200612

main47721-09410iZZE120,121..UKP200612

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-02100iCDE120,ZZE12#..UKP200111-200611

sub47730-02101

main47730-02101iCDE120,NDE120,ZZE12#..UKP200612

main47730-02190iZZE120,121..UKP200111-200208

sub47730-02100

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-02100iCDE120,ZZE123..UKP200111-200611

sub47750-02101

main47750-02101iCDE120,NDE120,ZZE12#..UKP200612

main47750-02190iZZE120,121..UKP200111-200208

sub47750-02100

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-02040iCDE120,NDE120,ZZE12#..UKP200111-200702

sub47781-02070

main47781-12240iCDE120,ZZE12#..UKP200112-200405

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11525iCDE120,ZZE12#..UKP200111-200405

(L)

main90080-11525iCDE120,NDE120,ZZE12#..UKP200405-200702

main90119-06227iCDE120,ZZE12#..UKP200111-200405

(J)

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-02040iCDE120,ZZE12#..UKP200111-200702

sub47782-02070

main47782-12240iCDE120,ZZE12#..UKP200112-200405

11 parts on this diagram · 2 diagrams in section
