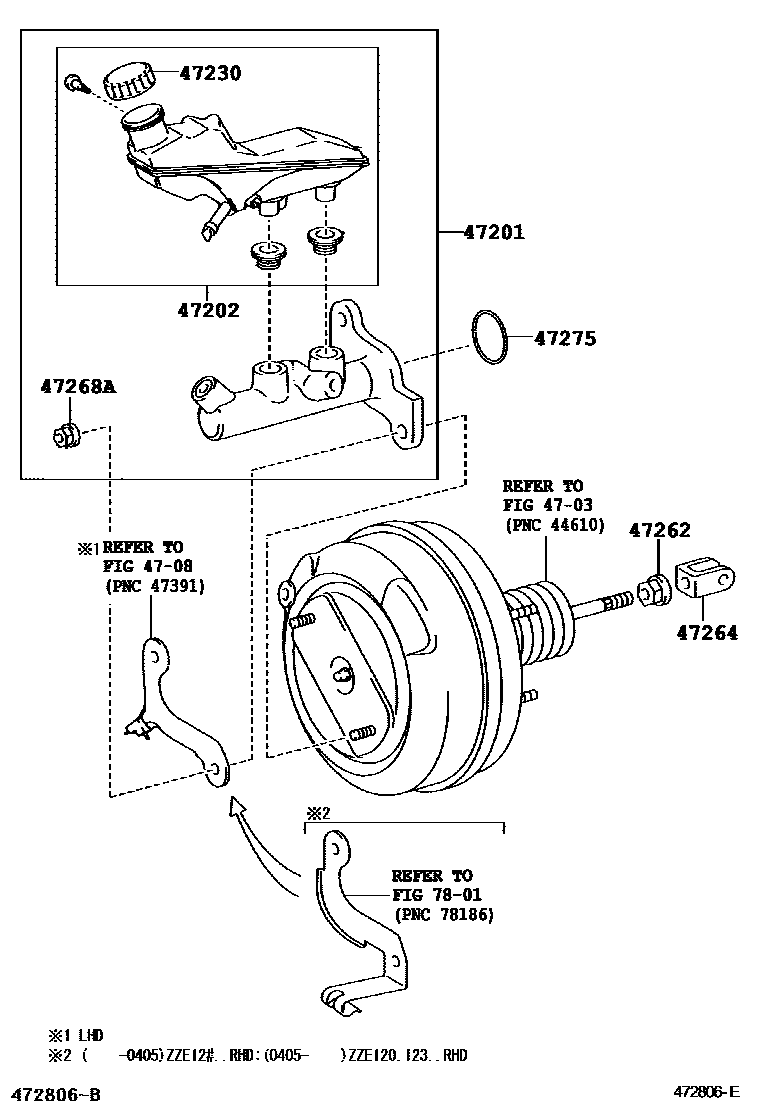

BRAKE MASTER CYLINDER

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09040iCDE120,ZZE120,121..UKP..RHD200111-200612

sub47201-09270

main47201-09050iZZE121..UKP..RHD200111-200510

W(VSC)

sub47201-09280

main47201-09050iZZE123..UKP..RHD200405-200612

sub47201-09280

main47201-09060iCDE120,ZZE120,121..UKP..LHD200111-200612

sub47201-09250

main47201-09070iZZE121..UKP..LHD200111-200612

W(VSC)

sub47201-09260

main47201-09250iCDE120,NDE120,ZZE120,121..UKP..LHD200612

sub47201-09470

main47201-09260iZZE123..UKP..LHD200612

W(VSC)

sub47201-09480

main47201-09270iCDE120,NDE120,ZZE120,121..UKP..RHD200612

sub47201-09420

main47201-09280iZZE123..UKP..RHD200612

sub47201-09460

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-09010iCDE120,NDE120,ZZE12#..UKP..RHD200111-200405

main47220-09020iCDE120,NDE120,ZZE12#..UKP..LHD200111-200405

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-02100iCDE120,ZZE12#..UKP200111-200405

47262NUT, MASTER CYLINDER PUSH ROD

main47262-02010iCDE120,ZZE12#..UKP200111-200611

sub47262-02011

main47262-02011iCDE120,NDE120,ZZE12#..UKP200612

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-02020iCDE120,ZZE12#..UKP..LHD200111-200405

main47264-02050iCDE120,ZZE12#..UKP..RHD200111-200405

47268ANUT, BRAKE MASTER CYLINDER

main47268-02010iCDE120,ZZE12#..UKP200111-200611

main47268-0K030iCDE120,NDE120,ZZE12#..UKP200612

47275GASKET, BRAKE MASTER CYLINDER

main47275-02010iCDE120,ZZE12#..UKP200111-200405

7801

10 parts on this diagram · 1 diagram in section
