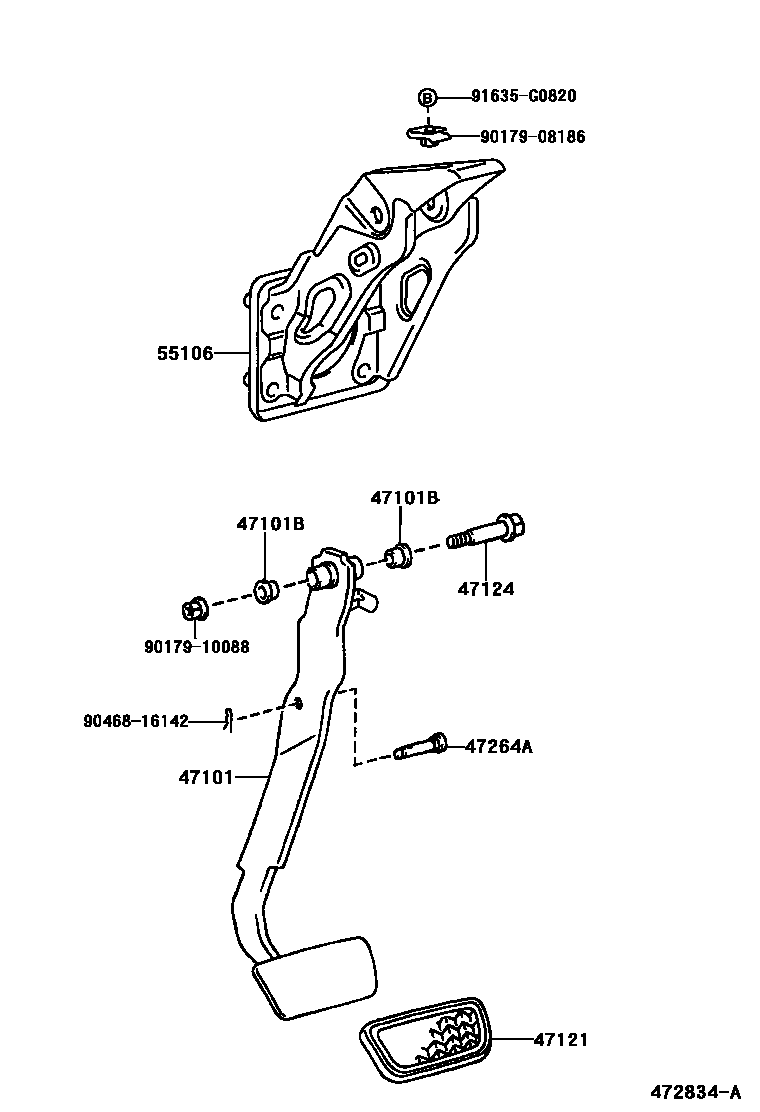

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02070iCDE120,ZZE12#..LHD..MTM..(DCRL,HTWC,TWC)200111-200405

main47101-02080iZZE121..LHD..4FC..SOL;ZZE121..LHD..5D..4FC..TERRA200111-200405

main47101-02090iCDE120..RHD..3D;ZZE121..RHD..3D..5F..SOL;CDE120,ZZE123..RHD..5D..(DCR,HDCR,TWC)200111-200405

main47101-02100iZZE121..RHD..4FC..TERRA;ZZE121..RHD..5D..4FC..SOL200111-200405

main47101-02190iZZE123..UKP..RHD200405

main47101-02200iZZE123..UKP..LHD200405

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iCDE120,NDE120,ZZE12#..UKP200111-200405

47121PAD, BRAKE PEDAL

main31321-52010iZZE123..RHD..5D;CDE120..DCR,HDCR;CDE120..RHD..3D..DCRL;ZZE121..RHD..3D..5F..SOL200111-200405

main31321-53010iZZE123..UKP200405

main47121-52010iNDE120,ZZE121..UKP..(4FC,5FS)200111-200405

47124SHAFT, BRAKE PEDAL

main90109-10174iZZE123..RHD..5D;CDE120..DCR,HDCR;ZZE121..RHD..3D..SOL;CDE120..RHD..3D..DCRL;ZZE121..LHD..3D..4FC..TERRA200111-200405

47264APIN(FOR PUSH ROD)

main47148-12070iZZE120..UKP;ZZE123..UKP..3D;ZZE121..UKP..5D..SOL;CDE120..UKP..5D..DCRL;ZZE121..UKP..RHD..TERRA;ZZE121..UKP..LHD..3D..SOL;CDE120..UKP..LHD..3D..DCRL;ZZE121..UKP..LHD200111-200405

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02050iCDE120,ZZE12#..UKP..RHD200111-200702

main55106-02060iCDE120,ZZE12#..UKP..LHD200111-200702

9017908186

main90179-08186

9017910088

main90179-10088

9046816142

main90468-16142

91635G0820

main91635-G0820

10 parts on this diagram · 1 diagram in section
