STEERING COLUMN & SHAFT

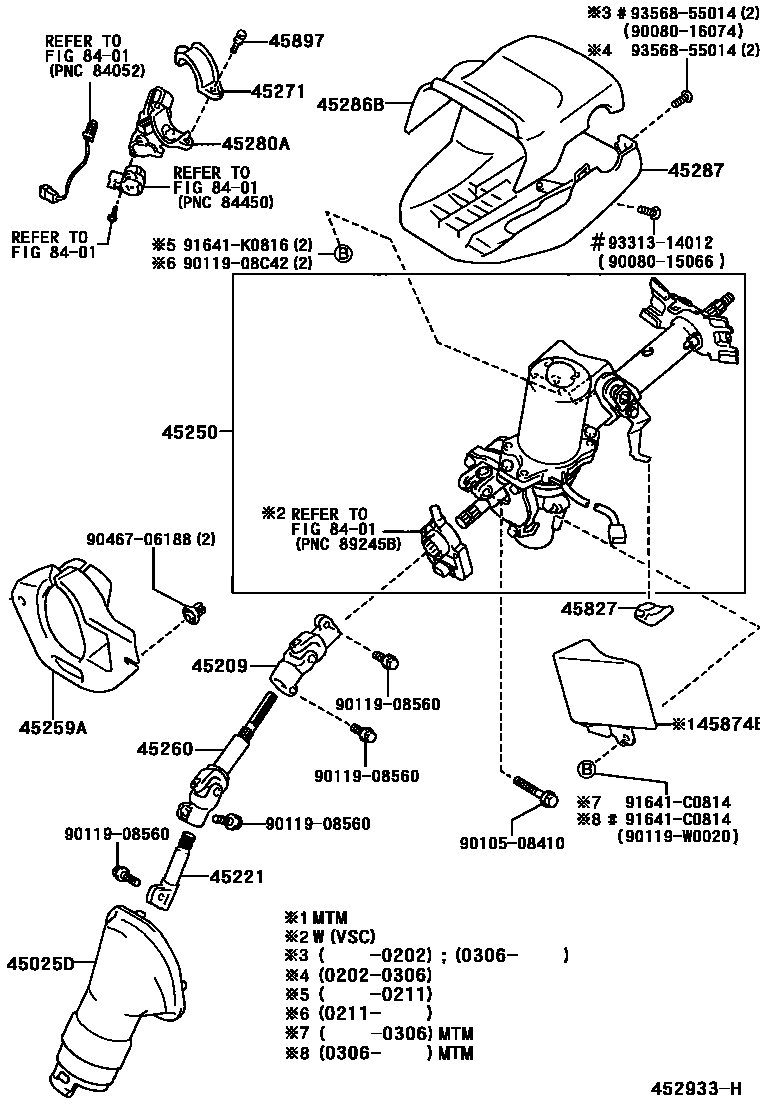

Parts diagram
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-02010i200405
main45025-02010i200301-200405
(L)
main45025-02060i200405
main45025-02060i200301-200405
(L)
main45025-02070i200405
main45025-02070i200301-200405
(L)
main45025-13050i¥7,400200111-200405
(J)
main45025-13060i¥6,500200111-200405
(J)
main45025-13070i¥7,400200111-200405
(J)
45209YOKE SUB-ASSY, STEERING SLIDING
main45209-02010i200111-200405
sub45209-02H00
main45209-02011i200405
main45209-02020i200111-200405
45221SHAFT, STEERING INTERMEDIATE
main45221-02020i200111-200309
sub45221-02021
main45221-02021i200309-200404
sub45209-02H00
sub45260-02H00
main45221-02022i200405
45250COLUMN ASSY, STEERING
main45250-02310i200111-200405
sub45250-02550
main45250-02320i200111-200404
sub45250-02570
main45250-02330i200111-200404
W(VSC)
sub45250-02560
main45250-02440i200111-200404
W(VSC)
sub45250-02580
main45250-02470i200405
main45250-02480i200405
sub45250-02500
main45250-02490i200405-200510
W(VSC)
main45250-02500i200405
W(VSC)
45259ASHEET, COLUMN HOLE COVER SILENCER
main45259-02030i¥1,650200111-200405
main45259-02040i¥2,690200111-200405
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
main45260-02030i200111-200405
sub45260-02H00
main45260-02031i200405
main45260-02040i200111-200404
45271CLAMP, STEERING COLUMN, UPPER
main45271-16020i¥520200111-200405
45280ABRACKET ASSY, STEERING COLUMN, UPPER
main45280-02050i200111-200405
main45280-02060i200111-200405
45286BCOVER, STEERING COLUMN, UPR
main45286-02180-B0i200111-200211
DK.GRAY,TRIM1#
sub45286-02922
main45286-02180-B0i200111-200211
DK.GRAY,TRIM1#,8#
sub45286-02922
main45286-02180-B0i200111-200211
DK.GRAY,TRIM0#,1#
sub45286-02922
main45286-02181-B0i200211-200405
DK.GRAY,TRIM1#,8#
main45286-02181-B0i200211-200405
DK.GRAY,TRIM1#
main45286-02181-B0i200211-200405
DK.GRAY,TRIM0#,1#
main45286-02220-B0i200405-200702
DK.GRAY,TRIM0#,1#
main45286-02220-B0i200405-200702
DK.GRAY,TRIM1#
45287COVER, STEERING COLUMN, LWR
main45024-02010-B0i200111-200211
DK.GRAY,TRIM1#
sub45286-02922
main45024-02010-B0i200111-200211
DK.GRAY,TRIM1#,8#
sub45286-02922
main45024-02010-B0i200111-200211
DK.GRAY,TRIM0#,1#
sub45286-02922
main45024-02011-B0i200211-200405
DK.GRAY,TRIM1#
main45024-02011-B0i200211-200405
DK.GRAY,TRIM1#,8#
main45024-02011-B0i200211-200405
DK.GRAY,TRIM0#,1#
main45287-02170-B0i200405-200702
DK.GRAY,TRIM0#,1#
main45287-02170-B0i200405-200702
DK.GRAY,TRIM1#
45827KNOB, STEERING TILT LEVER
main45827-02020i200111-200405
45874BPROTECTOR, STEERING COLUMN, NO.1
main45874-13020i¥1,070200111-200304
sub45874-13021¥1,070
main45874-13060i¥1,010200304-200405
45897BOLT, STEERING LOCK SET
main45897-12020i¥210200111-200405
8401
9008015066
main90080-15066¥60
9008016074
main90080-16074
9010508410
main90105-08410¥220
9011908560
main90119-08560¥110
9011908C42
main90119-08C42¥80
90119W0020
main90119-W0020
9046706188
main90467-06188¥160
91641C0814
main91641-C0814¥130
91641K0816
main91641-K0816¥130
9331314012
main93313-14012¥60
9356855014
main93568-55014¥70

25 parts on this diagram · 4 diagrams in section
