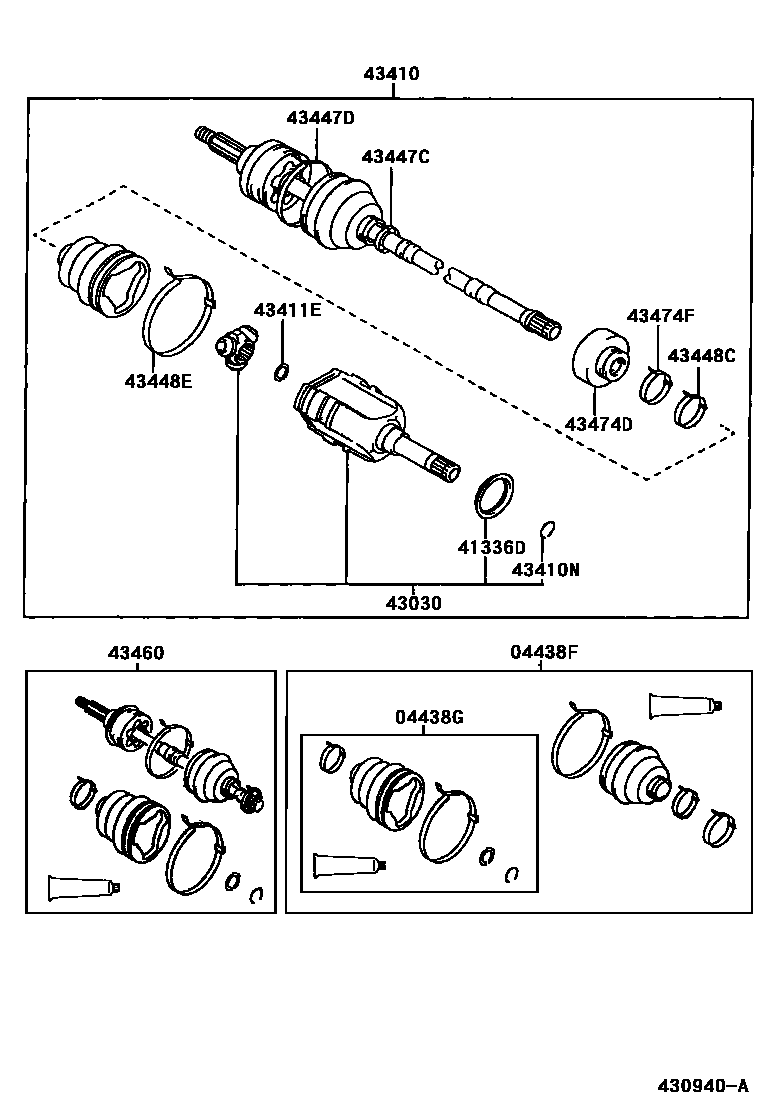

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1RH 0004 1RH 0005 1LH 0006 1RH 0007 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-02240iNDE120,ZZE123..UKP200405

main04427-02250iCDE120..UKP¥10,800200405

main04427-05060iZZE120,121..UKP200405

main04438-02081iZZE120,121..UKP200111-200405

main04438-02091iZZE123..UKP200111-200405

main04438-02101iCDE120..UKP¥10,800200111-200405

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-02111iZZE120,121..UKP200111-200405

main04438-02121iNDE120,ZZE123..UKP200111-200405

main04438-02131iCDE120..UKP¥6,700200111-200405

main04438-05250iCDE120..UKP¥6,700200405

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-02040iZZE123..UKP¥740200111-200405

main41336-05010iZZE120,121..UKP200111-200405

main41336-05080iCDE120..UKP¥740200111-200405

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-02050iZZE123..UKP¥36,200200111-200405

main43030-02070iCDE120..UKP200111-200405

main43040-02030iZZE120,121..UKP¥10,000200111-200405

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-02240iZZE120,121..UKP200111-200405

main43410-02250iZZE123..UKP200111-200405

sub43410-02251

main43410-02270iCDE120..UKP200111-200405

sub43410-02271

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52054iZZE123..UKP¥120200111-200405

main90080-52056iZZE120,121..UKP¥100200111-200405

main90080-52106iCDE120..UKP¥160200111-200405

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-02010iZZE123..UKP¥70200111-200405

main43425-02020iCDE120..UKP¥60200111-200405

main90080-52093iZZE120,121..UKP¥120200111-200405

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02110iCDE120,NDE120,ZZE123..UKP¥310200111-200405

main42345-05070iZZE120,121..UKP¥440200111-200405

ID=29.5

main42345-05070iZZE120,121..UKP¥440200405

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02100iCDE120,NDE120,ZZE123..UKP¥440200111-200405

main42345-05080iZZE120,121..UKP¥440200111-200405

ID=87.5

main42345-05080iZZE120,121..UKP¥440200405

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02040iZZE123..UKP¥260200111-200405

main42345-02080iCDE120..UKP¥650200111-200405

main42345-05040iZZE120,121..UKP200111-200405

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-02090iCDE120..UKP¥250200111-200405

main42345-05030iZZE120,121..UKP200111-200405

main42345-05100iNDE120,ZZE123..UKP¥310200111-200405

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09601iZZE120,121..UKP200111-200405

main43460-09611iZZE123..UKP200111-200405

main43460-09621iCDE120..UKP200111-200405

main43460-09G60iZZE123..UKP200405

43474DAMPER, DRIVE SHAFT

main43474-02110iCDE120,ZZE123..UKP200111-200405

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-02080iZZE120,121..UKP200111-200405

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-05110iZZE120,121..UKP¥240200111-200310

main42345-05220iZZE120,121..UKP¥240200310-200405

15 parts on this diagram · 7 diagrams in section
