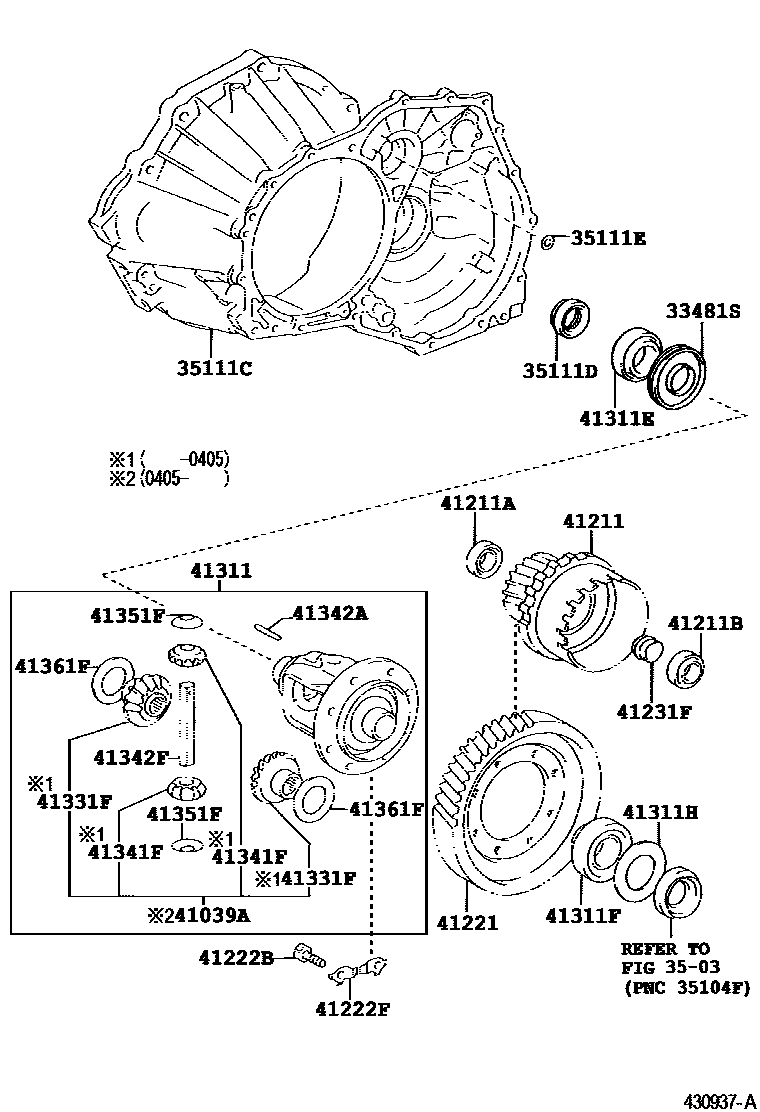

FRONT AXLE HOUSING & DIFFERENTIAL
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=34,MARK 34X30-32,TMMP:REFER TO ILLUSTRATION FIG.33-01
N=35,MARK 35X29-31,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
N=35,MARK 35X29-31
N=32
N=35
N=32
33481SGEAR, SPEEDOMETER DRIVE (ATM)
N=35,MARK 35X29-31
3503
35111CHOUSING, TRANSAXLE
35111DSEAL, OIL (FOR TRANSAXLE HOUSING)
35111EWASHER, SEAL (FOR FRONT TRANSAXLE HOUSING)
41039AGEAR KIT, DIFFERENTIAL
41211PINION, DIFFERENTIAL DRIVE
41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)
41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)
41221GEAR, FRONT DIFFERENTIAL RING
sub41221-12550
(L)
sub41221-52330
sub41221-52270
sub41221-12490
sub41221-20390
41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)
41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK
41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING
41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)
NACHI
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
sub90366-40129
41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)
sub90366-40094
TMMP:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)
T=2.00,MARK V
T=2.35,MARK A
T=2.40,MARK B
T=2.45,MARK C
T=2.50,MARK D
T=2.55,MARK E
T=2.60,MARK F
T=2.65,MARK G
T=2.70,MARK H
T=2.75,MARK J
T=2.80,MARK K
T=2.85,MARK L
T=2.90,MARK M
T=2.10,MARK Q
T=2.15,MARK R
T=2.20,MARK S
T=2.25,MARK T
T=2.30,MARK U
T=2.05,MARK W
T=2.10,MARK AA,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.10,MARK AA
T=2.15,MARK BB
T=2.15,MARK BB,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.20,MARK CC
T=2.20,MARK CC,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.25,MARK DD,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.25,MARK DD
T=2.30,MARK EE,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.30,MARK EE
T=2.35,MARK FF
T=2.35,MARK FF,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.40,MARK GG,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.40,MARK GG
T=2.45,MARK HH,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.45,MARK HH
T=2.50,MARK JJ
T=2.50,MARK JJ,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.55,MARK KK,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.55,MARK KK
T=2.60,MARK LL
T=2.60,MARK LL,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.65,MARK MM
T=2.65,MARK MM,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.70,MARK NN,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.70,MARK NN
T=2.75,MARK PP,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.75,MARK PP
T=2.80,MARK QQ,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.80,MARK QQ
T=2.85,MARK RR,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.85,MARK RR
T=2.90,MARK SS,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=2.90,MARK SS
T=2.95,MARK TT
T=2.95,MARK TT,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=3.00,MARK UU,TOYOTA:REFER TO ILLUSTRATION FIG.33-01
T=3.00,MARK UU
T=1.10,MARK 01,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.15,MARK 02,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.20,MARK 03,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.25,MARK 04,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.30,MARK 05,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.35,MARK 06,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.40,MARK 07,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.45,MARK 08,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.50,MARK 09,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.55,MARK 10,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.60,MARK 11,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.65,MARK 12,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.70,MARK 13,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.75,MARK 14,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.80,MARK 15,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.85,MARK 16,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.90,MARK 17,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=1.95,MARK 18,TMMP:REFER TO ILLUSTRATION FIG.33-01
T=2.00,MARK 19,TMMP:REFER TO ILLUSTRATION FIG.33-01
41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
41351FWASHER, FRONT DIFFERENTIAL PINION THRUST
41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=1.50
T=1.55
T=1.60
T=1.65
T=1.70
T=1.75
T=0.95
T=1.00
T=1.05
T=1.10
T=1.15
T=1.20
T=1.00,MARK 02
T=1.10,MARK 03
T=1.20,MARK 04
T=0.95,MARK 14
T=1.05,MARK 15
T=1.15,MARK 16
T=1.0,MARK 1
T=1.1,MARK 2
T=1.2,MARK 3
T=1.3,MARK 4
24 parts on this diagram · 3 diagrams in section
