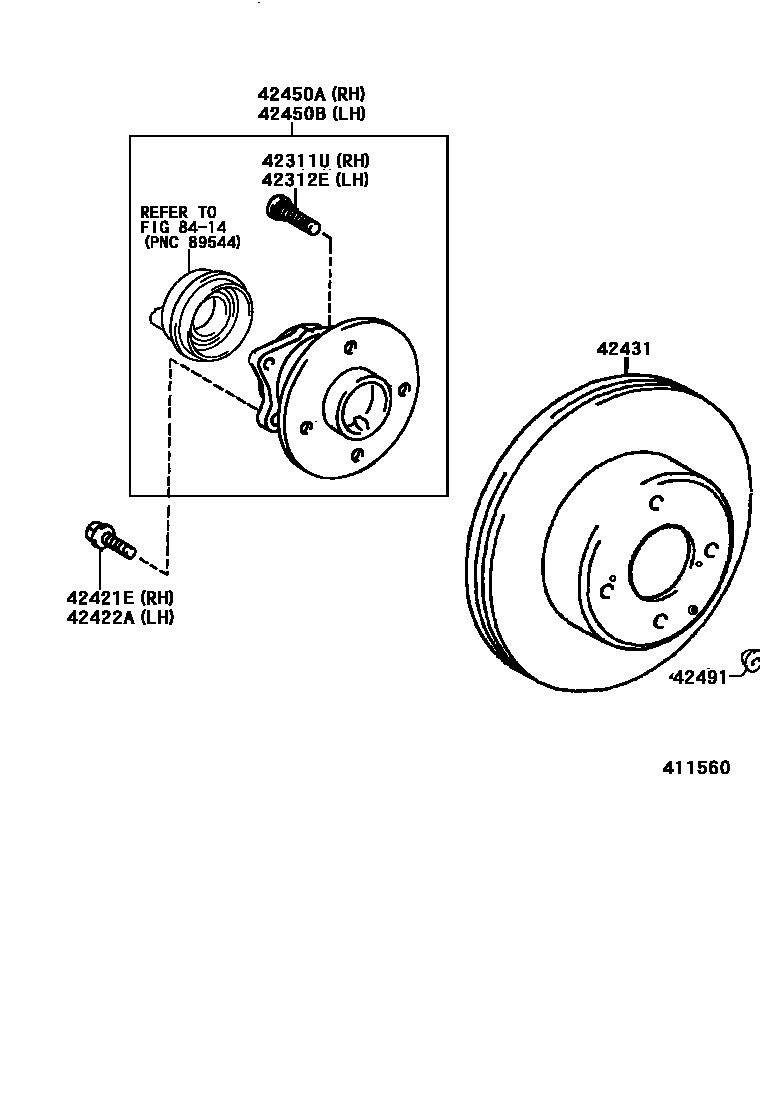

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iCDE120,ZZE12#..UKP¥240200111-200405

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iCDE120,ZZE12#..UKP¥240200111-200405

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10470iCDE120,ZZE12#..UKP¥170200111-200206

main90105-10507iCDE120,ZZE12#..UKP¥120200206-200405

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10470iCDE120,ZZE12#..UKP¥170200111-200206

main90105-10507iCDE120,ZZE12#..UKP¥120200206-200405

42431DISC, REAR

main42431-02070iZZE120,121..UKP¥9,200200111-200702

sub42431-02071¥9,200

main42431-02080iCDE120,ZZE123200111-200309

sub42431-02081

main42431-02081iCDE120,NDE120,ZZE123..UKP200309-200702

sub42431-02082

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-02060iCDE120,ZZE12#..UKP¥22,500200111-200405

sub42450-12070¥39,500

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-02060iCDE120,ZZE12#..UKP¥22,500200111-200405

sub42450-12070¥39,500

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-05010iCDE120,NDE120,ZZE12#..UKP¥140200405

main47491-05010iCDE120,ZZE12#..UKP¥140200301-200405

(L)

main47491-22020iCDE120,ZZE12#..UKP¥140200301-200405

(J)

main47491-22020iCDE120,ZZE12#..UKP¥140200111-200301

8414

9 parts on this diagram · 1 diagram in section
