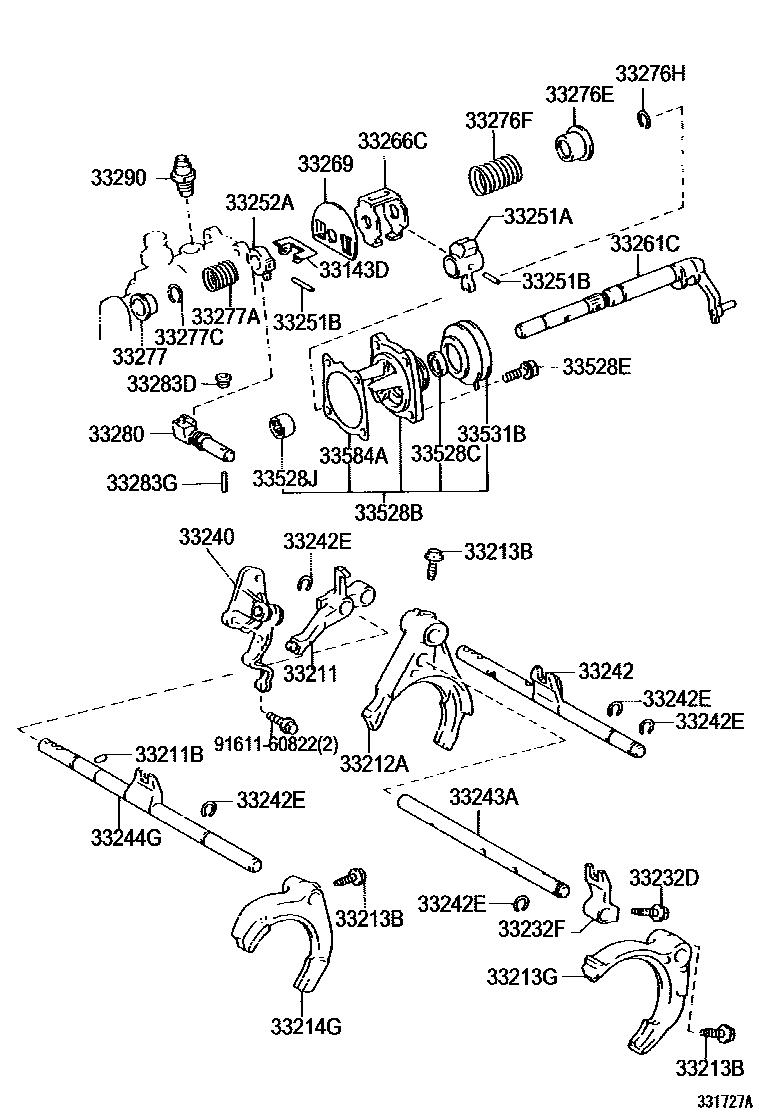

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33143DBAFFLE, TRANSMISSION OIL
33211FORK, REVERSE SHIFT
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33211BROLLER(FOR REVERSE SHIFT FORK)
33212AFORK, GEAR SHIFT, NO.1
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33214GFORK, GEAR SHIFT, NO.3
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33232DBOLT (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33240BRACKET ASSY, REVERSE SHIFT ARM
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33244GSHAFT, GEAR SHIFT FORK, NO.3
sub33244-20070
sub33244-52030
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33251ALEVER, SHIFT, INNER NO.1
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=47.0
L=25.5
33266CPLATE, SHIFT INTERLOCK
main33266-28010iCDE120..UKP..LHD..HDCR;CDE120..UKP..TERRA..DCRL;CDE120..UKP..SOL..(DCR,DCRL);CDE120..UKP..LHD..TERRA..DCR200111-200311
sub33266-28011
33269COVER, SHIFT INTERLOCK PLATE
33276ESEAT, SELECT SPRING, NO.1
33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33277CRING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT)
33280PIN ASSY, REVERSE RESTRICT
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33290BALL ASSY, LOCK, NO.1
NO.2
TMMP:REFER TO ILLUSTRATION FIG.33-01,NO.2
NO.1
sub33290-52040
TOYOTA:REFER TO ILLUSTRATION FIG.33-01,NO.2
33528BCOVER, CONTROL SHAFT
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01
33528CSEAL, OIL (FOR CONTROL SHAFT COVER)
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8
*10-1.25PX25-25
33528JBUSH, BIMETAL FORMED (FOR CONTROL SHAFT COVER)
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
sub33531-12030
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9161160822
main91611-60822
37 parts on this diagram · 12 diagrams in section
