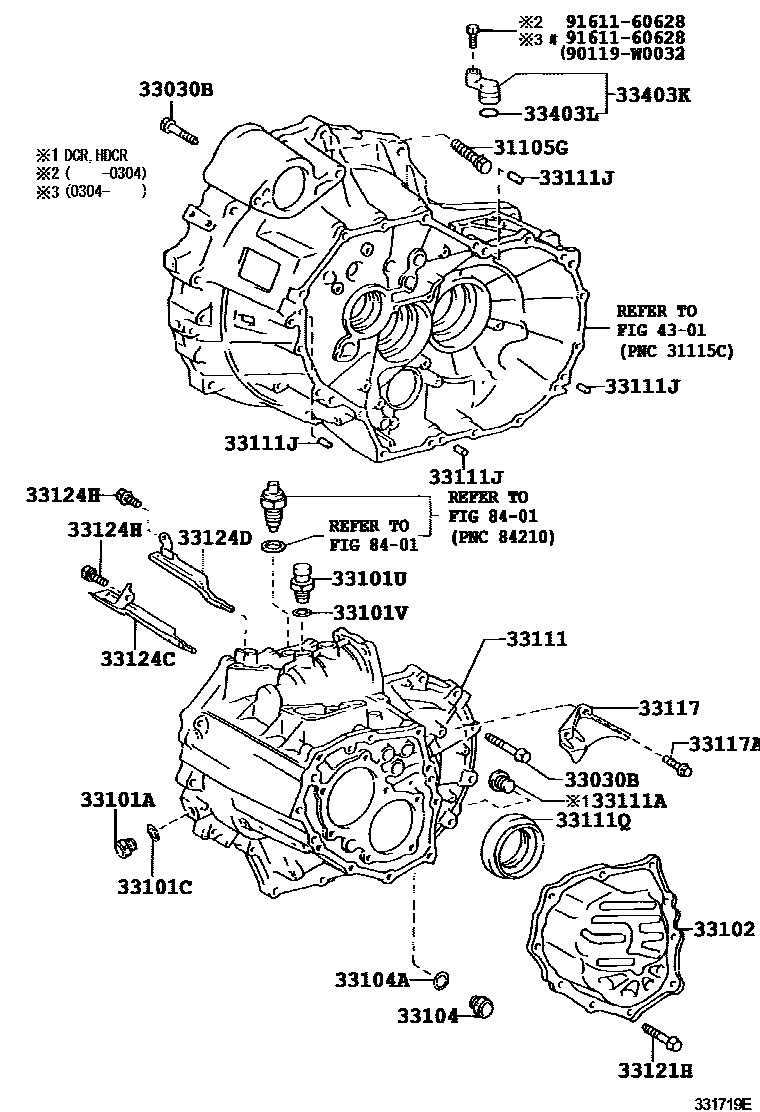

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
*10-1.25PX43-26,(J)
*10-1.25PX43-26,(L)
*10-1.25PX43-26
*12-1.25PX55-30,(J)
*12-1.25PX55-30
*12-1.25PX55-30,(L)
*10-1.25PX45-30
*10-1.25PX50-30
*12-1.25PX55-30,(J)
*10-1.25PX55-30,(J)
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
*8-1.25PX45-27.5
*8-1.25PX45-27.5,NO.2
*8-1.25PX45-27.5
*8-1.25PX50-30
*8-1.25PX50-30,NO.1
*8-1.25PX45-27.5,NO.2
*8-1.25PX45-27.5
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01
33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33101VGASKET(FOR MANUAL TRANSMISSION BREATHER PLUG)
33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE
sub33102-12021
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
sub33102-12042
sub33102-12043
33104PLUG SUB-ASSY, DRAIN(MTM)
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
33104AGASKET, DRAIN PLUG(MTM)
TMMP:REFER TO ILLUSTRATION FIG.33-01
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01
33111CASE, MANUAL TRANSMISSION
sub33111-05020
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
sub33111-64011
33111APLUG, MANUAL TRANSMISSION CASE
NO.1
NO.2
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=23,OD=8
33111QSEAL, OIL(FOR TRANSMISSION CASE)
sub90311-34034
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
sub90311-34034
sub90311-35058
sub90311-35064
sub90311-50035
sub90311-50047
33117PROTECTOR, MANUAL TRANSMISSION CASE
33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
(L)
(J)
33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
TOYOTA:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01
TMMP:REFER TO ILLUSTRATION FIG.33-01
33124CPIPE, OIL RECEIVER, NO.1(MTM)
33124DPIPE, OIL RECEIVER, NO.2(MTM)
33124HBOLT(FOR OIL RECEIVER PIPE)
33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
4301
8401
90119W0032
main90119-W0032
9161160628
main91611-60628
25 parts on this diagram · 5 diagrams in section
