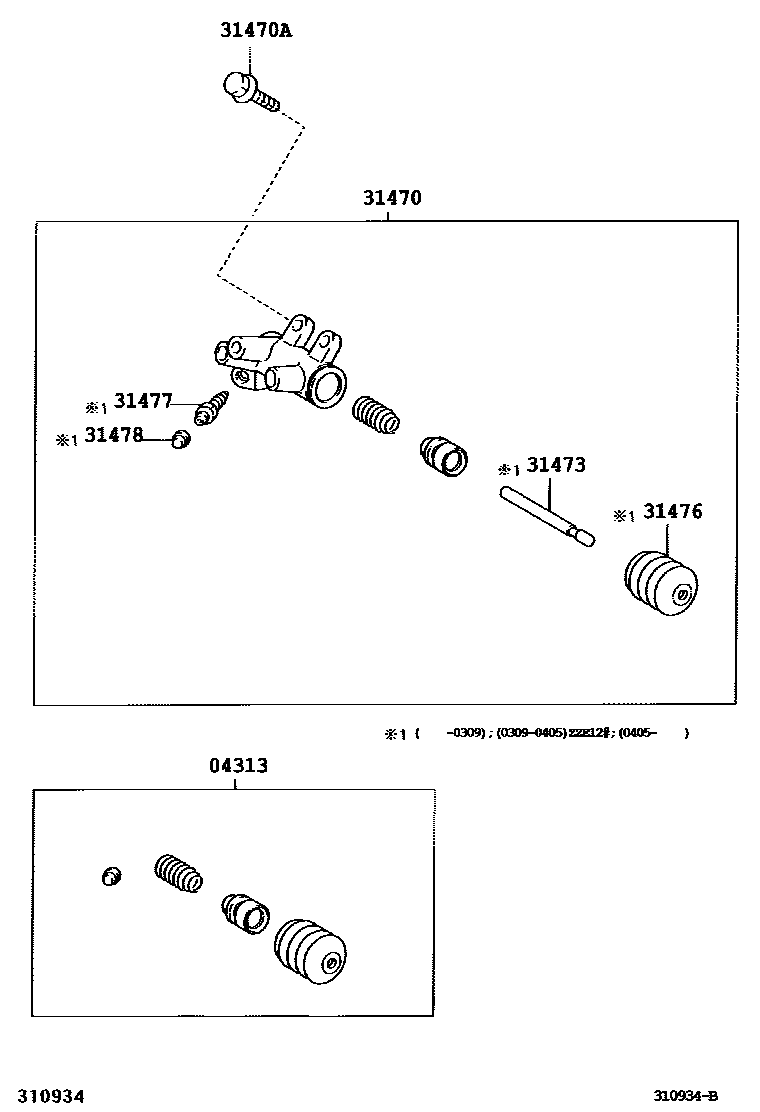

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iCDE120..UKP¥780200111-200405

main04313-17040iZZE12#..UKP..MTM¥860200111-200405

main04313-35060iNDE120..UKP..5F¥780200408

main04313-52020iCDE120..UKP¥780200405

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12111iZZE12#..UKP..MTM¥7,400200111-200405

sub31470-12140¥7,400

main31470-12150iNDE120..UKP..5F¥6,700200408

sub31470-12180

main31470-32022iCDE120..UKP¥7,400200111-200405

sub31470-32023¥7,400

main31470-32023iCDE120..UKP¥7,400200405

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iCDE120..UKP¥80200111-200405

*8-1.25PX25-20.1

main90119-W0028iZZE120..UKP¥80200405

*8-1.25PX22-17.1

main90119-W0028iZZE120..UKP¥80200306-200405

*8-1.25PX22-17.1,(L)

main91611-60822iZZE121,123..UKP..MTM¥170200306-200405

*8-1.25PX22-17.1,(J)

main91611-60822iZZE12#..UKP..MTM¥170200111-200405

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iZZE12#..UKP..MTM¥470200111-200405

main31473-22010iCDE120..UKP¥720200111-200405

main31473-22030iNDE120..UKP..5F¥520200408

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iCDE120,NDE120,ZZE12#..UKP..(5F,6F)¥230200111-200405

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iCDE120,ZZE12#..UKP..MTM¥200200111-200405

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iCDE120,ZZE12#..UKP..MTM¥160200111-200405

7 parts on this diagram · 1 diagram in section
