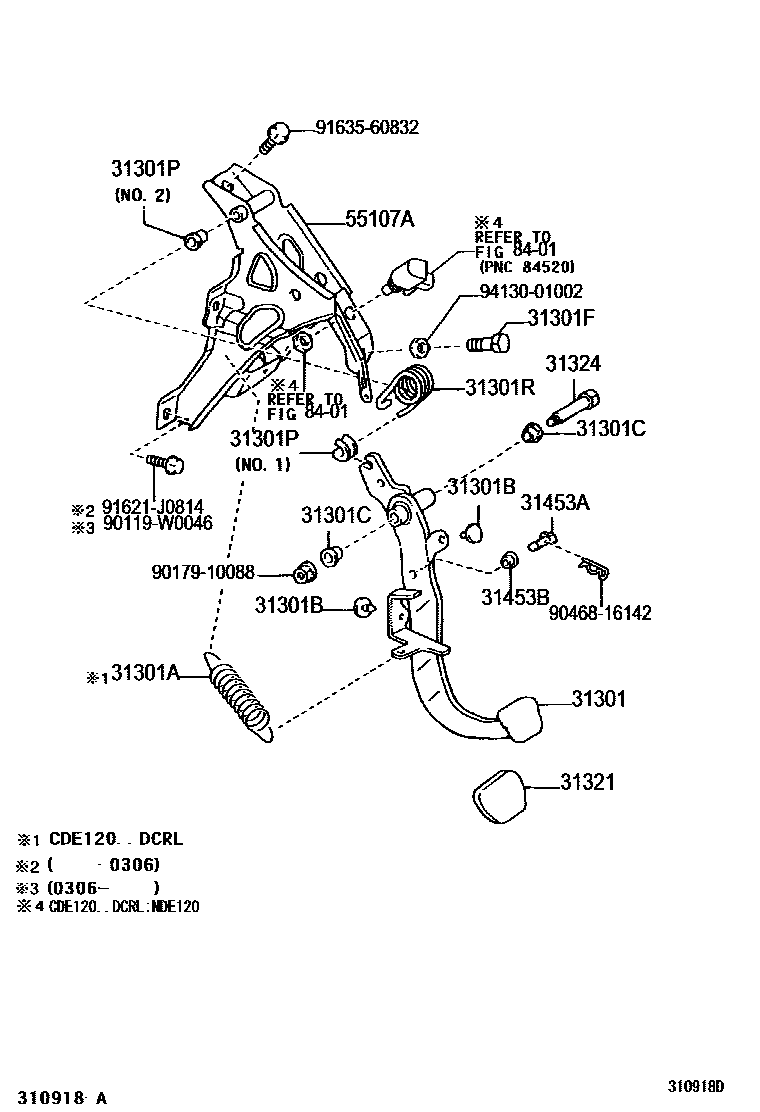

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02040iZZE120,121..UKP..LHD..5F200111-200405

main31301-02050iZZE120,121..UKP..RHD..5F200111-200308

main31301-02080iCDE120,ZZE123..UKP..RHD..(DCR,HDCR,TWC)200111-200405

main31301-02160iZZE123..UKP..RHD200405

main31301-02170iZZE123..UKP..LHD200405

main31301-02180iCDE120..UKP..RHD200304-200504

main31301-02190iCDE120..UKP..LHD200304-200504

main31301-05050iNDE120..UKP..RHD..5F200408

main31301-05060iNDE120..UKP..LHD..5F200408

main31301-05060iZZE121..UKP..LHD..5F..SOL200405

W(CRUISE CONTROL)

main31301-05070iZZE120,121..UKP..LHD..5F200308-200405

main31301-05090iZZE120,121..UKP..RHD..5F200308-200405

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZZE120,121..UKP..LHD..5F200111-200405

main90507-14050iZZE120,121..UKP..RHD..5F200111-200405

main90507-17004iCDE120..UKP..LHD200304-200504

main90507-19005iCDE120..UKP..RHD200304-200504

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iCDE120,ZZE12#..UKP..LHD..MTM200111-200504

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iCDE120..UKP200111-200504

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNDE120,ZZE12#..UKP..(5F,6F)200111-200504

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iCDE120,ZZE123..UKP200111-200504

NO.1

main90389-05019iCDE120..UKP200111-200504

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03100iCDE120,ZZE123..UKP..(DCR,HDCR,TWC)200111-200405

main90949-03122iCDE120..UKP..DCRL200304-200504

sub90949-03143

main90949-03143iCDE120..UKP200505

31321PAD, CLUTCH PEDAL

main31321-52010iCDE120,ZZE12#..UKP..MTM200111-200504

main31321-53010iZZE123..UKP..RHD200405-200511

31324SHAFT, CLUTCH PEDAL

main90109-10167iCDE120,ZZE12#..UKP..MTM200111-200504

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08143iCDE120,NDE120,ZZE12#..UKP..(5F,6F)200111-200405

L=30

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iCDE120..UKP200111-200504

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02050iZZE120,121..UKP..RHD..5F200111-200702

main55107-02060iCDE120..UKP..RHD..HDCR200111-200702

main55107-02070iZZE120,121..UKP..LHD..5F200111-200702

main55107-02080iCDE120,ZZE123..UKP..LHD..(DCR,TWC)200111-200702

main55107-05070iCDE120..UKP..RHD..DCRL200304-200702

main55107-05070iCDE120..UKP..RHD;ZZE121..UKP..RHD..5F..SOL200405-200702

W(CRUISE CONTROL)

main55107-05080iCDE120..UKP..LHD;ZZE121..UKP..LHD..5F..SOL200405-200702

W(CRUISE CONTROL)

main55107-05080iNDE120..UKP..LHD..5F200304-200702

8401

90119W0046

main90119-W0046

9017910088

main90179-10088

9046816142

main90468-16142

91621J0814

main91621-J0814

9163560832

main91635-60832

9413001002

main94130-01002

19 parts on this diagram · 11 diagrams in section
