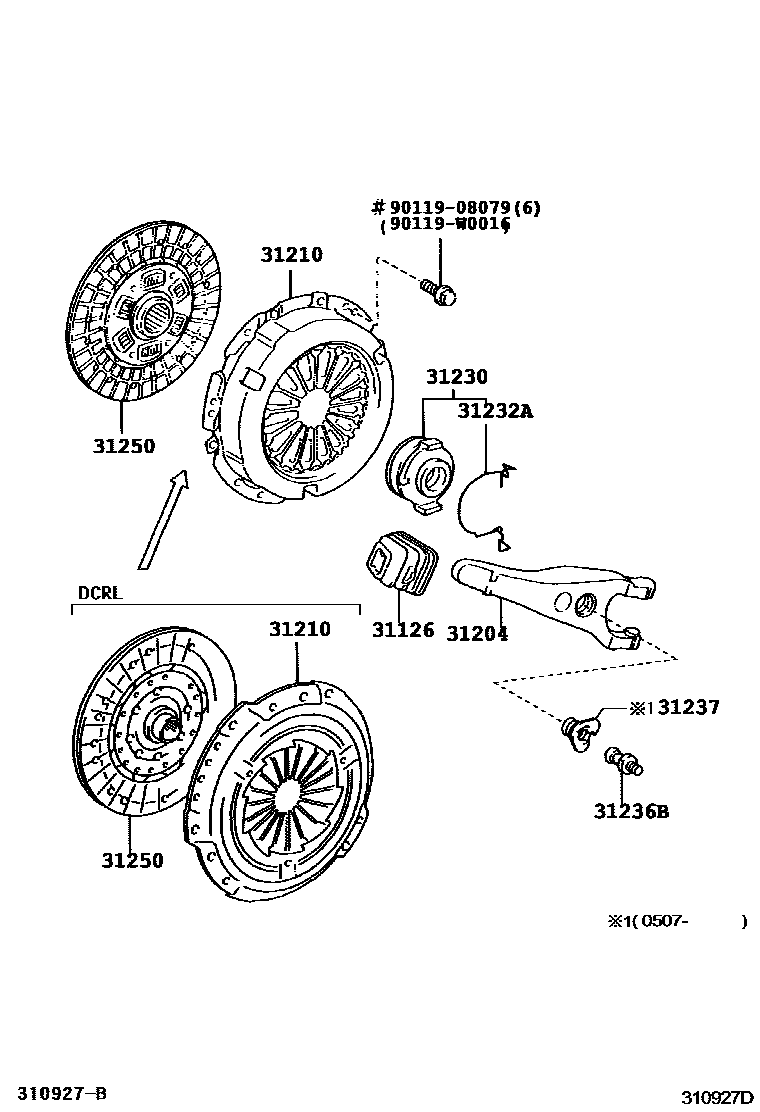

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1 0004 1 0005 1

31126BOOT, CLUTCH RELEASE FORK

main31126-0D010iZZE120..UKP200405

TMMP:REFER TO ILLUSTRATION FIG.33-01

sub31126-12051

main31126-0D010iZZE121,123..UKP..MTM200301-200405

sub31126-12051

main31126-12051iZZE121,123..UKP..MTM200111-200405

main31126-12051iZZE120..UKP200405

TOYOTA:REFER TO ILLUSTRATION FIG.33-01

main31126-20080iCDE120..UKP200111-200405

main31126-64010iNDE120..UKP..5FS200408

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-12050iZZE120..UKP200111-200405

main31204-17010iZZE121,123..UKP..MTM200111-200405

main31204-20130iCDE120..UKP200111-200301

sub31204-20131

main31204-20131iCDE120..UKP200301-200405

main31204-52010iNDE120..UKP..5F200408

main31204-64010iNDE120..UKP..5FS200408

31210COVER ASSY, CLUTCH

main31210-02040iZZE120..UKP200111-200702

main31210-05014iZZE121..UKP..5F200111-200504

sub31210-05015

main31210-05015iZZE121..UKP..5F200505-200702

sub31210-05016

main31210-05050iCDE120..UKP200304-200510

sub31210-05051

main31210-05051iCDE120..UKP200511-200702

main31210-12240iCDE120..UKP..DCR200111-200405

sub31210-12241

main31210-12250iNDE120..UKP..5F200408-200601

sub31210-12251

main31210-12251iNDE120,ZZE123..UKP..(5F,6F)200602-200609

sub31210-12290

main31210-12290iNDE120,ZZE123..UKP..(5F,6F)200610-200702

sub31210-12291

main31210-20380iZZE123..UKP200111-200511

sub31210-12250

main31210-28070iCDE120..UKP..HDCR200111-200304

sub31210-28071

31230BEARING ASSY, CLUTCH RELEASE

main31230-02010iZZE120..UKP200405

TYPE A:REFER ILLUST.

sub31230-16061

main31230-05012iZZE121,123..UKP..MTM200111-200405

main31230-12180iNDE120..UKP..5F200408

sub31230-12181

main31230-17010iNDE120..UKP..5FS200408-200505

sub31230-17011

main31230-17011iNDE120..UKP..5FS200505

sub31230-17012

main31230-20191iCDE120..UKP200111-200405

main31230-52010iZZE120..UKP200111-200405

sub31230-52011

main31230-52010iZZE120..UKP200405-200505

TYPE B:REFER ILLUST.

sub31230-52011

main31230-52011iZZE120..UKP200505

TYPE B:REFER ILLUST.

31232ACLIP, RELEASE BEARING HUB

main31232-05011iZZE121,123..UKP..MTM200111-200405

main31232-12080iNDE120..UKP..5F200408

main31232-16031iZZE120..UKP200111-200405

TYPE A:REFER ILLUST.

main31232-17010iNDE120..UKP..5FS200408

main31232-20031iCDE120..UKP200111-200405

main31232-52010iZZE120..UKP200111-200405

TYPE B:REFER ILLUST.

31236BSUPPORT, RELEASE FORK

main31236-12011iZZE120..UKP200111-200702

main31236-12020iNDE120,ZZE121,123..UKP..MTM200111-200702

main31236-20080iCDE120..UKP200111-200702

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-20010iCDE120..UKP200507

31250DISC ASSY, CLUTCH

main31250-02040iZZE120..UKP200111-200301

sub31250-0D060

main31250-02060iZZE120..UKP200301-200306

sub31250-0D060

main31250-05060iZZE121..UKP..5F200111-200301

sub31250-05100

main31250-05070iCDE120..UKP200304-200405

main31250-05100iZZE121..UKP..5F200301-200407

sub31250-05101

main31250-05101iZZE121..UKP..5F200408

main31250-0D060iZZE120..UKP200306-200405

main31250-12410iCDE120..UKP..(DCR,HDCR)200111-200405

sub31250-12411

main31250-12460iNDE120..UKP..5F200408

sub31250-52110

main31250-12550iZZE123..UKP200512

main31250-20280iZZE123..UKP200111-200511

sub31250-12570

9011908079

main90119-08079

90119W0016

main90119-W0016

10 parts on this diagram · 5 diagrams in section
