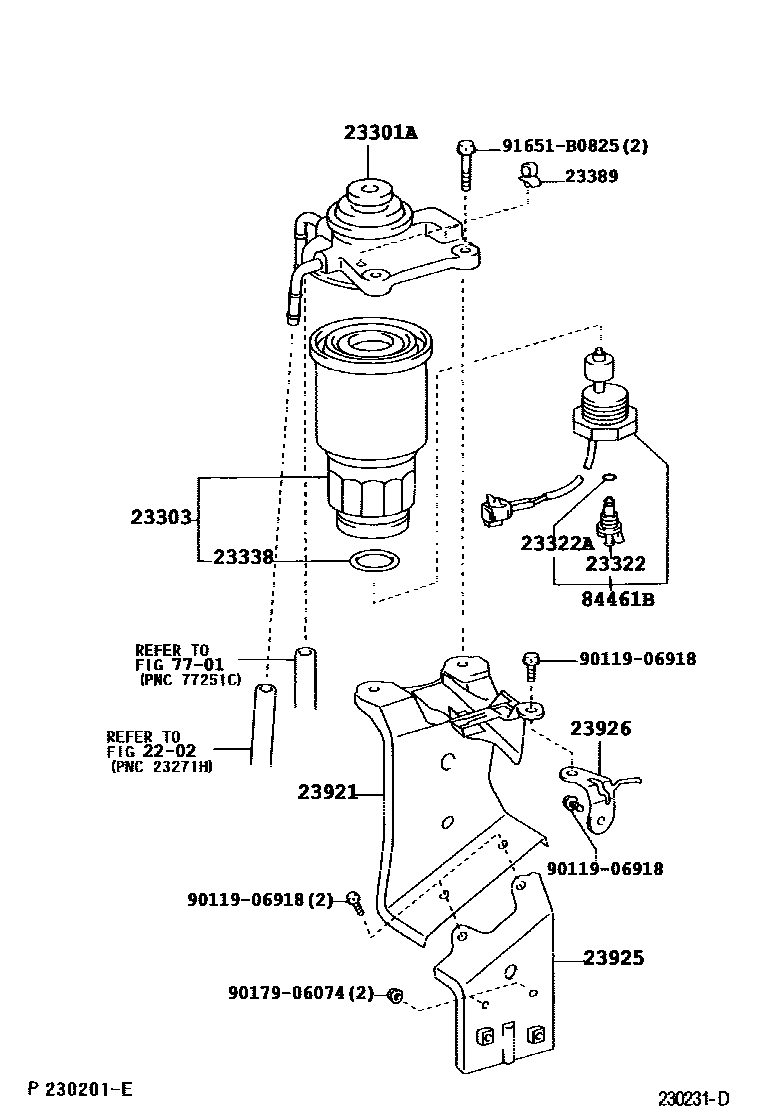

FUEL FILTER

0001 1 0002 1COLD SPEC 0003 1 0004 1

2202

23301ACAP ASSY, FUEL FILTER

main23380-0G021i1CDFTV..CDE120..UKP..LHD..DCRL200304-200405

COLD SPEC

sub23380-0G022

main23380-0G031i1NDTV..NDE120..UKP200304-200405

sub23380-0G032

main23380-27081i1CDFTV..CDE120..UKP..LHD..(DCR,HDCR)¥7,500200111-200405

COLD SPEC

sub23380-27082

main23380-27130i1CDFTV..CDE120..UKP¥7,400200111-200207

sub23380-27131

main23380-27140i1CDFTV..CDE120..UKP..(DCR,HDCR)¥7,500200207-200405

sub23380-27141

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i1CDFTV..CDE120..UKP..DCRL¥6,300200307-200403

main23390-30180i1CDFTV..CDE120..UKP..DCRL¥3,540200403-200405

main23390-33010i1NDTV..NDE120..UKP¥4,490200408

sub23390-33030

main23390-64450i1CDFTV..CDE120..UKP..(DCR,HDCR)¥4,430200111-200405

sub23390-33030

main23390-64480i1CDFTV..CDE120..UKP..DCRL¥3,540200304-200307

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i1NDTV..NDE120..UKP¥390200111-200702

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i1CDFTV..CDE120..UKP¥0200111-200702

23338GASKET(FOR WARNING SWITCH)

main23344-64010i1CDFTV..CDE120..UKP¥0200111-200405

23389CLAMP, FUEL FILTER

main23389-0G021i1CDFTV..CDE120..UKP200304-200405

main23389-27080i1CDFTV..CDE120..UKP..LHD¥310200111-200207

COLD SPEC

main23389-27080i1CDFTV..CDE120..UKP..(DCR,HDCR)¥310200207-200405

main23389-27130i1CDFTV..CDE120..UKP¥250200111-200207

23921SUPPORT, FUEL FILTER

main23921-27050i1CDFTV..CDE120..UKP..(DCR,HDCR)¥3,110200111-200405

main23921-27100i1CDFTV..CDE120..UKP..DCRL¥3,200200304-200405

main23921-33040i1NDTV..NDE120..UKP¥3,590200408

23925STAY, FUEL FILTER SUPPORT

main23925-0G010i1CDFTV..CDE120..UKP200301-200405

main23925-27010i1CDFTV..CDE120..UKP¥1,040200111-200301

23926STAY, FUEL FILTER SUPPORT, NO.2

main23926-0G010i1CDFTV..CDE120..UKP200301-200405

main23926-27010i1CDFTV..CDE120..UKP¥370200111-200301

7701

84461BSWITCH, LEVEL WARNING

main84461-20100iCDE120..UKP..DCRL200304-200702

main84461-60080iCDE120..UKP..HDCR¥5,400200111-200702

sub84461-60081¥4,430

9011906918

main90119-06918¥90

9017906074

main90179-06074¥90

91651B0825

main91651-B0825¥120

15 parts on this diagram · 4 diagrams in section
