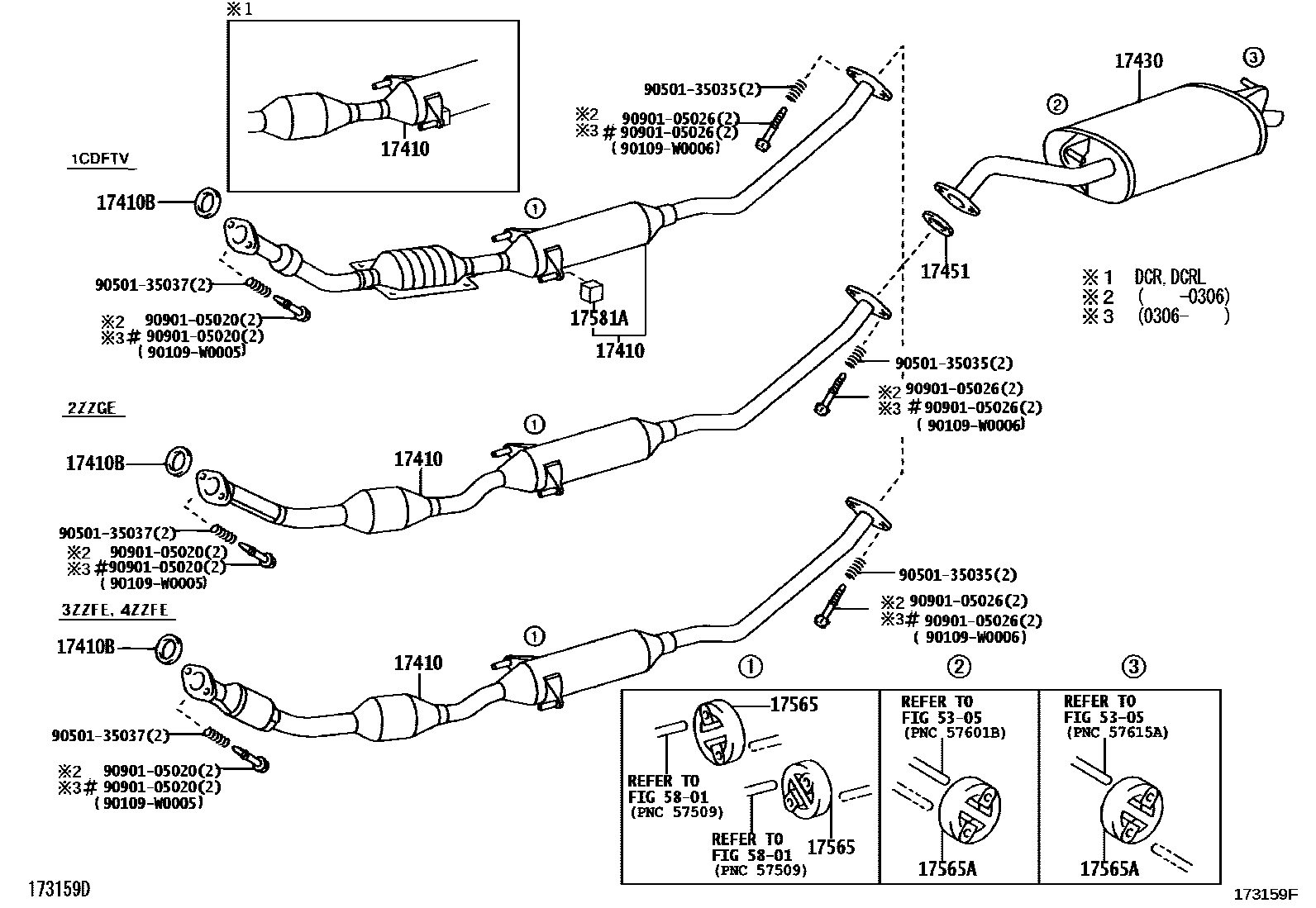

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0D120i3ZZFE,4ZZFE..ZZE120,121..UKP200111-200405

*114=*687

main17410-0D130i2ZZGE..ZZE123..UKP200111-200405

*114=TOYOTA/X03/Y

main17410-0D320i3ZZFE,4ZZFE..ZZE120,121..UKP200405

*114=TOYOTA/GA7GB7/Y

main17410-0G010i1CDFTV..CDE120..UKP..DCR200111-200405

main17410-0G020i1CDFTV..CDE120..UKP..HDCR200111-200304

*115=TOYOTA/01-03/N

main17410-0G070i1CDFTV..CDE120..UKP..DCRL200304-200405

sub17410-0G071

main17410-0G071i1CDFTV..CDE120..UKP200405

*114=TOYOTA/AB1AB2/Y

main17410-0N020i1NDTV..NDE120..UKP200408

17410BGASKET, EXHAUST PIPE

main17451-0D090i1CDFTV,1NDTV,3ZZFE,4ZZFE..CDE120,NDE120,ZZE120,121..UKP200111-200405

main17451-0G010i1CDFTV..CDE120..UKP..(DCR,HDCR)200111-200405

main17451-22050i2ZZGE..ZZE123..UKP200111-200405

17430PIPE ASSY, EXHAUST, TAIL

main17430-0D140i3ZZFE,4ZZFE..ZZE120,121..UKP200111-200405

main17430-0D150i2ZZGE..ZZE123..UKP200111-200405

main17430-0D300i3ZZFE,4ZZFE..ZZE120,121..UKP200405

main17430-0G020i1CDFTV..CDE120..UKP..DCR200111-200405

main17430-0G030i1CDFTV..CDE120..UKP..HDCR200111-200304

main17430-0G070i1CDFTV..CDE120..UKP200304-200405

17451GASKET, EXHAUST PIPE

main17451-02030i1CDFTV..CDE120..UKP..(DCR,HDCR)200111-200405

main17451-0B010i1CDFTV,2ZZGE..CDE120,ZZE123..UKP..(DCRL,TWC)200111-200405

main17451-0D080i3ZZFE,4ZZFE..ZZE120,121..UKP200111-200405

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0D020i1CDFTV,2ZZGE,3ZZFE,4ZZFE..CDE120,ZZE12#..UKP200111-200405

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D030i1CDFTV,2ZZGE,3ZZFE,4ZZFE..CDE120,ZZE12#..UKP200111-200405

17581ADAMPER, EXHAUST PIPE

main17581-0G010i1CDFTV..CDE120..UKP..HDCR200111-200304

5305

5801

90109W0005

main90109-W0005

90109W0006

main90109-W0006

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

15 parts on this diagram · 2 diagrams in section
