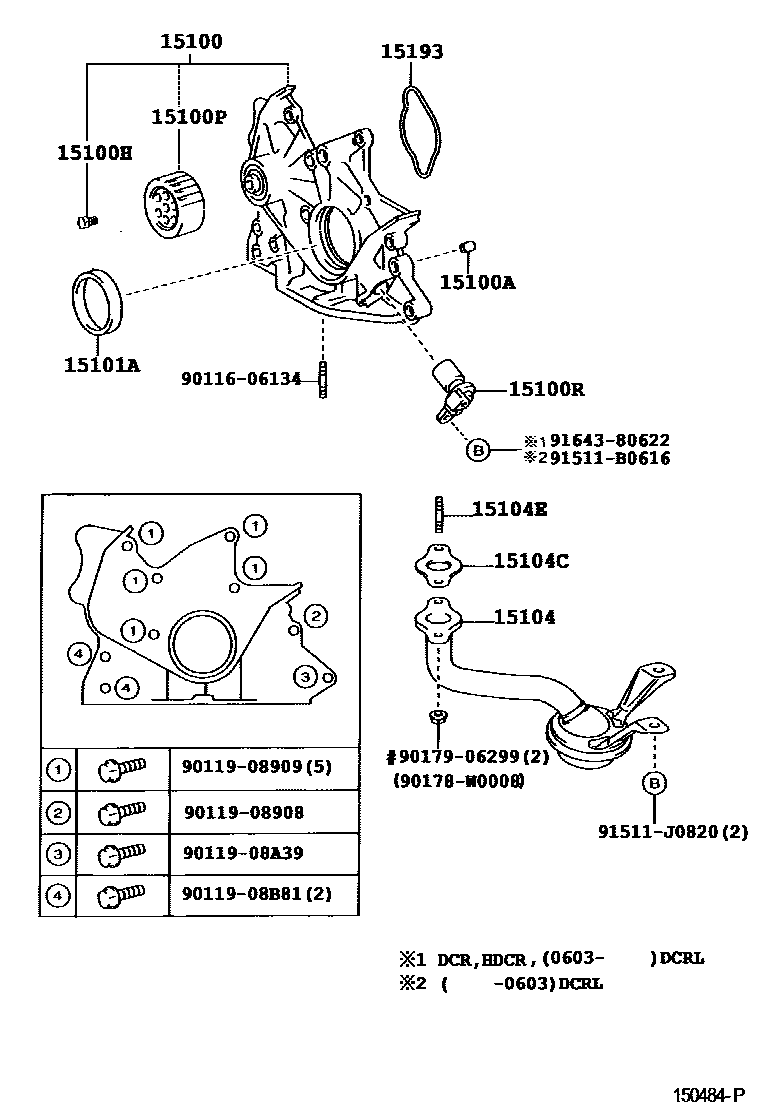

ENGINE OIL PUMP
15100PUMP ASSY, OIL
(J)
15100APIN, RING(FOR OIL PUMP SET)
15100HBOLT, SEAL
15100PPULLEY, OIL PUMP DRIVE SHAFT
15100RSENSOR, CRANK POSITION
15101ASEAL(FOR CRANKSHAFT)
15104CGASKET(FOR OIL STRAINER)
15104EBOLT, STUD(FOR OIL STRAINER)
15193GASKET, OIL PUMP
(J)
9011606134
main90116-06134
9011908908
main90119-08908
9011908909
main90119-08909
9011908A39
main90119-08A39
9011908B81
main90119-08B81
90178W0008
main90178-W0008
9017906299
main90179-06299
91511B0616
main91511-B0616
91511J0820
main91511-J0820
9164380622
main91643-80622
20 parts on this diagram · 4 diagrams in section
