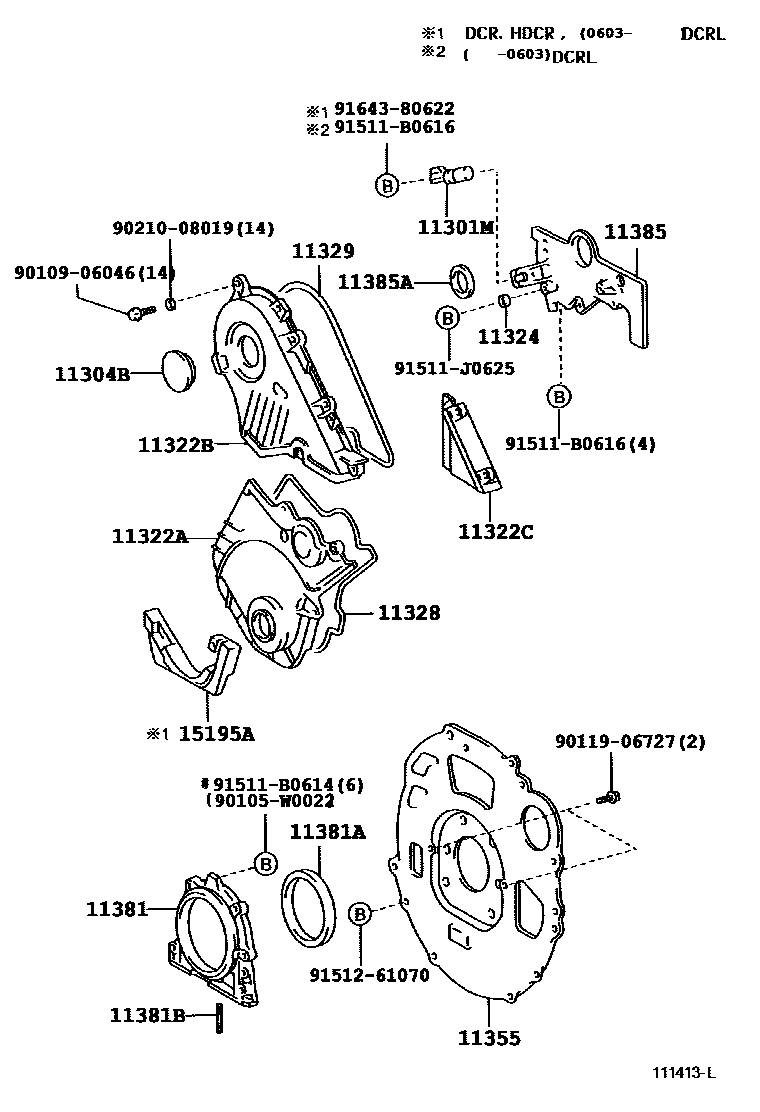

TIMING GEAR COVER & REAR END PLATE
11301MSENSOR, CAM POSITION
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
OD=64
11322BCOVER, TIMING BELT, NO.2
11322CCOVER, TIMING BELT, NO.3
11324PLATE, TIMING CHAIN COVER
11328GASKET, TIMING GEAR OR CHAIN COVER
11329GASKET, TIMING GEAR REAR COVER
11355PLATE, REAR END
11381RETAINER, ENGINE REAR OIL SEAL
11381ASEAL, ENGINE REAR OIL
11381BBOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
11385RETAINER, CAMSHAFT OIL SEAL
11385ASEAL, OIL(FOR CAMSHAFT)
15195AINSULATOR, OIL PUMP
90105W0022
main90105-W0022
9010906046
main90109-06046
9011906727
main90119-06727
9021008019
main90210-08019
91511B0614
main91511-B0614
91511B0616
main91511-B0616
91511J0625
main91511-J0625
9151261070
main91512-61070
9164380622
main91643-80622
24 parts on this diagram · 4 diagrams in section
