CYLINDER HEAD

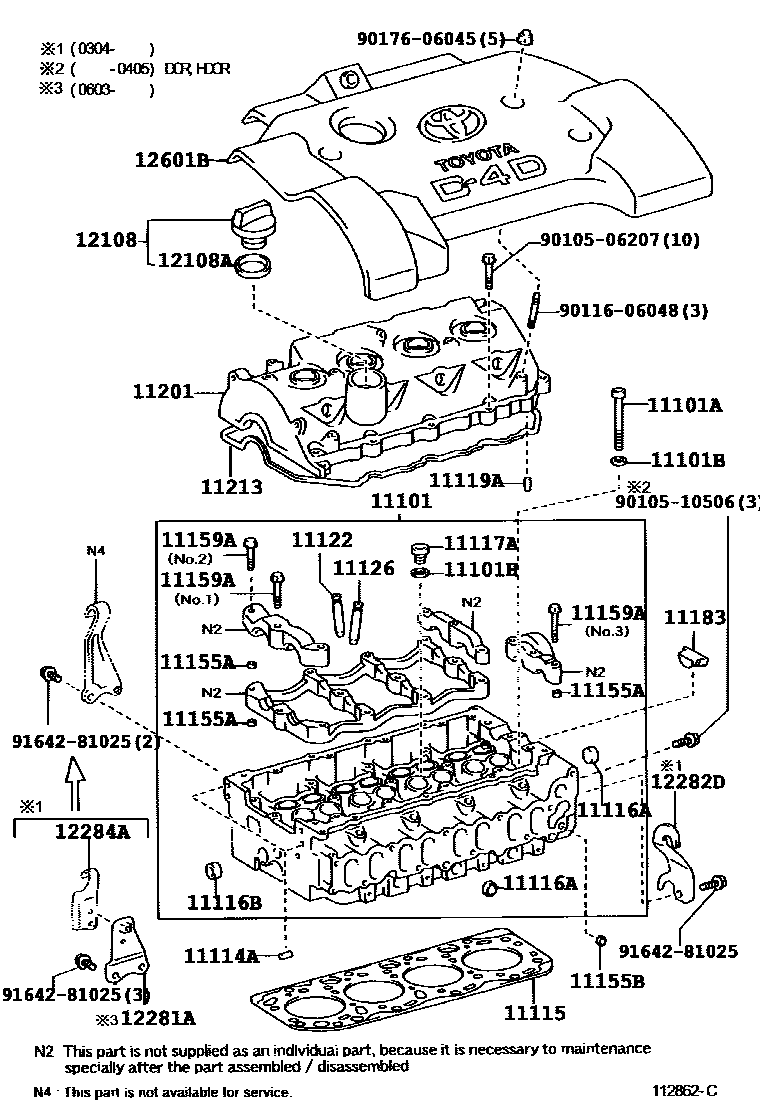

Parts diagram
11101HEAD SUB-ASSY, CYLINDER
main11101-0D020i200111-200405
(L)
sub11101-22061
main11101-0D021i200206-200210
(L)
main11101-0D030i200111-200405
(L)
sub11101-22071
main11101-0D031i200206-200210
(L)
sub11101-0D030
main11101-22060i200111-200206
(J)
sub11101-22061
main11101-22061i200206-200405
(J)
sub11101-22190
main11101-22070i200111-200206
(J)
sub11101-22071
main11101-22071i200206-200405
(J)
sub11101-22111
sub13711-22040
main11101-27033i200111-200405
main11101-27050i200304-200405
main11101-29446i200111-200203
sub11101-29465
sub13715-88602
main11101-29465i200203-200303
sub11101-29505
main11101-29475i200303-200411
sub11101-29476
main11101-29476i200412
main11101-33040i200408
sub11101-33041
11101ABOLT(FOR CYLINDER HEAD SET)
main90910-02136i200111-200405
*11-1.25PX160-60
main90910-02139i200111-200405
*11-1.25PX104-63
main90910-02140i200111-200405
main90910-02148i200408
sub90910-02182
main90910-02152i200111-200405
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
main90201-10344i200111-200405
main90201-11016i200111-200405
main90201-13021i200408
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
main90430-14008i200111-200405
11114APIN, STRAIGHT
main90250-06068i200111-200405
L=11,OD=6
11115GASKET, CYLINDER HEAD
main11115-22040i200111-200207
sub11115-22041
main11115-22041i200207-200302
sub11115-22050
main11115-22050i200302-200405
main11115-22060i200111-200405
main11115-27010-A0i200111-200212
MARK A
sub11115-27011
main11115-27010-B0i200111-200212
MARK B
sub11115-27011
main11115-27010-C0i200111-200212
MARK C
sub11115-27011
main11115-27010-D0i200111-200212
MARK D
sub11115-27011
main11115-27010-E0i200111-200212
MARK E
sub11115-27011
main11115-27011-A0i200212-200702
MARK A
main11115-27011-B0i200212-200702
MARK B
main11115-27011-C0i200212-200702
MARK C
main11115-27011-D0i200212-200702
MARK D
main11115-27011-E0i200212-200702
MARK E
main11115-33030-A0i200408
MARKA
main11115-33030-B0i200408
MARKB
main11115-33030-C0i200408
MARKC
main11115-33030-D0i200408
MARKD
main11115-33030-E0i200408
MARKE
11116APLUG, TIGHT, NO.1
main96411-41800i200111-200405
main96411-62000i200301-200405
11116BPLUG, TIGHT, NO.2
main96411-63000i200301-200405
11117APLUG, W/HEAD TAPER SCREW, NO.1
main90341-14008i200111-200405
main90341-27003i200111-200405
11119APIN, STRAIGHT, NO.1
main90250-06013i200111-200405
L=16,OD=6
11122BUSH, INTAKE VALVE GUIDE
main11122-20020i200111-200702
STD
sub11122-22040
main11122-27010i200111-200405
STD
main11122-30020i200408-200504
O/S 0.05
main11122-33030i200504
STD
main11122-88600i200111-200702
STD
main11123-20020i200111-200702
O/S 0.05
main11123-27010i200111-200405
O/S 0.05
main11123-30020i200408-200504
STD
main11123-33030i200504
O/S 0.05
main11123-88600i200111-200702
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
main11122-20020i200111-200702
STD
sub11122-22040
main11122-27010i200111-200405
STD
main11122-30020i200408-200504
O/S 0.05
main11122-33030i200504
STD
main11122-88600i200111-200702
STD
main11123-20020i200111-200702
O/S 0.05
main11123-27010i200111-200405
O/S 0.05
main11123-30020i200408-200504
STD
main11123-33030i200504
O/S 0.05
main11123-88600i200111-200702
O/S 0.05
11155APIN, RING W/HEAD
main90250-05021i200111-200405
main90250-06001i200111-200405
main90253-11021i200111-200405
11155BPIN, RING
main90253-13008i200111-200405
sub90253-13005
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
main90109-06080i200111-200405
NO.2
main90119-07001i200111-200405
NO.1
main90119-07002i200111-200405
NO.2
main90119-07008i200408
NO.1
main90119-07009i200408
NO.2
main90119-08A29i200111-200405
NO.1
main90119-08B76i200111-200405
NO.1
main91511-80860i200111-200405
NO.2
main91511-C0835i200111-200405
NO.3
11183PLUG, SEMICIRCULAR
main11183-64010i200111-200405
11201COVER SUB-ASSY, CYLINDER HEAD
main11201-0D020i200111-200702
(L)
main11201-22060i200111-200702
(J)
main11201-27030i200111-200208
sub11201-27031
main11201-27031i200208-200405
main11201-33030i200408-200602
sub11201-33031
main11201-33031i200602
main11201-88600i200111-200702
11213GASKET, CYLINDER HEAD COVER
main11213-0D030i200111-200405
(L)
main11213-0G010i200301-200603
(L)
sub11213-27010
main11213-22050i200111-200405
(J)
main11213-27010i200111-200312
main11213-27010i200301-200603
(J)
main11213-33021i200408
main11213-88600i200111-200405
12108CAP SUB-ASSY, OIL FILLER
main12180-02020i200111-200112
main12180-02020i200112-200301
(L)
main12180-0N010i200301-200603
(L)
sub12180-21010
main12180-21010i200301-200603
(J)
main12180-21010i200111-200405
main12180-28010i200408
main12180-55010i200112-200301
(J)
12108AGASKET(FOR OIL FILLER CAP)
main90080-43020i200111-200603
(L)
sub90430-37140
main90430-37004i200408
main90430-37140i200112-200603
(J)
main90430-37140i200111-200405
12281AHANGER, ENGINE, NO.1
main12281-15040i200111-200405
NO.1
main12281-21010i200408
main12281-22021i200111-200405
NO.2
main12281-27050i200603
main12281-88600i200111-200405
12282DHANGER, ENGINE, NO.2
main12282-27060i200304-200404
main12282-88600i200111-200405
12284AHANGER, ENGINE, NO.1 UPPER
main12284-27020i200304-200404
12601BCOVER SUB-ASSY, ENGINE, NO.1
main12611-0G020i200304-200405
main12611-0G030i200301-200405
(L)
main12611-0N010i200408
main12611-27070i200111-200301
9010506207
main90105-06207
9010510506
main90105-10506
9011606048
main90116-06048
9017606045
main90176-06045
9164281025
main91642-81025

29 parts on this diagram · 4 diagrams in section
