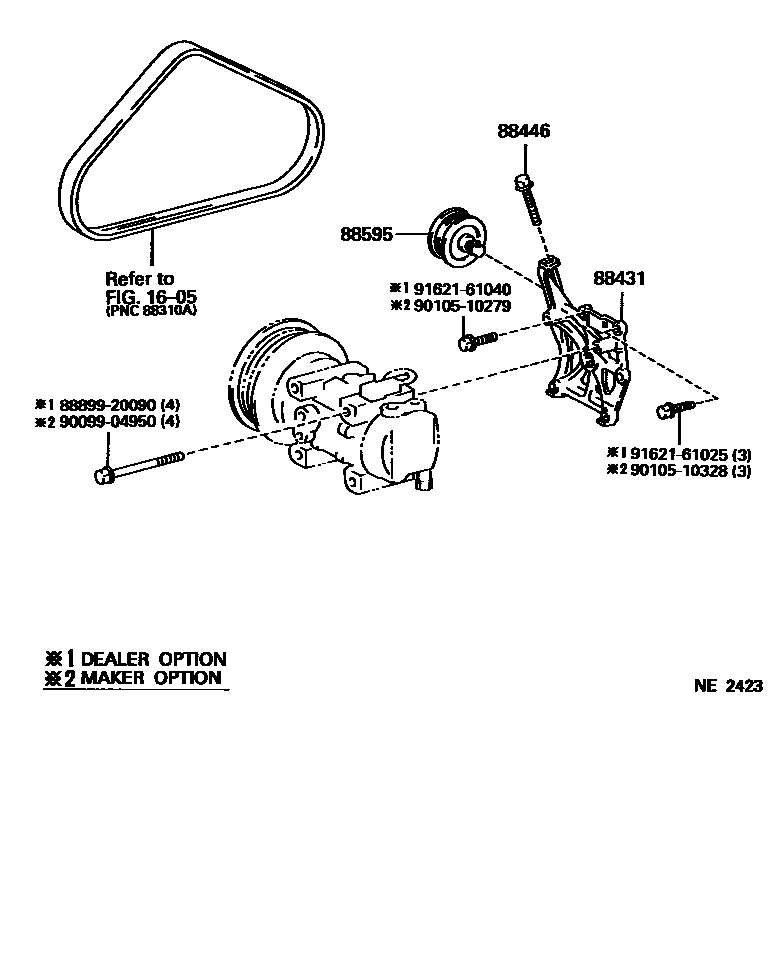

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-02040iAE111..UKP199809-199911

main88431-02050iEE111..UKP199809-199911

main88431-12510iCE110199704-199812

sub88431-12511

main88431-12511iCE110199812-199910

main88431-12540iEE111..JPP199704-199910

main88431-12560iAE111..JPP199704-199910

main88431-12610iCDE110200008-200109

88446BOLT, IDLE PULLEY

main88446-02020iAE111..UKP199809-199911

W(AIR CONDITIONER)

main88446-12030iAE111..UKP199704-199911

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-02020iAE111..UKP199809-199911

W(AIR CONDITIONER)

main88440-20160iAE111..JPP199704-199910

DEALER OPTION

main88440-20170iAE111..UKP199809-199911

main88440-20170iAE111..JPP199804-199910

MAKER OPTION

8889920090COVER, EVAPORATOR

main88899-20090

9009904950

main90099-04950

9010510279

main90105-10279

9010510328

main90105-10328

9162161025

main91621-61025

9162161040

main91621-61040

10 parts on this diagram · 9 diagrams in section
