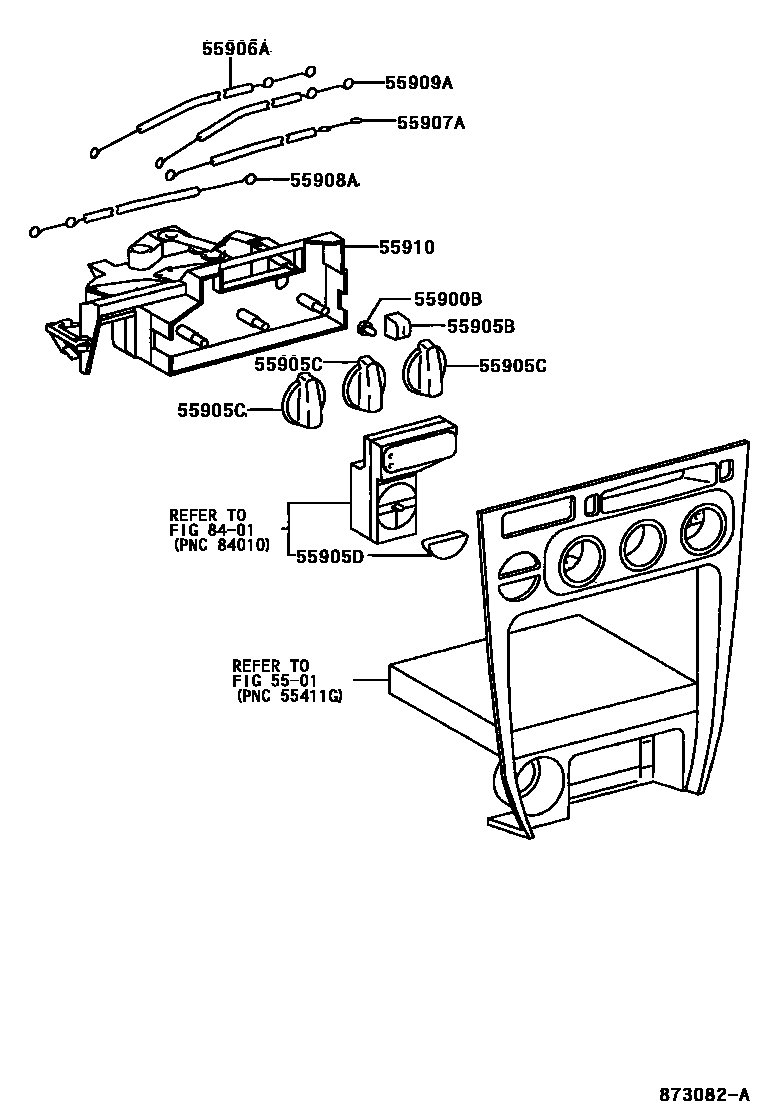

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1HEATER CONTROL 0003 1AIR DUCT 0004 1AIR DUCT

5501

55900BBULB, AIR CONDITIONER CONTROL

main90069-98005iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

sub90981-WB011

main90981-11014iAE111,CE110,EE111..JPP199704-200109

14V 1.4W

55905BKNOB, HEATER CONTROL, NO.2

main55905-02080-B0iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

SHADOW GRAY,TRIM16

main55905-02080-B0iZZE112..6F..SOL;AE111,EE111..UKP199809-200111

SHADOW GRAY,TRIM1#

main55905-02080-B1iAE111,EE111..UKP199809-199911

DK.CHARCOAL,TRIM0#,1#

main55905-02080-B1iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

DK.CHARCOAL,TRIM11

main55905-12450-B0iZZE11#..G6199704-200107

SHADOW GRAY,TRIM1#

sub55905-12450

main55905-12450-B0iAE111,EE111..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

sub55905-12450

main55905-12450-B0iAE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199704-199808

SHADOW GRAY,TRIM0#

sub55905-12450

main55905-12450-B0iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

sub55905-12450

main55905-12450-B0iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub55905-12450

main55905-12450-B1iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199910

DK.CHARCOAL,TRIM0#,10

sub55905-12450

main55905-12450-B1iEE111..STD199704-200107

DK.CHARCOAL,TRIM1#

sub55905-12450

main55905-12450-B1iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

DK.CHARCOAL,TRIM11

sub55905-12450

55905CKNOB, HEATER CONTROL, NO.3

main55905-02070-B0iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

SHADOW GRAY,TRIM16

main55905-02070-B0iZZE112..6F..SOL;AE111,EE111..UKP199809-200111

SHADOW GRAY,TRIM1#

main55905-02070-B1iAE111,EE111..UKP199809-199911

DK.CHARCOAL,TRIM0#,1#

main55905-02070-B1iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

DK.CHARCOAL,TRIM11

main55905-12440-B0iAE111,EE111..G6199704-200107

SHADOW GRAY,TRIM1#

main55905-12440-B0iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

main55905-12440-B0iAE111,CE110,EE111..LUNA,TERRA199704-199808

SHADOW GRAY,TRIM0#

main55905-12440-B0iAE111,EE111..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

main55905-12440-B0iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

main55905-12440-B1iAE111..LB;CE110..TERRA;AE111..HB..TERRA;EE111..STD,TERRA;EE111..3FC..LUNA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199704-200107

DK.CHARCOAL,TRIM1#

main55905-12440-B1iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199910

DK.CHARCOAL,TRIM0#,10

main55905-12440-B1iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

DK.CHARCOAL,TRIM11

55905DKNOB SUB-ASSY, CONTROL

main55905-12490-B0iAE111,EE111..RHD..G6199704-199910

SHADOW GRAY,TRIM1#

main55905-12490-B0iAE111,CE110,EE111..JPP..RHD..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

main55905-12490-B0iAE111,EE111..RHD..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

main55905-12490-B0iAE111,CE110,EE111..RHD..(LUNA,TERRA)199704-199808

SHADOW GRAY,TRIM0#

main55905-12490-B1iAE111,CE110,EE111..RHD..(LUNA,TERRA)199704-199808

DK.CHARCOAL,TRIM1#

main55905-12490-B1iAE111,CE110,EE111..JPP..RHD..(LUNA,TERRA)199808-199910

DK.CHARCOAL,TRIM0#,10

main55905-12490-B1iAE111,CE110,EE111..JPP..RHD..(LUNA,TERRA)199812-199901

DK.CHARCOAL,TRIM0#,1#

main55905-12500-B0iAE111,EE111..LHD..G6199704-199910

SHADOW GRAY,TRIM1#

main55905-12500-B0iAE111,CE110,EE111..LHD..(LUNA,TERRA)199704-199808

SHADOW GRAY,TRIM0#

main55905-12500-B0iAE111,EE111..LHD..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

main55905-12500-B0iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

main55905-12500-B1iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199808-199910

DK.CHARCOAL,TRIM0#,10

main55905-12500-B1iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199704-199910

DK.CHARCOAL,TRIM1#

main55905-12570-B0iCDE110,WZE110,ZZE11#..JPP..RHD..(SOL,TERRA)199910-200107

SHADOW GRAY,TRIM1#

main55905-12570-B0iZZE11#..RHD..G6199910-200107

SHADOW GRAY,TRIM16

main55905-12570-B1iCDE110,WZE110,ZZE11#..JPP..RHD..(SOL,TERRA)199910-200107

DK.CHARCOAL,TRIM11

main55905-12580-B0iCDE110,WZE110,ZZE11#..JPP..LHD..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

main55905-12580-B0iZZE11#..LHD..G6199910-200107

SHADOW GRAY,TRIM1#

main55905-12580-B1iCDE110,WZE110,ZZE11#..JPP..LHD..(SOL,TERRA)199910-200109

DK.CHARCOAL,TRIM11

main55905-12580-B1iZZE111..STD199910-200107

DK.CHARCOAL,TRIM1#

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-02030iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main55906-02040iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main55906-12380iAE111,CE110,EE111..JPP..LHD199704-200109

main55906-12390iAE111,CE110,EE111..JPP..RHD199704-200107

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-02020iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main55907-02030iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main55907-12450iAE111,CE110,EE111..JPP..LHD199704-200109

main55907-12470iCDE110,WZE110,ZZE11#..JPP..RHD199704-200107

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-02030iAE111,EE111..UKP199809-200111

main55908-02040iAE111,EE111,WZE110,ZZE11#..UKP..RHD199905-200111

main55908-12290iAE111,CE110,EE111..JPP199704-200109

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-02030iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main55909-02040iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main55909-12280iCDE110,WZE110,ZZE11#..JPP199704-200109

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-02040iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main55910-02050iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main55910-12660iCDE110,WZE110,ZZE11#..JPP..RHD199704-200107

main55910-12690iCDE110,WZE110,ZZE11#..JPP..LHD199704-200109

8401

11 parts on this diagram · 4 diagrams in section
