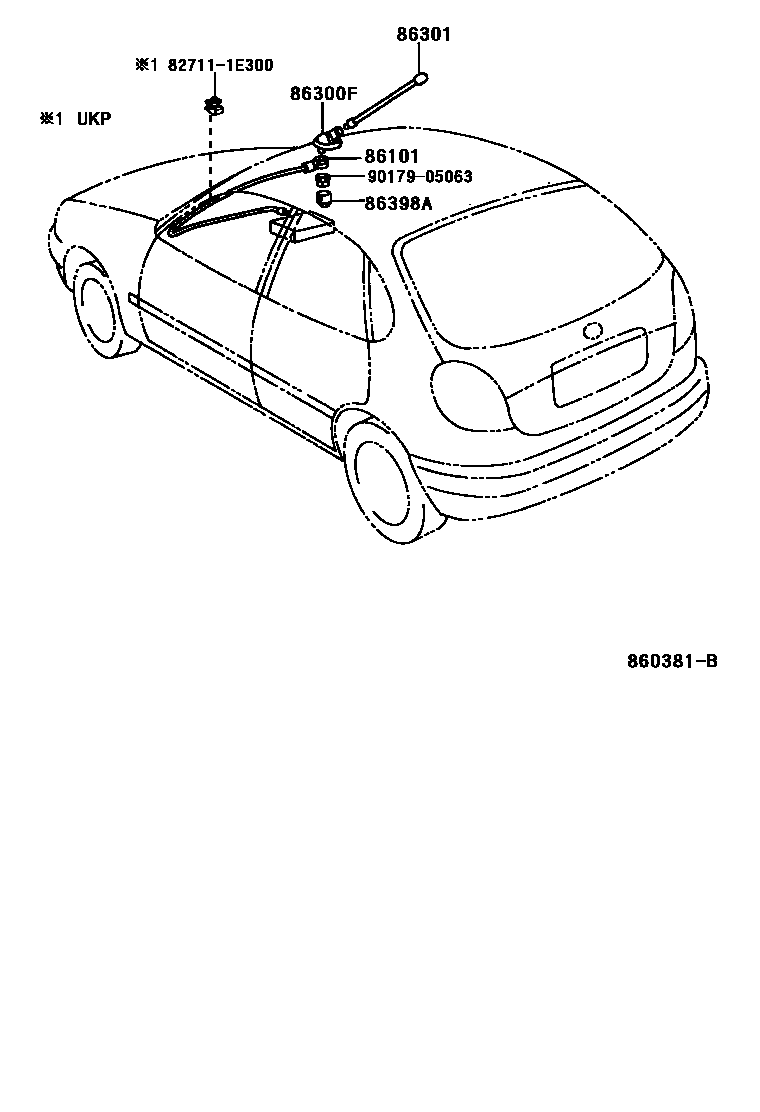

ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-02040iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main86101-02050iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main86101-12150iCDE110,WZE110,ZZE11#..JPP..RHD¥4,510199704-200107

W(SUN ROOF)

main86101-12160iAE111,CE110,EE111..JPP..LHD..(G6,LUNA,TERRA)¥4,510199704-200109

W(SUN ROOF)

main86101-12170iCDE110,WZE110,ZZE11#..JPP..RHD¥4,510199704-200107

main86101-12250iAE111,CE110,EE111..JPP..LHD¥4,510199704-200109

86300FHOLDER ASSY, ANTENNA (CORD/POLE SEPARATE TYPE)

main86300-02060iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main86300-12700iCDE110,WZE110,ZZE11#..JPP¥4,900199704-200109

86301POLE SUB-ASSY, ANTENNA

main86309-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main86309-12130iCDE110,WZE110,ZZE11#..JPP¥3,250199704-200109

86398ACAP, ANTENNA SHIELD

main86398-05010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main86398-12010iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)¥130199704-200109

827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E300¥70

9017905063

main90179-05063¥140

6 parts on this diagram · 1 diagram in section
