NAVIGATION & FRONT MONITOR DISPLAY

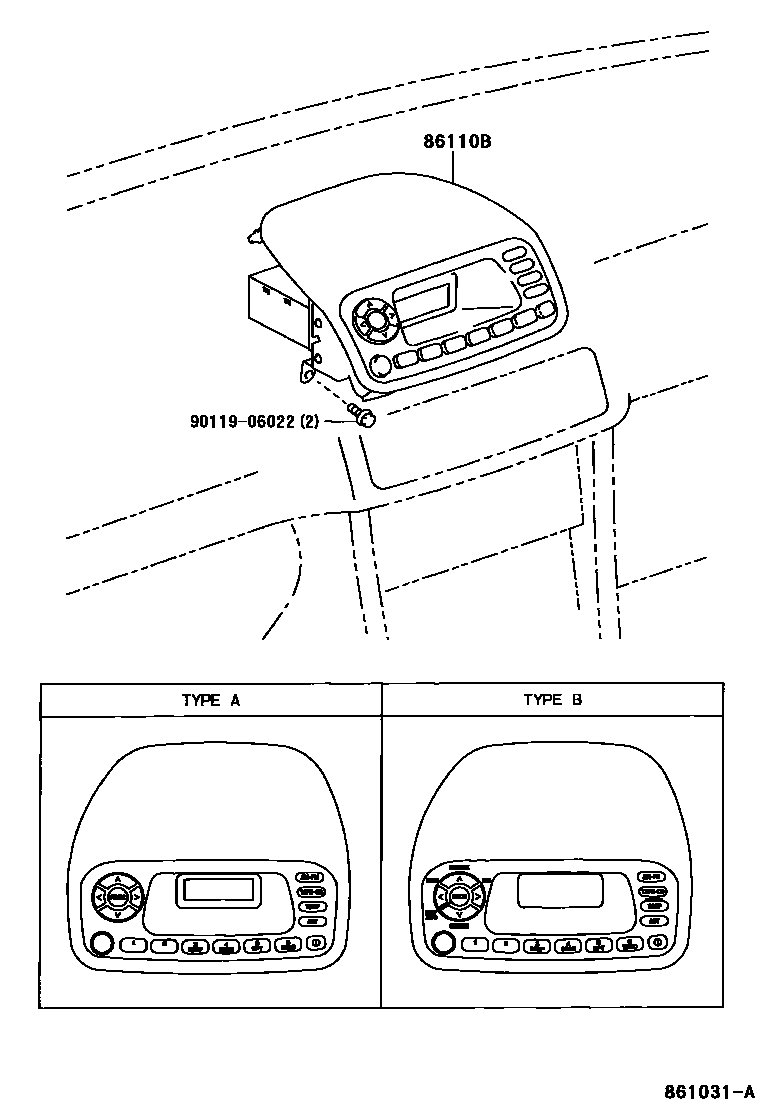

86110BMULTI-DISPLAY ASSY

main86110-02010iWZE110,ZZE11#..JPP..RHD..TERRA199911-200008

PANASONIC,TYPE A:REFER TO ILLUSTRATION

main86110-02010-B0iWZE110,ZZE11#..UKP..RHD..TERRA199911-200111

PANASONIC,TYPE A:REFER TO ILLUSTRATION,(L),SHADOW GRAY,TRIM16

main86110-02010-B0iCDE110,WZE110,ZZE11#..JPP..RHD..TERRA200008-200107

PANASONIC,TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16,MATSUSHITA

main86110-02010-B1iCDE110,WZE110,ZZE11#..RHD..TERRA199911-200111

PANASONIC,TYPE A:REFER TO ILLUSTRATION,(L),DK.CHARCOAL,TRIM11

main86110-02020iWZE110,ZZE11#..JPP..LHD..TERRA199911-200008

PANASONIC,TYPE A:REFER TO ILLUSTRATION

main86110-02020-B0iCDE110,WZE110,ZZE11#..LHD..TERRA199911-200111

PANASONIC,TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16

main86110-02020-B1iWZE110,ZZE11#..UKP..LHD..TERRA199911-200008

PANASONIC,TYPE A:REFER TO ILLUSTRATION,DK.CHARCOAL,TRIM11

main86110-02020-B1iCDE110,WZE110,ZZE11#..LHD..TERRA200008-200111

PANASONIC,TYPE A:REFER TO ILLUSTRATION,(L),DK.CHARCOAL,TRIM11

main86110-02020-B1iZZE111..STD199911-200107

PANASONIC,TYPE A:REFER TO ILLUSTRATION,(L),DK.CHARCOAL,TRIM1#

main86110-02030iWZE110,ZZE11#..JPP..RHD..(SOL,TERRA)199911-200008

PANASONIC,TYPE B:REFER TO ILLUSTRATION

main86110-02030-B0iWZE110,ZZE11#..UKP..RHD..(4FC,5F)199911-200111

PANASONIC,TYPE B:REFER TO ILLUSTRATION,(L),SHADOW GRAY,TRIM16

main86110-02030-B0iZZE112..RHD..6F..SOL199911-200111

PANASONIC,TYPE B:REFER TO ILLUSTRATION,(L),SHADOW GRAY,TRIM1#

main86110-02030-B0iZZE11#..RHD..G6199911-200107

PANASONIC,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#

main86110-02030-B0iCDE110,WZE110,ZZE11#..JPP..RHD..(SOL,TERRA)200008-200107

PANASONIC,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16

main86110-02030-B1iWZE110,ZZE11#..UKP..RHD..(4FC,5F)199911-200111

PANASONIC,TYPE B:REFER TO ILLUSTRATION,(L),DK.CHARCOAL,TRIM11

main86110-02040-B0iWZE110,ZZE11#..UKP..LHD..(4FC,5F)199911-200111

PANASONIC,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16

main86110-02040-B0iCDE110,WZE110,ZZE11#..JPP..LHD..(SOL,TERRA)199911-200109

PANASONIC,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16,MATSUSHITA

main86110-02040-B0iZZE11#..LHD..6F199911-200111

PANASONIC,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#

main86110-02040-B1iCDE110,WZE110,ZZE11#..LHD..(4FC,5F)..(SOL,TERRA)199911-200111

PANASONIC,TYPE B:REFER TO ILLUSTRATION,(L),DK.CHARCOAL,TRIM11

main86110-02040-B1iZZE111..STD199911-200107

PANASONIC,TYPE B:REFER TO ILLUSTRATION,(L),DK.CHARCOAL,TRIM1#

main86110-12010-B0iCDE110,WZE110,ZZE11#..JPP..RHD..TERRA199911-200107

JECO,TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16,JECO

main86110-12010-B0iZZE11#..RHD..TERRA199910-199911

JECO,TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16

main86110-12010-B0iWZE110,ZZE11#..UKP..RHD..TERRA199911-200111

JECO,TYPE A:REFER TO ILLUSTRATION,(J),SHADOW GRAY,TRIM16

main86110-12010-B1iCDE110,WZE110,ZZE11#..RHD..TERRA199910-200111

JECO,TYPE A:REFER TO ILLUSTRATION,(J),MD. CHARCOAL,TRIM11

main86110-12020-B0iCDE110..RHD;ZZE112..RHD..HB..4FC;WZE110,ZZE11#..UKP..RHD..(4FC,5F)199911-200111

JECO,TYPE B:REFER TO ILLUSTRATION,(J),SHADOW GRAY,TRIM1#

sub86110-02030

main86110-12020-B0iCDE110..RHD;ZZE112..RHD..HB..4FC;WZE110,ZZE11#..UKP..RHD..(4FC,5F)199911-200111

JECO,TYPE B:REFER TO ILLUSTRATION,(J),SHADOW GRAY,TRIM16

sub86110-02030

main86110-12020-B0iZZE11#..RHD..G6199910-200107

JECO,SHADOW GRAY,TRIM1#

sub86110-02030

main86110-12020-B0iZZE11#..RHD..(SOL,TERRA)199910-199911

JECO,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16

sub86110-02030

main86110-12020-B0iZZE112..JPP..RHD..LB..4FC;WZE110,ZZE11#..JPP..RHD..5F199911-200107

JECO,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16,JECO

sub86110-02030

main86110-12020-B1iCDE110,WZE110,ZZE11#..RHD..(4FC,5F)199910-200111

JECO,TYPE B:REFER TO ILLUSTRATION,(J),MD. CHARCOAL,TRIM11

sub86110-02030

main86110-12030-B0iZZE11#..LHD..TERRA199910-199911

JECO,TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16

main86110-12030-B0iCDE110,WZE110,ZZE11#..JPP..LHD..TERRA199911-200109

JECO,TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16,JECO

main86110-12030-B1iCDE110,WZE110,ZZE11#..JPP..LHD..TERRA199910-200109

JECO,TYPE A:REFER TO ILLUSTRATION,(J),MD. CHARCOAL,TRIM11

main86110-12030-B1iZZE111..STD199910-200107

JECO,TYPE A:REFER TO ILLUSTRATION,(J),MD. CHARCOAL,TRIM1#

main86110-12040-B0iZZE11#..LHD..(SOL,TERRA)199910-199911

JECO,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16

main86110-12040-B0iCDE110,WZE110,ZZE11#..JPP..LHD..(SOL,TERRA)199911-200109

JECO,TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM16,JECO

main86110-12040-B0iZZE11#..LHD..G6199910-200107

JECO,SHADOW GRAY,TRIM1#

main86110-12040-B1iCDE110,WZE110,ZZE11#..JPP..LHD..(SOL,TERRA)199910-200109

JECO,TYPE B:REFER TO ILLUSTRATION,(J),MD. CHARCOAL,TRIM11

main86110-12040-B1iZZE111..STD199910-200107

JECO,TYPE B:REFER TO ILLUSTRATION,(J),MD. CHARCOAL,TRIM1#

9011906022

main90119-06022

2 parts on this diagram · 1 diagram in section
