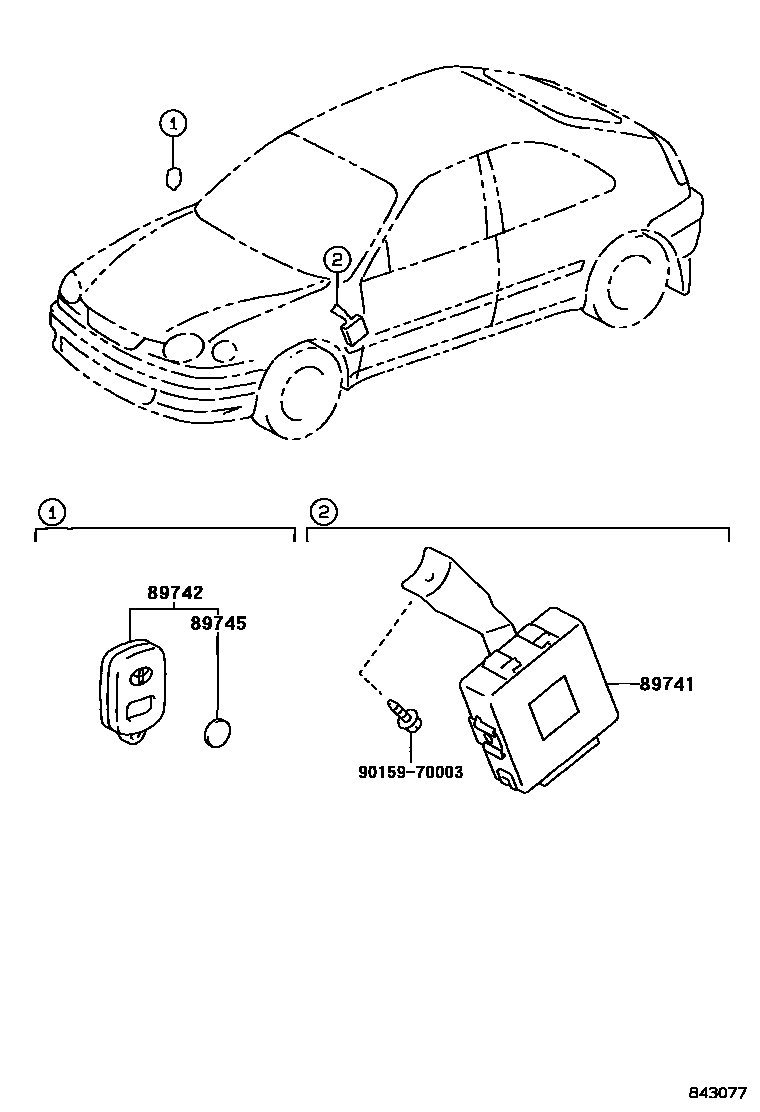

WIRELESS DOOR LOCK

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1

89741RECEIVER, DOOR CONTROL

main89741-02010iAE111,EE111..UKP..LHD199809-199911

main89741-02020iAE111,EE111..UKP..RHD199809-199911

main89741-02030iWZE110,ZZE11#..UKP..RHD199911-200011

sub89741-02031

main89741-02031iWZE110,ZZE11#..UKP..RHD200011-200111

main89741-02040iWZE110,ZZE11#..UKP..LHD199911-200011

sub89741-02041

main89741-02041iWZE110,ZZE11#..UKP..LHD200011-200111

main89741-12070iAE111,CE110,EE111..JPP..RHD199704-199910

sub89741-12071

main89741-12080iAE111,CE110,EE111..JPP..LHD..(G6,LUNA,TERRA)199704-199910

sub89741-12081

main89741-12200iCDE110,WZE110,ZZE11#..JPP..RHD199910-200012

sub89741-12201

main89741-12201iCDE110,WZE110,ZZE11#..JPP..RHD200012-200107

main89741-12210iCDE110,WZE110,ZZE11#..JPP..LHD..(G6,SOL,TERRA)199910-200012

sub89741-12211

main89741-12211iCDE110,WZE110,ZZE11#..JPP..LHD..(G6,SOL,TERRA)200012-200109

89742TRANSMITTER, DOOR CONTROL

main89742-12110iAE111,CE110,EE111..JPP..RHD199704-199910

sub89742-12111

main89742-12120iAE111,CE110,EE111..JPP..LHD..(G6,LUNA,TERRA)199704-199910

sub89742-12111

main89742-12130iAE111,CE110,EE111..JPP..LHD..(G6,LUNA,TERRA)199704-199910

*FRG OR AUSTRIA SPEC

sub89742-12111

main89742-12140iAE111,CE110,EE111..JPP..LHD..(G6,LUNA,TERRA)199704-199910

DENMARK SPEC

sub89742-12111

main89742-12150iAE111,CE110,EE111..JPP..LHD..(G6,LUNA,TERRA)199704-199910

ICELAND,ISRAEL,FINLAND,NORWAY,SWEDEN OR SWITZERLAND SPEC

sub89742-12111

main89742-12170iAE111,CE110,EE111..JPP..LHD..(G6,LUNA,TERRA)199704-199910

EASTERN EUROPE SPEC

sub89742-12111

89745BATTERY, TRANSMITTER

main89745-40010iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)199910-200109

main89745-50010iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199704-199910

sub89745-71010

9015970003

main90159-70003

4 parts on this diagram · 6 diagrams in section
