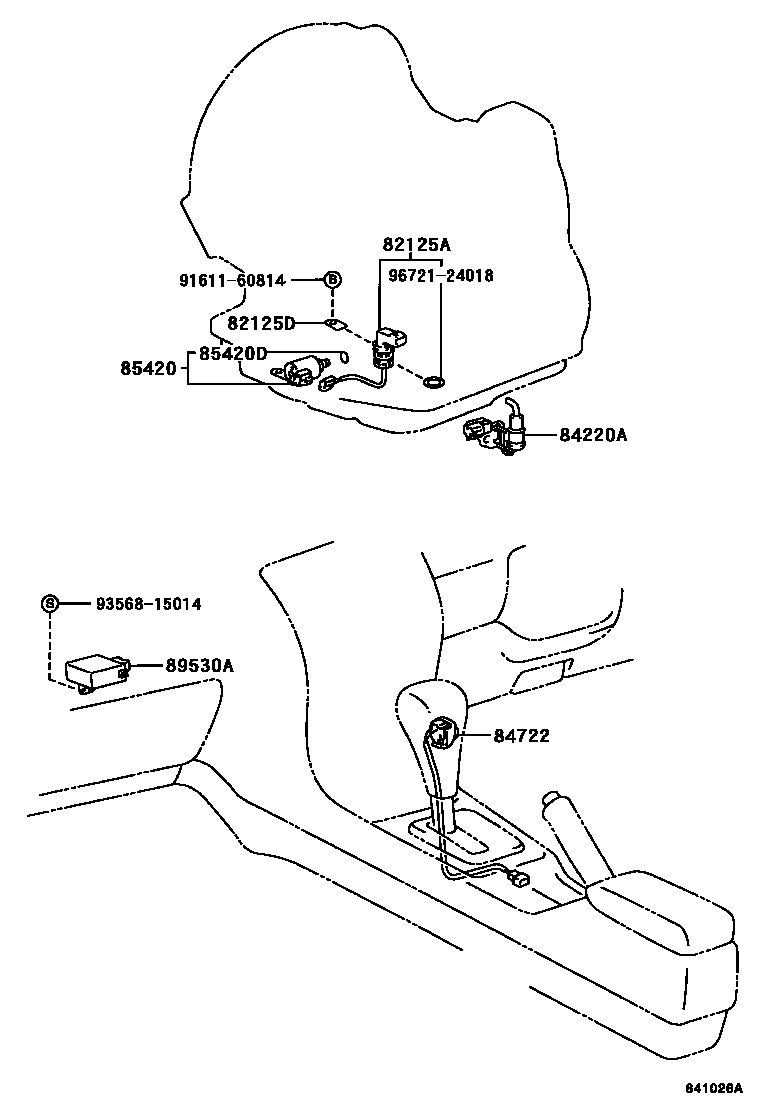

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
82125AWIRE, TRANSMISSION
82125DPLATE, TRANSMISSION WIRE LOCK
84220ASWITCH ASSY, TRANSMISSION POSITION INDICATOR
84722SWITCH, TRANSMISSION CONTROL
85420SOLENOID ASSY, TRANSMISSION
NO.1
NO.2
NO.3
85420DRING, O (FOR TRANSMISSION SOLENOID)
89530ACOMPUTER ASSY, TRANSMISSION CONTROL
9161160814
main91611-60814
9356815014
main93568-15014
9672124018
main96721-24018
10 parts on this diagram · 4 diagrams in section
