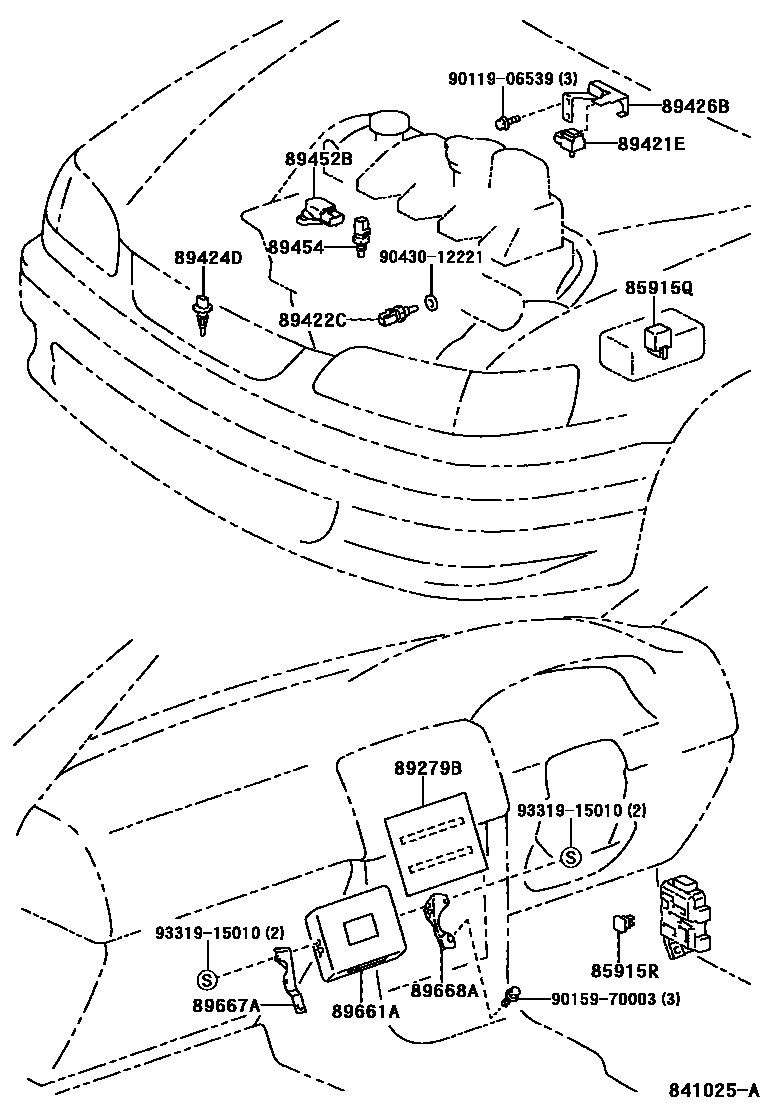

ELECTRONIC CONTROLED DIESEL (ECD)

0001 1 0002 1

85915QRELAY, COMPUTER (FOR DIESEL)

main90987-02012iCE110199704-199910

85915RRELAY ASSY, CIRCUIT OPENING (FOR DIESEL)

main90080-87013iCDE110200008-200109

BOSCH

sub90080-87021

main90987-02012iCDE110200008-200109

DENSO

main90987-02012iCE110199704-199910

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-13020iCDE110199704-200109

89421ESENSOR, VACUUM

main89420-12110iCE110199704-199910

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-16010iCDE110200008-200109

DENSO

main89422-22030iCDE110200008-200109

SAAMOSTA

main89422-35010iCE110199704-199910

89424DSENSOR, INLET AIR TEMPERATURE

main89424-12010iCE110199704-199910

89426BBRACKET, VACUUM SENSOR

main89426-12150iCE110199704-199910

89452BSENSOR, THROTTLE POSITION

main89452-28090iCE110199704-199910

sub89452-22090

89454SENSOR, FUEL TEMPERATURE

main89454-60010iCDE110200008-200109

89661ACOMPUTER, ENGINE CONTROL

main89661-1A770iCE110199704-199910

main89666-12320iCDE110200008-200109

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-12130iCDE110199704-200109

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-12060iCDE110199704-200109

9011906539

main90119-06539

9015970003

main90159-70003

9043012221

main90430-12221

9331915010

main93319-15010

16 parts on this diagram · 2 diagrams in section
