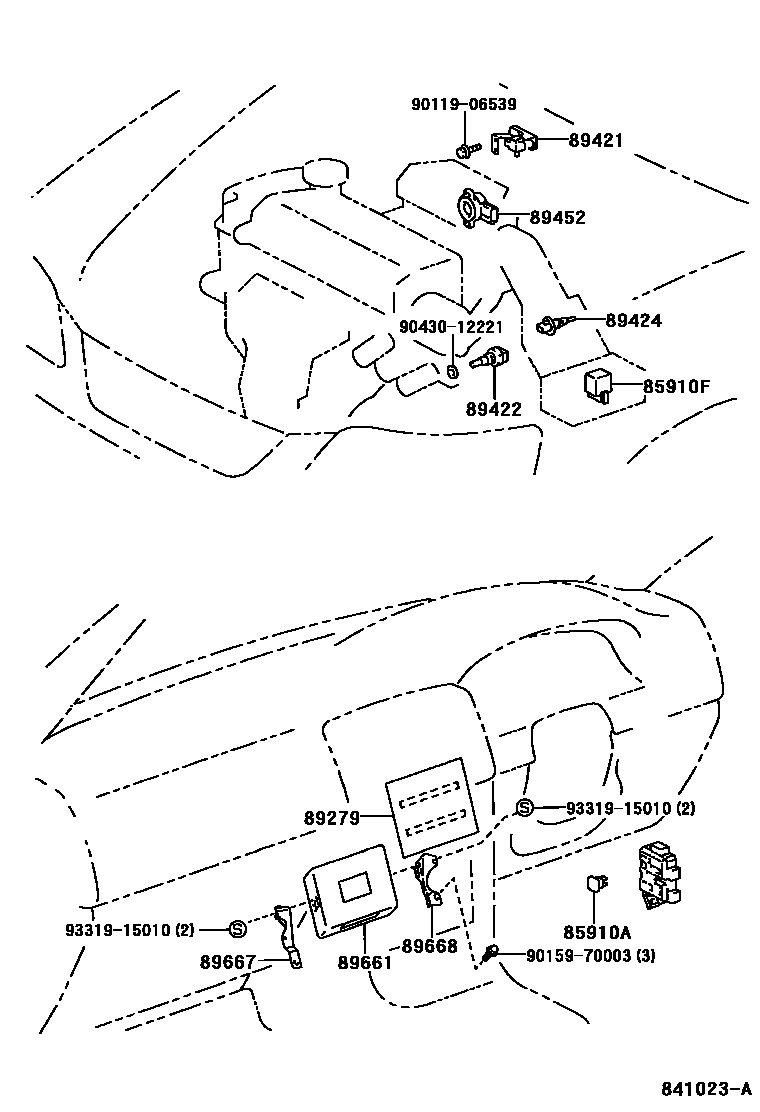

ELECTRONIC FUEL INJECTION SYSTEM
89279COVER, ENGINE CONTROL COMPUTER
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
P/N LABEL=8942002020
P/N LABEL=8942012070
P/N LABEL=8942012190
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
MARK 89422-16010*369
MARK 89422-22030*369
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89661COMPUTER, ENGINE CONTROL
W(TIRE SIZE 185/65R14)
sub89661-02661
sub89661-02662
sub89661-02663
sub89661-02664
LEADED GASOLINE SPEC
LEADED GASOLINE SPEC
LEADED GASOLINE SPEC & W(TIRE SIZE 185/65R14)
sub89661-0W131
sub89661-0W132
sub89661-0W133
sub89661-0W134
W(TIRE SIZE 185/65R14)
LEADED GASOLINE SPEC
LEADED GASOLINE SPEC
LEADED GASOLINE SPEC & W(TIRE SIZE 185/65R14)
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906539
main90119-06539
9015970003
main90159-70003
9043012221
main90430-12221
9331915010
main93319-15010
14 parts on this diagram · 3 diagrams in section
